15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable

15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable
15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable

Large Image :  15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005
Model Number: MV overhead insulated Cable SAC cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: Negotiable
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 80Km/Month

15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable

Description
Name: 11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable Structure: AL / SC / XLPE / HDPE
Conductor Material: Aluminum Conductor Screen: Semi-conductive Compound
Insulation Material: XLPE Outer Sheath Color: HDPE Black
Application: Overhead Transmission Use Quality: Confirm To IEC60502-2
High Light:

MV Aerial Spaced Cable

,

15kv Aerial Spaced Cable

,

15kv spaced aerial cable

MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable



Description of MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable



Construction: AL/SC/XLPE/HDPE
(1) Conductor: Aluminium (class 2, compacted circular)
(2) Conductor screen: Semi-conductive compound
(3) Insulation: XLPE
(4) Outer sheath: HDPE

 Cable identification:
- Conductor screen: black color
- Insulation: Natural color of XLPE
- Outer sheath: Black


Application

– For used in primary aerial cable on pole and steel tower

MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable Classification

15kV – Maximum Conductor Temperature: 90˙

– Maximum Voltage (Phase to Phase) Rating: 15,000V

– AC Test Voltage: 27,000V/5min



MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable application:
For used in primary aerial cable on pole.




Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA





MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable with reference to ICEA S-66-524 / MEA



Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
35 6 6.9 1.91 1.91 16.0 0.868 1,820 151 232
50 6 8.0 1.91 1.91 17.5 0.641 1,612 187 291
70 12 9.8 1.91 1.91 19.0 0.443 1,445 231 358
95 15 11.4 1.91 1.91 21.0 0.320 1,284 281 451
120 15 12.9 1.91 1.91 22.5 0.253 1,152 324 552
150 15 14.1 1.91 1.91 24.0 0.206 1,070 375 639
185 30 15.8 1.91 1.91 25.5 0.164 980 433 763
240 30 18.3 1.91 1.91 28.0 0.125 874 525 953

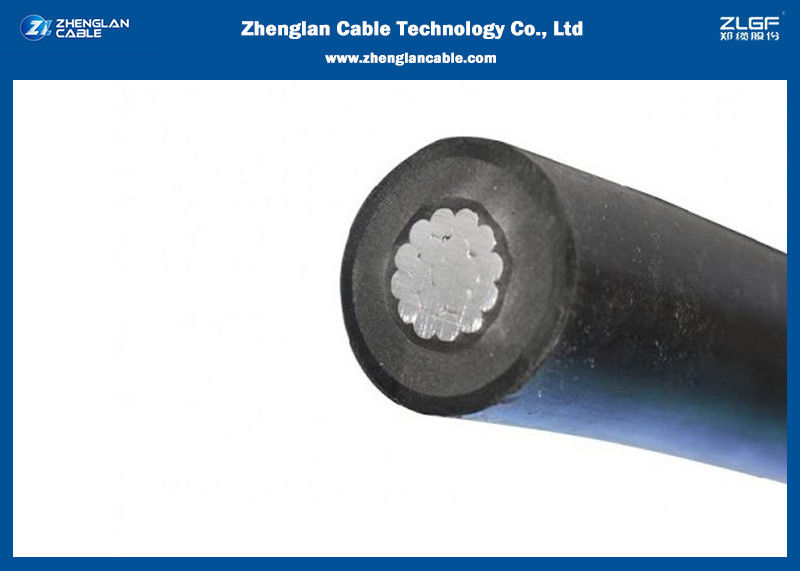

MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable images


15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable 0

15kv AL /SC / XLPE / HDPE SAC MV Aerial Spaced Cable 1



MV Aerial Spaced Cable 15kv AL /SC / XLPE / HDPE SAC cable packages

overhead insulated cable packages
