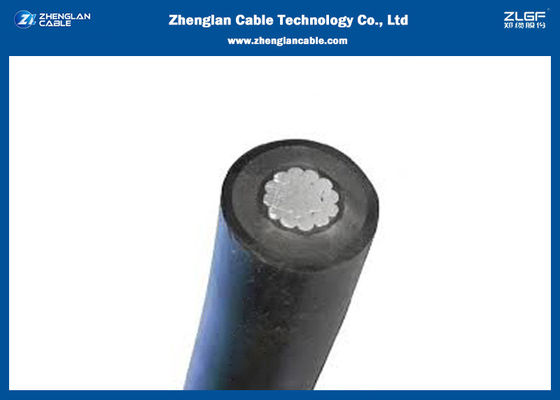

Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable

Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable
Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable

Large Image :  Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005
Model Number: MV overhead insulated Cable SAC cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: Negotiable
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 80Km/Month

Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable

Description
Name: 11kv SAC Cable Overhead Insulated MV Cable Aerial Spaced Cable Structure: AL / SC / XLPE / HDPE
Conductor Material: Aluminum Conductor Screen: Black Semi-conductive Compound
Insulation Material: Natural XLPE Outer Sheath Color: HDPE Black
Application: Overhead Transmission Use Quality: Confirm To IEC60502-2
High Light:

35kv Spaced Aerial Cable

,

MEA Spaced Aerial Cable

,

ICEA S-66-524 abc power cable

ICEA S-66-524 / MEA 35kv spaced aerial cable single core xlpe colvered cable​



Description of ICEA S-66-524 / MEA 25kv spaced aerial cable single core xlpe colvered cable



Construction: AL/SC/XLPE/HDPE
(1) Conductor: Aluminium (class 2, compacted circular)
(2) Conductor screen: Semi-conductive compound
(3) Insulation: XLPE
(4) Outer sheath: HDPE

 Cable identification:
- Conductor screen: black color
- Insulation: Natural color of XLPE
- Outer sheath: Black


Application

– For used in primary aerial cable on pole and steel tower

ICEA S-66-524 / MEA 35kv spaced aerial cable single core xlpe colvered cable Classification

35kV – Maximum Conductor Temperature: 90˙

– Maximum Voltage (Phase to Phase) Rating: 35,000V

– AC Test Voltage: 49,000V/5min



ICEA S-66-524 / MEA 35kv spaced aerial cable single core xlpe colvered cable application:
For used in primary aerial cable on pole.




Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA





ICEA S-66-524 / MEA 35kv spaced aerial cable single core xlpe colvered cable with reference to ICEA S-66-524 / MEA


Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
mm² No. mm mm mm mm Ω / km MΩ-km A kg / km
50 6 8.0 4.45 3.18 25.5 0.641 2,606 184 517
70 12 9.8 4.45 3.18 27.5 0.443 2,375 227 599
95 15 11.4 4.45 3.18 29.0 0.320 2,144 276 711
120 15 12.9 4.45 3.18 31.0 0.253 1,952 318 831
150 15 14.1 4.45 3.18 32.5 0.206 1,830 367 933
185 30 15.8 4.45 3.18 33.5 0.164 1,694 425 1,073
240 30 18.3 4.45 3.18 36.5 0.125 1,529 515 1,293




ICEA S-66-524 / MEA 35kv spaced aerial cable single core xlpe colvered cable images

Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable 0

Single Core ICEA S-66-524 / MEA 35kv Spaced Aerial Cable 1



ICEA S-66-524 / MEA 35kv spaced aerial cable single core xlpe colvered cable packages

overhead insulated cable packages
