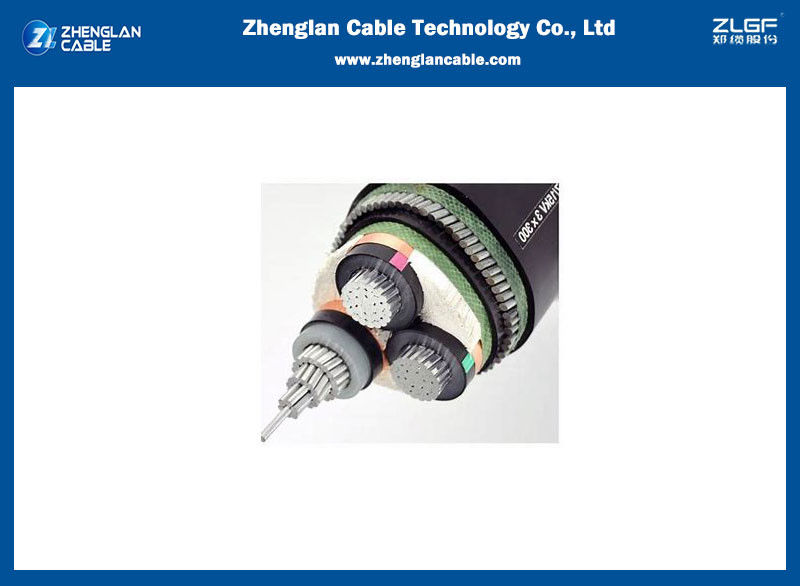

3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable

3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable
3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable
3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable 3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable 3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable 3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable

Large Image :  3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO, CE, CCC
Model Number: Armoured Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: Wooden drum, iron wood drum,as customer's request
Delivery Time: 12 days
Payment Terms: T/T, L/C
Supply Ability: 12,000 KM/Year

3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable

Description
Material: OFC Out Sheath Color: Black Or Customized
Core: 3 Cable Mark: As Customer Required
Characted: Armoured Armour: SWA
Voltage: 19/33kV Insulation: XLPE
Screen: Copper Tape Jacket: PE Or PVC Or LSZH
High Light:

SWA Armour MV Electrical Cable

,

3 x 185mm2 MV Electrical Cable

,

3 x 185mm2 medium voltage cable

3 x 185mm2 XLPE Insulated Cable SWA Armour MV Electrical Cable


APPLICATIONS:

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.



Standard: IEC60502, BS6346, VDE, AS/NZS,etc

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 low votage

1 or 3 core medium voltage

Construction:

Conductor: Solid or stranded copper/aluminum

Insulation: Cross-linked polyethylene (XLPE)

Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable 0
Cable Parameters:
8.7/15KV Medium Voltage Single Core Power Cable (Amoured)

NO. Cross- Section Area Copper Wire Screen Area* NO. Sheath Thickness NO. Overall Diameter Approx. Weight
N2XSY/ N2XSH CU N2XS2Y CU N2XS (F) 2Y CU
mm2 mm mm mm kg / km kg / km kg / km
25 16 1.8 29 1000 900 1100
35 16 1.8 30 1100 1050 1200
50 16 1.8 31 1250 1150 1350
70 16 1.9 33 1500 1350 1600
95 16 1.9 34 1800 1650 1900
120 16 2.0 35 2150 1900 2250
150 25 2.0 37 2400 2250 2500
185 25 2.1 38 2800 2600 2900
240 25 2.1 42 3400 3200 3500
300 25 2.2 43 4000 3800 4150
400 35 2.3 44 4950 4750 5100
500 35 2.4 46 6050 5800 6200
630 35 2.5 50 8150 8050 8300
800 35 2.6 53 9600 9450 9800





3 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable 13 x 185mm2 XLPE Insulated SWA Armour MV Electrical Cable 2

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
