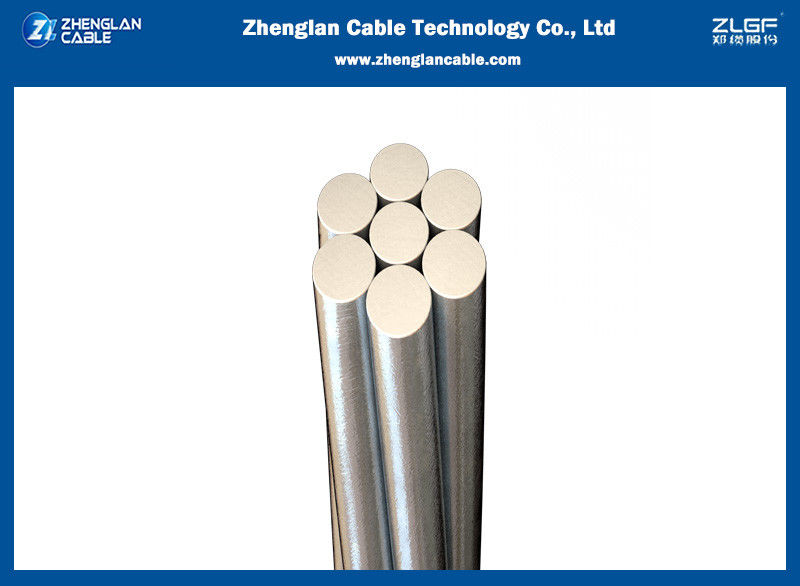

AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182

AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182
AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182
AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182 AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182 AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182

Large Image :  AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: AAAC
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15 days
Payment Terms: T/T,L/C
Supply Ability: 82,000 KM/Year

AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182

Description
Material: Aluminium Alloy Out Sheath Color: None
Chararacter: Bare Conductor Nominal Area: 1.5sqmm-1000sqmm
Name: AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182 ASTM B398 Standard: IEC61089
High Light:

70sqmm All Aluminum Alloy Conductor

,

BS50182 All Aluminum Alloy Conductor

,

70sqmm AAAC Conductor

AAAC 70sqmm all aluminum alloy conductor IEC60189 BS50182 ASTM B398



APPLICATION: Used for overhead power lines, ground wires, steel stay wires….

Standard: TCVN 5064, IEC, ASTM, BS, DIN, AS …



CONSTRUCTION

All Aluminium Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires (6201-T81)available in single layer and multi-layer constructions. As compared to a conventional ACSR conductor, the lighter weight,comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.



ELECTRICAL PROPERTIES

density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
resistivity@20°C 0.0326 Ohms mm2/m
linear Expansivity

23 x10-6 (°C)



SERVICE CONDITIONS

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182 0



CONSTRUCTION PARAMETERS

• IEC 60189

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
  mm2 No.x mm mm Kg/Km KN Ω/Km A
16 18.4 7/1.83 5.49 50.4 5.43 1.7896 86
25 28.8 7/2.29 6.87 78.7 8.49 1.1453 113
40 46 7/2.89 8.67 125.9 13.58 0.7158 151
63 72.5 7/3.63 10.89 198.3 21.39 0.4545 200
100 115 19/2.78 13.9 316.3 33.95 0.2877 266
125 144 19/3.10 15.5 395.4 42.44 0.2302 305
160 184 19/3.51 17.55 506.1 54.32 0.1798 355
200 230 19/3.93 19.65 632.7 67.91 0.1439 407
250 288 19/4.39 21.95 790.8 84.88 0.1151 466
315 363 37/3.53 24.71 998.9 106.95 0.0916 535
400 460 37/3.98 27.86 1268.4 135.81 0.0721 618
450 518 37/4.22 29.54 1426.9 152.79 0.0641 663
500 575 37/4.45 31.15 1585.5 169.76 0.0577 706
560 645 61/3.67 33.03 1778.4 190.14 0.0516 755
630 725 61/3.89 35.01 2000.7 213.9 0.0458 809
710 817 61/4.13 37.17 2254.8 241.07 0.0407 866
800 921 61/4.38 39.42 2540.6 271.62 0.0361 928



AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182 1



AAAC 70sqmm All Aluminum Alloy Conductor IEC60189 BS50182 2
