Triple Layer 25KV 1Cx185qmm Spaced Aerial Cable AAC / XLPE / HDPE

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005

Model Number: 25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE

Payment & Shipping Terms

Minimum Order Quantity: 1000meters

Price: Negotiable

Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 80Km/Month

Get Best Price
Highlight:

1Cx185qmm Spaced Aerial Cable

,

25KV HDPE Spaced Aerial Cable

,

1Cx185qmm overhead service wire

Name:
25KV 1Cx185qmm Aerial Spaced Cable AAC / XLPE / HDPE
Structure:
AAC / XLPE / HDPE
Conductor Material:
Aluminum
Insulation Material:
XLPE
Outer Sheath Color:
HDPE
Application:
Overhead Transmission Use
Quality:
Confirm To IEC60502-2
Standard:
ISO 9001:2015
Name:
25KV 1Cx185qmm Aerial Spaced Cable AAC / XLPE / HDPE
Structure:
AAC / XLPE / HDPE
Conductor Material:
Aluminum
Insulation Material:
XLPE
Outer Sheath Color:
HDPE
Application:
Overhead Transmission Use
Quality:
Confirm To IEC60502-2
Standard:
ISO 9001:2015
Triple Layer 25KV 1Cx185qmm Spaced Aerial Cable AAC / XLPE / HDPE

25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE



Description of 25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE



Construction: AAC/SC/XLPE/HDPE
(1) Conductor: Aluminium (class 2, compacted circular)
(2) Conductor screen: Semi-conductive compound
(3) Insulation: XLPE
(4) Outer sheath: HDPE

 Cable identification:
- Insulation: Natural or black color of XLPE
- Outer sheath: Black

25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE​ Characteristics:
- Rated voltage: 8.7/15kV
- Max. conductor temperature in normal use: 90oC
- Min. bend radius: 15 x D (D: overall diameter of cable)



APPLICATION of 25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE:
For used in primary aerial cable on pole.




Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA





25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE​ technical parameters with reference to IEC60502

Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
mm² No. mm mm mm mm Ω / km MΩ-km A kg / km
35 6 6.9 3.18 3.18 21.0 0.868 2,580 149 363
50 6 8.0 3.18 3.18 22.0 0.641 2,314 186 432
70 12 9.8 3.18 3.18 24.5 0.443 2,100 229 509
95 15 11.4 3.18 3.18 26.0 0.320 1,887 279 615
120 15 12.9 3.18 3.18 27.0 0.253 1,712 321 729
150 15 14.1 3.18 3.18 29.5 0.206 1,600 371 826
185 30 15.8 3.18 3.18 31.0 0.164 1,477 429 959
240 30 18.3 3.18 3.18 33.5 0.125 1,328 520 1,170





25KV 1Cx185qmm aerial spaced cable AAC / XLPE / HDPE​ images

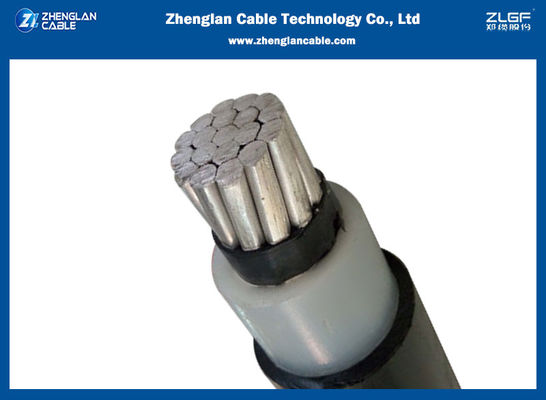

Triple Layer 25KV 1Cx185qmm Spaced Aerial Cable AAC / XLPE / HDPE 0

Triple Layer 25KV 1Cx185qmm Spaced Aerial Cable AAC / XLPE / HDPE 1



XLPE insulated HDPE sheathed 15KV 1Cx185sqmm aerial spaced cable packages

overhead insulated cable packages

SAC cable package
