1kv XLPE Insulated LSOH Flame Retardant Cable 4x16sqmm

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Price: 0.5USD-100USD/m

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 15days

Payment Terms: L/C, T/T,

Supply Ability: 10000m/day

Get Best Price
High Light:

1kv LSOH Flame Retardant Cable

,

4x16sqmm Flame Retardant Cable

,

XLPE LSOH fire resistant cable

Material:
CU
Insulation:
XLPE
Sheath:
Pvc
Name:
1kv XLPE Insulated LSOH Fire Resistant Flame Retardant Cable 4x16sqmm
Out Sheath Color:
Black Or Customized
Cable Length:
As Per Requirement
Voltage:
0.6/1kv
Standard:
IEC60502-1
Material:
CU
Insulation:
XLPE
Sheath:
Pvc
Name:
1kv XLPE Insulated LSOH Fire Resistant Flame Retardant Cable 4x16sqmm
Out Sheath Color:
Black Or Customized
Cable Length:
As Per Requirement
Voltage:
0.6/1kv
Standard:
IEC60502-1
1kv XLPE Insulated LSOH Flame Retardant Cable 4x16sqmm

1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm​​



Application:

1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.



Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.



Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape



Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm​ Parameters:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² (3)mm (1)mm (3)mm (1)mm mm mm Kg/Km
3x 16/10 5.0 4.0 0.7 0.7 1.8 20.0 825
3x 25/16 6.3 5.0 0.9 0.7 1.8 22.8 1235
3x 35/16 7.4 5.0 0.9 0.7 1.8 24.8 1565
3x 50/25 8.8 6.3 1.0 0.9 1.8 28.5 2220
3x 70/35 10.6 7.4 1.1 0.9 1.9 32.0 2925
3x 95/50 12.4 8.8 1.1 1 2.1 37.5 3525
3x120/70 14.0 10.6 1.2 1.1 2.2 41.5 4940
3x150/70 15.5 10.6 1.4 1.1 2.3 45.0 6250
3x185/95 17.4 12.4 1.6 1.1 2.5 50.5 7450
3x240/120 20.3 14.0 1.7 1.2 2.6 56.0 9500
3x300/150 22.7 15.5 1.8 1.4 2.8 64.5 12100
3x400/185 25.4 17.4 2.0 1.6 3.1 70.0 18900

Four cores(unarmoured)

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4x1.5 1.38 0.7 1.8 11 170
4x2.5 1.76 0.7 1.8 12 230
4x4 2.25 0.7 1.8 14 305
4x6 2.76 0.7 1.8 15.5 400
4x10 4.0 0.7 1.8 18 585
4x16 5.0 0.7 1.8 20 835
4x25 6.3 0.9 1.8 22 1210
4x35 7.4 0.9 1.8 24.5 1670
4x50 8.8 1.0 1.8 26.5 2250
4x70 10.6 1.1 2.0 32 3015
4x95 12.4 1.1 2.1 36.5 4085
4x120 14.0 1.2 2.3 40.5 5320
4x150 15.5 1.4 2.4 44.5 44.5 6510
4x185 17.4 1.6 2.6 51 8050
4x240 20.3 1.7 2.8 58.5 58.5 10520
4x300 22.7 1.8 3 64.5 13130
4x400 25.4 2.0 3.3 73.5 16850



1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm​​​​ ​images

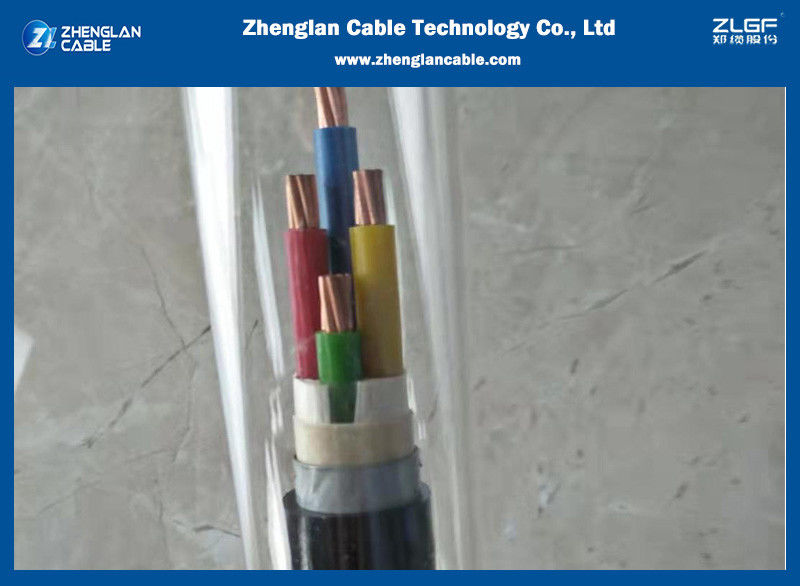

1kv XLPE Insulated LSOH Flame Retardant Cable 4x16sqmm 0





1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm

1kv XLPE Insulated LSOH Flame Retardant Cable 4x16sqmm 2



1kv XLPE insulated LSOH fire resistant flame retardant cable 4x16sqmm​​ Test equipment

1kv XLPE Insulated LSOH Flame Retardant Cable 4x16sqmm 3
