0.6/1KV Low Voltage JK Wire / ABC Bundled Cable/Overhead Cable with 2 Cores XLPE Insulated and one core Bare
|Name:||15/25kv Aerial Insulated Cable Two Layer IEC60502-2 AAC/SC/XLPE||Structure:||AL/SC/XLPE|
|Conductor Material:||Aluminum||Insulation Material:||XLPE/ PVC|
|Application:||Overhead Transmission Use||Quality:||Confirm To IEC60502-2|
|Standard:||ISO 9001:2015||Port Of Shipment:||Qingdao /Shanghai|
15/25kv Aluminum Aerial Insulated Cable,
IEC60502-2 Aerial Insulated Cable,
15/25kv Aluminum aerial bundled cable
15/25kv Aluminum Aerial Insulated Cable IEC60502-2 AAC/SC/XLPE
Description of 15/25kv aerial insulated cable two layer IEC60502-2 AAC/SC/XLPE
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA
15/25kv aerial insulated cable two layer IEC60502-2 AAC/SC/XLPE with reference to IEC60502-2
|Nominal cross sectional area||Minimum number of wire||Diameter of conductor||Thickness of conductor shield &insulation||Overall diameter||Maximum DC conductor resistance at 20°C||Minimum insulation resistance|
|mm²||No.||mm||mm||mm||Ω / km||MΩ-km|

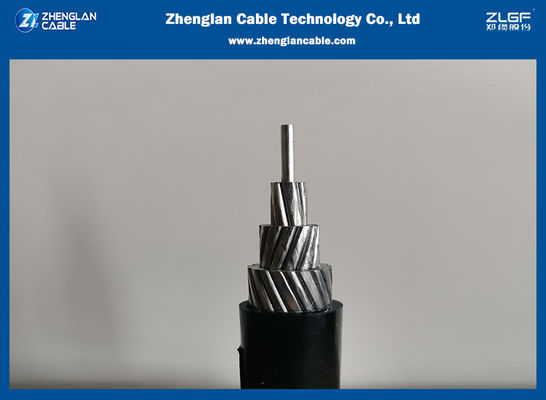

15/25kv aerial insulated cable two layer IEC60502-2 AAC/SC/XLPE images
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.
Our main products are
overhead power transmission use bare conductor(ACSR, AAC, etc)
1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
450/750V instrument use control cable (shielded or unshielded)
300/300V, 300/500V, 450/750V fixed installation use building wire
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
