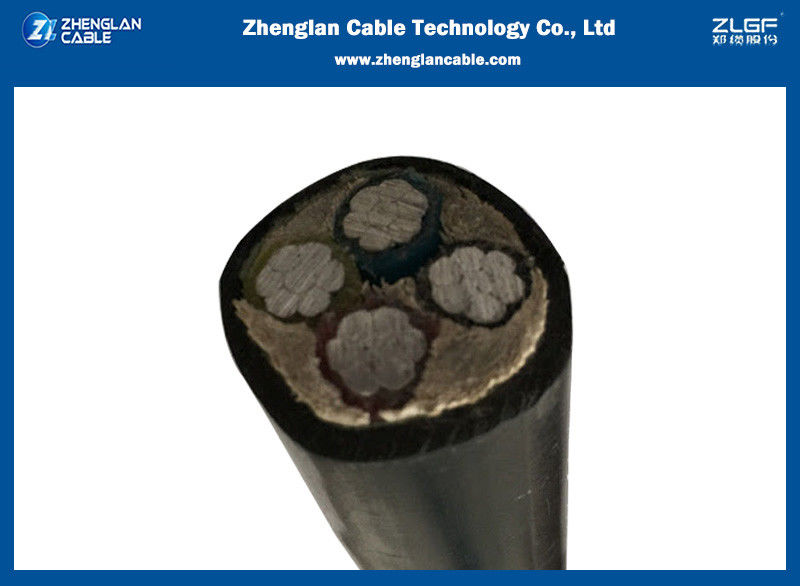

4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1

4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1
4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1
4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1 4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1 4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1

Large Image :  4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: 0.3USD-2USD/m
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15days
Payment Terms: L/C, T/T,
Supply Ability: 10000m/day

4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1

Description
Material: AL Insulation: Pvc
Sheath: Pvc Core: 4core
Out Sheath Color: Black Or Customized Cable Length: As Per Requirement
Voltage: 0.6/1kv Standard: IEC60502-1
High Light:

4x25sqmm Aluminium Armored Cable

,

IEC60502-1 Aluminium Armored Cable

,

4x25sqmm aluminum bx cable

1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1



Application:

1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706-2008

Other standards such as BS7870,DIN and ICEA upon request



Construction:

Conductors: Copper , round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.



Core colours

without yellow-green core

2-cores: brown, blue

3-cores: brown, black, grey

4-cores: brown, black, grey, blue


with yellow-green core

3-cores: brown, blue, yellow-green

4-cores: brown, black, grey, yellow-green

5-cores: brown, black, grey, yellow-green, blue

Identification method: master batch



Insulation:

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.



Outer Sheath:

Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths:

1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1  can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1 ​Parameters:



Nominal

Cross

Section

Diameter of Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4x1.5 1.38 0.8 1.8 13.5 265
4x2.5 1.76 0.8 1.8 14.5 325
4x4 2.25 1.0 1.8 16.5 450
4x6 2.76 1.0 1.8 18.0 560
4x10 4.0 1.0 1.8 20.0 770
4x16 5.0 1 1.8 23 .0 1080
4x25 6.3 1.2 1.8 26.5 1580
4x35 7.4 1.2 1.8 29.5 2070
4x50 8.8 1.4 1.8 34.0 2680
4x70 10.6 1.4 2.0 38.0 3760
4x95 12.4 1.6 2.1 44.0 4960
4x120 14.0 1.8 2.3 48.0 6110
4x150 15.5 1.8 2.4 53.0 7450
4x185 17.4 2.0 2.6 58.0 9220
4x240 20.3 2.2 2.8 65.0 11900
4x300 22.7 2.4 3.0 72.0 14730
4x400 25.4 2.6 3.3 81.0 18830



1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1 ​​ images

4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1 0





4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1 1

4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1 2



1.1kv 4x25sqmm al-xlpe-pvc armored aluminum cable as per IEC60502-1 ​Test equipment

4x25sqmm Al Xlpe Pvc aluminium armored cable As Per IEC60502-1 3





Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
