Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: bare all aluminum conductor AAC Petunia 380sqmm (37/3.62mm) ASTMB 231/231M
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Supply Ability: 20,000 ton/year
Material: |
Aluminium |
Size: |
380sqmm |
Quality: |
100% IEC Standards Test |
Standard:: |
ASTM-B231/231M |
Brand: |
Zhenglan Cable |
Stranding: |
37/3.62mm |
Material: |
Aluminium |
Size: |
380sqmm |
Quality: |
100% IEC Standards Test |
Standard:: |
ASTM-B231/231M |
Brand: |
Zhenglan Cable |
Stranding: |
37/3.62mm |

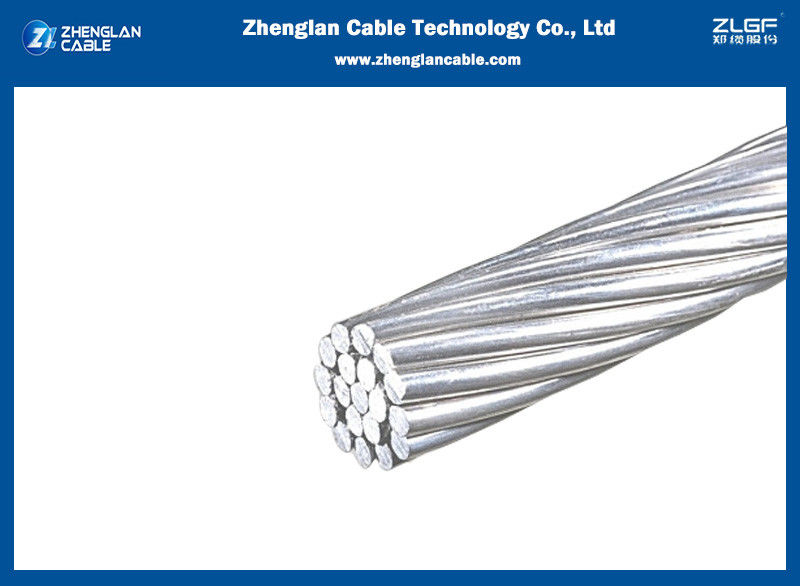

bare all aluminum conductor AAC Petunia 380sqmm (37/3.62mm) ASTMB 231/231M
AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Rated Voltage: 35kv/110kv/220kv/500kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
STANDARD
Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards
bare all aluminum conductor AAC Petunia 380sqmm (37/3.62mm) ASTMB 231/231M Application:Concentric lay stranded Aluminium Conductor (AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized. All aluminium conductors are made up of one or more strands of aluminium wire dep.
ASTM B231/B231M
Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
AWG&MCM | mm2 | No.×mm | mm | kg/km | KN | Ω/Km | A | |
Peachbell | 6 | 13.3 | 7/1.56 | 4.68 | 36.6 | 2.53 | 2.1477 | 75 |
Rose | 4 | 21.1 | 7/1.96 | 5.88 | 58.2 | 3.91 | 1.3606 | 99 |
Iris | 2 | 33.6 | 7/2.47 | 7.41 | 92.6 | 5.99 | 0.8567 | 132 |
Pansy | 1 | 42.4 | 7/2.78 | 8.34 | 116.6 | 7.3 | 0.6763 | 153 |
1/0.0 | 53.5 | 7/3.12 | 9.36 | 147.2 | 8.84 | 0.5369 | 176 | |
Aster | 2/0.0 | 67.4 | 7/3.50 | 10.5 | 185.7 | 11.1 | 0.4267 | 203 |
Phlox | 3/0.0 | 85 | 7/3.93 | 11.79 | 233.9 | 13.5 | 0.3384 | 234 |
Oxlip | 4/0.0 | 107.2 | 7/4.42 | 13.26 | 295.2 | 17 | 0.2675 | 270 |
Valerian | 250 | 126.7 | 19/2.91 | 14.55 | 348.6 | 20.7 | 0.2274 | 299 |
Sneezewort | 250 | 126.7 | 7/4.80 | 14.4 | 348.8 | 20.1 | 0.2269 | 299 |
Laurel | 266.8 | 135.2 | 19/3.01 | 15.05 | 372.2 | 22.1 | 0.2125 | 312 |
Daisy | 266.8 | 135.2 | 7/4.96 | 14.88 | 372.3 | 21.4 | 0.2125 | 311 |
Peony | 300 | 152 | 19/3.19 | 15.95 | 418.3 | 24.3 | 0.1892 | 335 |
Tulip | 336.4 | 170.5 | 19/3.38 | 16.9 | 469.5 | 27.3 | 0.1686 | 359 |
Daffodil | 350 | 177.3 | 19/3.45 | 17.25 | 487.9 | 28.4 | 0.1618 | 369 |
Canna | 397.5 | 201.4 | 19/3.67 | 18.35 | 554.9 | 31.6 | 0.143 | 397 |
Goldentuft | 450 | 228 | 19/3.91 | 19.55 | 627.6 | 35 | 0.126 | 429 |
Syringa | 477 | 241.7 | 37/2.88 | 20.16 | 664.8 | 38.6 | 0.1192 | 444 |
Cosmos | 477 | 241.7 | 19/4.02 | 20.1 | 664.8 | 37 | 0.1192 | 444 |
Hyacinth | 500 | 253.3 | 37/2.95 | 20.65 | 696.8 | 40.5 | 0.1136 | 458 |
Zinnia | 500 | 253.3 | 19/4.12 | 20.6 | 697.1 | 38.9 | 0.1134 | 458 |
Dahlia | 556.5 | 282 | 19/4.35 | 21.75 | 775.8 | 43.3 | 0.1018 | 489 |
Mistletoe | 556.5 | 282 | 37/3.12 | 21.84 | 775.7 | 44.3 | 0.1016 | 490 |
Meadowsweet | 600 | 304 | 37/3.23 | 22.61 | 836.3 | 47.5 | 0.0948 | 511 |
Orchid | 636 | 322.3 | 37/3.33 | 23.31 | 886.9 | 50.4 | 0.0892 | 530 |
Heuchera | 650 | 329.4 | 37/3.37 | 23.59 | 907.4 | 51.7 | 0.0871 | 538 |
Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
AWG&MCM | mm2 | No.×mm | mm | kg/km | KN | Ω/Km | A | |
Flag | 700 | 354.7 | 61/2.72 | 24.48 | 975.8 | 57.1 | 0.0811 | 561 |
Varbena | 700 | 354.7 | 37/3.49 | 24.43 | 975.7 | 55.4 | 0.0812 | 561 |
Nasturtium | 715.5 | 362.6 | 61/2.75 | 24.75 | 998.5 | 58.4 | 0.0793 | 569 |
Violet | 715.5 | 362.6 | 37/3.53 | 24.71 | 998.5 | 56.7 | 0.0794 | 568 |
Cattail | 750 | 380 | 61/2.82 | 25.38 | 1046 | 60.3 | 0.0754 | 587 |
Petunia | 750 | 380 | 37/3.62 | 25.34 | 1046 | 58.6 | 0.0755 | 586 |
Lilac | 795 | 402.8 | 61/2.90 | 26.1 | 1110 | 63.8 | 0.0713 | 607 |
Arbutus | 795 | 402.8 | 37/3.72 | 26.04 | 1109 | 61.8 | 0.0715 | 605 |
Snapdragon | 900 | 456 | 61/3.09 | 27.81 | 1256 | 70.8 | 0.0628 | 654 |
Cockscomb | 900 | 456 | 37/3.96 | 27.72 | 1256 | 68.4 | 0.0631 | 652 |
Goldenrod | 954 | 483.4 | 61/3.18 | 28.62 | 1331 | 75 | 0.0593 | 677 |
Magnolia | 954 | 483.4 | 37/4.08 | 28.56 | 1331 | 72.6 | 0.0594 | 676 |
Camellia | 1000 | 506.7 | 61/3.25 | 29.25 | 1394 | 78.3 | 0.0568 | 695 |
Hawkweed | 1000 | 506.7 | 37/4.18 | 29.26 | 1395 | 76.2 | 0.0566 | 696 |
Larkspur | 1033.5 | 523.7 | 61/3.31 | 29.79 | 1442 | 81.3 | 0.0547 | 710 |
Bluebell | 1033.5 | 523.7 | 37/4.25 | 29.75 | 1441 | 78.8 | 0.0547 | 710 |
Marigold | 1113 | 564 | 61/3.43 | 30.87 | 1553 | 87.3 | 0.051 | 740 |
Hawthorn | 1192.5 | 604.2 | 61/3.55 | 31.95 | 1662 | 93.5 | 0.0476 | 771 |
Narsissus | 1272 | 644.5 | 61/3.67 | 33.03 | 1774 | 98.1 | 0.0445 | 802 |
Columbine | 1351 | 694.8 | 61/3.78 | 34.02 | 1884 | 104 | 0.042 | 829 |
Carnation | 1431 | 725.1 | 61/3.89 | 35.01 | 1997 | 108 | 0.0396 | 858 |
Gladiolus | 1510.5 | 765.4 | 61/4.00 | 36 | 2108 | 114 | 0.0375 | 885 |
Coreopsis | 1590 | 805.7 | 61/4.10 | 36.9 | 2216 | 120 | 0.0357 | 911 |
Jassamine | 1750 | 886.7 | 61/4.30 | 38.7 | 2442 | 132 | 0.0324 | 962 |
Cowslip* | 2000 | 1013 | 91/3.77 | 41.47 | 2787 | 153 | 0.0286 | 1032 |
Sagebrush* | 2250 | 1140 | 91/3.99 | 43.89 | 3166 | 167 | 0.0255 | 1099 |
Lupine* | 2500 | 1267 | 91/4.21 | 46.31 | 3519 | 186 | 0.0229 | 1163 |
Bitterrot* | 2750 | 1393 | 91/4.42 | 48.62 | 3872 | 205 | 0.0208 | 1223 |
Trillium* | 3000 | 1520 | 127/3.90 | 50.7 | 4226 | 223 | 0.0193 | 1271 |
Bluebonnet* | 3500 | 1773 | 127/4.22 | 54.86 | 4977 | 261 | 0.0165 | 1373 |
