Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: instrument use 450/750V 8x0.5sqmm pvc insulated pvc sheathed control cable
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Rolls or Customerised
Delivery Time: 5~10 days
Payment Terms: L/C, T/T
Supply Ability: 82,000 KM/Year
Name: |
Control Cables |
Conductor: |
Copper |
Insulation: |
PVC |
Sheath: |
PVC |
Application: |
Instrument Use |
Colour: |
Black |
Core: |
Multiple |
Voltage: |
0.6/1kv |
Name: |
Control Cables |
Conductor: |
Copper |
Insulation: |
PVC |
Sheath: |
PVC |
Application: |
Instrument Use |
Colour: |
Black |
Core: |
Multiple |
Voltage: |
0.6/1kv |

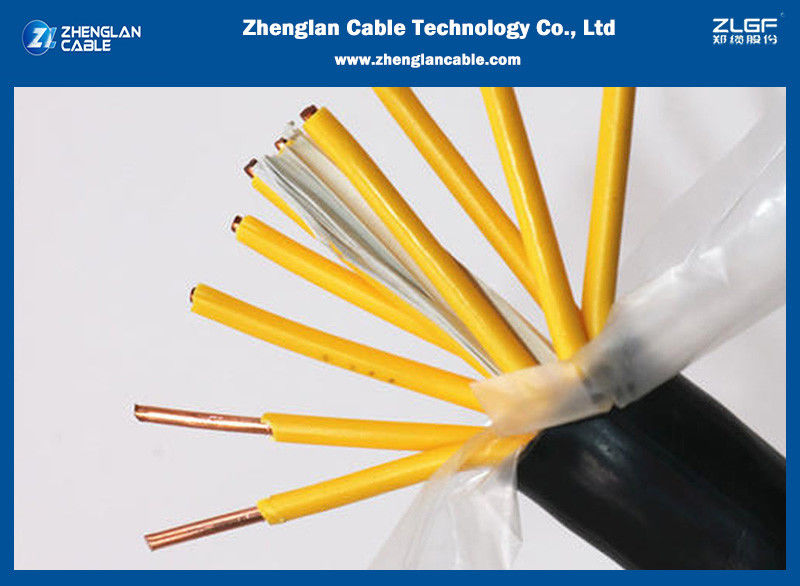

instrument use 450/750V 8x0.5sqmm pvc insulated pvc sheathed control cable introduction
Ø Standards:IEC60227, IEC60502-1
Ø Conductor:Bare stranded copper conductor-class 5 IEC228
Ø Insulation/sheath: PVC or PVC of flame retardant and other property
Ø Voltage rating: 450/750V,600/1000V
Ø Temperature range: 0°C to 70°C, 0-90°C
Ø Application:Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines,
transportation equipment, conveyor and assembly lines as well as in plant construction
Ø Remark:the Application: For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercialcable can be with copper braided screen or steel wire armor and other enhanced feature
Application: For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercial
instrument use 450/750V 8x0.5sqmm pvc insulated pvc sheathed control cable reference parameters
| Cross section (mm2) | Conductor construction (No/mm) | Insulation thickness (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Sheath thickness (mm) | Overall diameter max (mm) | Overall diameter max (mm) | Max.D.C resistance of at 20℃ MΩ/Km |
| 450/750V | 6000/1000V | 450/750V | 6000/1000V | 450/750V | 6000/1000V | |||
| 2X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.3 | 9.3 | 24.5 |
| 2X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 7.6 | 9.6 | 24.5 |
| 2X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 18.1 |
| 2X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 18.1 |
| 2X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 8.6 | 10.2 | 12.1 |
| 2X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 8.9 | 10.5 | 12.1 |
| 2X2.5 | 1/1.78 | 0.7 | 0.8 | 1.2 | 1.8 | 9.8 | 11.0 | 7.41 |
| 2X2.5 | 7/0.68 | 0.7 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 2X4 | 1/2.25 | 0.8 | 1.0 | 1.2 | 1.8 | 10.7 | 12.7 | 4.61 |
| 2X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.3 | 4.61 |
| 2X6 | 1/2.76 | 0.8 | 1.0 | 1.2 | 1.8 | 11.7 | 13.7 | 3.08 |
| 2X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 12.4 | 14.4 | 3.08 |
| 2X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 15.7 | 16.3 | 1.83 |
| 3X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 7.7 | 9.7 | 24.5 |
| 3X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.0 | 24.5 |
| 3X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.0 | 10.1 | 18.1 |
| 3X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 8.4 | 10.4 | 18.1 |
| 3X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.0 | 10.6 | 12.1 |
| 3X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 9.4 | 11.0 | 12.1 |
| 3X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 10.3 | 11.5 | 7.41 |
| 3X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 10.8 | 12.0 | 7.41 |
| 3X4 | 1/2.25 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 13.4 | 4.61 |
| 3X4 | 7/0.85 | 0.8 | 1.0 | 1.2 | 1.8 | 11.9 | 14.0 | 4.61 |
| 3X6 | 1/2.76 | 0.8 | 1.0 | 1.2 | 1.8 | 13.0 | 14.5 | 3.08 |
| 3X6 | 7/1.04 | 0.8 | 1.0 | 1.2 | 1.8 | 13.8 | 15.2 | 3.08 |
| 3X10 | 7/1.35 | 1.0 | 1.0 | 1.2 | 1.8 | 16.6 | 17.2 | 1.83 |
| 4X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.4 | 24.5 |
| 4X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.7 | 24.5 |
| 4X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.8 | 18.1 |
| 4X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.0 | 11.2 | 18.1 |
| 4X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 9.7 | 11.4 | 12.1 |
| 4X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 10.1 | 11.8 | 12.1 |
| 4X2.5 | 1/1.78 | 0.8 | 0.8 | 1.2 | 1.8 | 11.2 | 12.4 | 7.41 |
| 4X2.5 | 7/0.68 | 0.8 | 0.8 | 1.2 | 1.8 | 11.8 | 13.0 | 7.41 |
| 4X4 | 1/2.25 | 0.8 | 1.0 | 1.5 | 1.8 | 12.9 | 14.5 | 4.61 |
| 4X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 13.6 | 15.2 | 4.61 |
| 4X6 | 1/2.76 | 0.8 | 1.0 | 1.5 | 1.8 | 14.1 | 15.7 | 3.08 |
| 4X6 | 7/1.04 | 1.0 | 1.0 | 1.5 | 1.8 | 15.0 | 16.6 | 3.08 |
| 4X10 | 7/1.35 | 1.0 | 1.0 | 1.5 | 1.8 | 18.2 | 18.8 | 1.83 |
| 5X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 8.9 | 11.1 | 24.5 |
| 5X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.2 | 11.5 | 24.5 |
| 5X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 9.3 | 11.6 | 18.1 |
| 5X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 9.7 | 12.0 | 18.1 |
| 5X1.5 | 1/1.38 | 0.7 | 0.8 | 1.2 | 1.8 | 10.5 | 12.2 | 12.1 |
| 5X1.5 | 7/0.52 | 0.7 | 0.8 | 1.2 | 1.8 | 11.0 | 12.7 | 12.1 |
| 5X2.5 | 1/1.78 | 0.8 | 0.8 | 1.5 | 1.8 | 12.7 | 13.3 | 7.41 |
| 5X2.5 | 7/0.68 | 0.8 | 0.8 | 1.5 | 1.8 | 13.4 | 14.0 | 7.41 |
| 5X4 | 1/2.25 | 0.8 | 1.0 | 1.5 | 1.8 | 14.0 | 15.7 | 4.61 |
| 5X4 | 7/0.85 | 0.8 | 1.0 | 1.5 | 1.8 | 14.8 | 16.5 | 4.61 |
| 5X6 | 1/2.76 | 0.8 | 1.0 | 1.5 | 1.8 | 15.4 | 17.1 | 3.08 |
| 5X6 | 7/1.04 | 0.8 | 1.0 | 1.5 | 1.8 | 16.3 | 18.0 | 3.08 |
| 5X10 | 7/1.35 | 1.0 | 1.0 | 1.7 | 1.8 | 20.3 | 20.5 | 1.83 |
| 6X0.75 | 1/0.97 | 0.6 | 0.8 | 1.2 | 1.8 | 9.5 | 11.9 | 24.5 |
| 6X0.75 | 7/0.37 | 0.6 | 0.8 | 1.2 | 1.8 | 9.9 | 12.3 | 24.5 |
| 6X1 | 1/1.13 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.4 | 18.1 |
| 6X1 | 7/0.43 | 0.6 | 0.8 | 1.2 | 1.8 | 10.5 | 12.9 | 18.1 |
Why Choose Zhenglan Cable:
About Zhenglan Cable
Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
