12/20(24)Kv Overhead Insulated Cable Aerial Bundled Cable 3x50+1x50sqmm

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005; CCC

Model Number: 12/20(24)kv aerial bundled cable overhead insulated cable 3x50+1x50sqmm IEC60502-2

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 15,000 KM/Year

Get Best Price
High Light:

12/20KV Overhead Insulated Cable

,

12/24KV Overhead Insulated Cable

,

12/20KV Aerial Bundled Cable

Insulation Material:
XLPE
Conductor Material:
Aluminum, Aluminum Alloy, Acsr
Application:
Overhead Transmission Use
Quality:
100% Test
Standard:
GB/T 12527-2008, IEC60502-1
Structure:
AL/SC/XLPE/SC/CTS/PVC, AL/SC/XLPE/SC/CTS/PE,
Voltage:
12/20(24)KV
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE
Conductor Material:
Aluminum, Aluminum Alloy, Acsr
Application:
Overhead Transmission Use
Quality:
100% Test
Standard:
GB/T 12527-2008, IEC60502-1
Structure:
AL/SC/XLPE/SC/CTS/PVC, AL/SC/XLPE/SC/CTS/PE,
Voltage:
12/20(24)KV
Port:
Qingdao Or Shanghai
12/20(24)Kv Overhead Insulated Cable Aerial Bundled Cable 3x50+1x50sqmm

12/20(24)kv aerial bundled cable overhead insulated cable 3x50+1x50sqmm IEC60502-2 DESCRIPT ION

Circular compacted stranded aluminium conductor, ×LPE insulated, copper tape screened and PVC outer sheathed cable.The three ×LPE insulated and copper tape screened single core cables are bundled around the galvanized steel wires in a right hand lay.



12/20(24)kv aerial bundled cable overhead insulated cable 3x50+1x50sqmm IEC60502-2 CONSTRUCT ION

l  Conductor Phase conductors are circular compacted stranded H68 aluminium to Bs2627.
2 Conductor screen Extruded layer of semi-conductive compound.
3 Insulation ×LPE (cross-linked polyethylene) rated at 91.C.
4 Insulation screen
Non-metallic part: Extruded layer of semi-conductive compound.
Metallic part: Copper tape screen ( SCT ).
5 Colour for core identifcation Red, yellow and blue tapes shall be applied between non metallic and metallic part of insulation
screen.
6 Separator Polypropylene laminated tape.
7 outer sheath PVC type sT2 to IEC 61512 colour black.The outer sheath shall be embossed with fgures l, 2, 3 corresponding
to red, yellow, blue phase.
8support wire The support wire shall comprise a stranded galvanized steel wires
9Assembly The three ×LPE insulated and copper wire screened single core cables are bundled around the galvanized steel steel wires in a right hand (Z) lay.




12/20(24)kv aerial bundled cable overhead insulated cable 3x50+1x50sqmm IEC60502-2 Technical data

Phase conductor

Nominal cross-sectional area mm2 50 70 95 120 150 l85 240
Number of cores   3 3 3 3 3 3 3
Minimum number of wires   6 12 15 15 15 30 30
Nominal diameter of conductor mm 8.l 9.7 11.5 12.9 l4.3 16.1 l8.4
Nominal thickness of ×LPE insulation mm 3.4 3.4 3.4 3.4 3.4 3.4 3.4
Metallic screening approx. thickness of copper tape mm 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Nominal thickness of outer sheath mm 2.3 2.3 2.3 2.3 2.3 2.3 2.3
Nominal diameter over sheathing mm 23.0 24.6 26.3 27.8 29.2 30.9 33.3
Max. dc resistance at 20°C ohm.km 1.64l 1.443 0.320 0.253 0.206 1.l64 0.125
Earth fault current carrying capacity of metallic screen at
-1 second ( 1 Core ) kA 1.57 1.72 l.88 2.01 2.l4 2.30 2.52
-3 seconds ( 1 Core ) kA 0.90 0.99 l.18 1.16 1.23 1.33 l.45

Messenger - Galvanized steel wire

Nominal cross-sectional area mm2 50 50 50 50 50 50 50
Stranding No..mm 7.3.l5 7.3.l5 7.3.l5 7.3.l5 7.3.l5 7.3.l5 7.3.l5
Direction of the outermost layer Right-hand ( Z )
Overall diameter mm 9.45 9.45 9.45 9.45 9.45 9.45 9.45
Minimum breaking load kg 6270 6270 6270 6270 6270 6270 6270

Completed cable

Approx. overall diameter mm 55 59 62 65 67 71 75
Approx. weight of cable kg.km 2541 2891 3300 3660 4141 4541 5290
Packing length m.drum 500 500 500 500 500 500 500

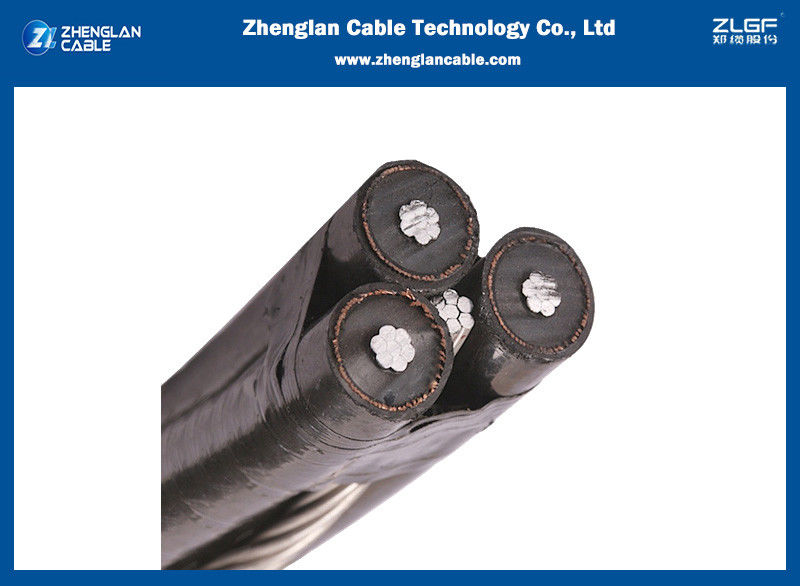

12/20(24)kv aerial bundled cable overhead insulated cable 3x50+1x50sqmm IEC60502-2 image

12/20(24)Kv Overhead Insulated Cable Aerial Bundled Cable 3x50+1x50sqmm 0

12/20(24)Kv Overhead Insulated Cable Aerial Bundled Cable 3x50+1x50sqmm 1

12/20(24)Kv Overhead Insulated Cable Aerial Bundled Cable 3x50+1x50sqmm 2





12/20(24)Kv Overhead Insulated Cable Aerial Bundled Cable 3x50+1x50sqmm 3
