0.6/1kV ABC 2C*75sqmm Overhead Insulated Cable ISO 14001 2005 AAC/XLPE+AAAC/XLPE

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005

Model Number: LV Cable

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 5-10 days

Payment Terms: L/C, T/T

Supply Ability: 1000 KM/Month

Get Best Price
Highlight:

2C*75sqmm Overhead Insulated Cable

,

0.6/1kV Overhead Insulated Cable

,

2C*75sqmm ABC Cable

Insulation Material:
XLPE
Phase Cable Conductor:
AAC
Application:
Overhead Transmission Use
Quality:
100% Test
Standard:
IEC60502-1
Structure:
AAC/XLPE+AAAC/XLPE
Voltage:
0.6-1kv
Neutral Cable Conductor:
AAAC
Neutral Cable Insulation:
XLPE
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE
Phase Cable Conductor:
AAC
Application:
Overhead Transmission Use
Quality:
100% Test
Standard:
IEC60502-1
Structure:
AAC/XLPE+AAAC/XLPE
Voltage:
0.6-1kv
Neutral Cable Conductor:
AAAC
Neutral Cable Insulation:
XLPE
Port:
Qingdao Or Shanghai
0.6/1kV ABC 2C*75sqmm Overhead Insulated Cable ISO 14001 2005 AAC/XLPE+AAAC/XLPE

0.6/1kV ABC 2C*75sqmm Overhead Insulated Cable ISO 14001 2005



0.6/1kV aerial bundled cable 1Cx75(AAC/XLPE)+NA1Cx75sqmm(AAAC/XLPE)Application:
For urban and rural overhead secundary distribution networks, with voltages up to 1000 V.
0.6/1kV aerial bundled cable 1Cx75(AAC/XLPE)+NA1Cx75sqmm(AAAC/XLPE)Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.



0.6/1kV aerial bundled cable 1Cx25(AAC/XLPE)+NA1Cx16sqmm(AAAC/XLPE)Main characteristics:
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.







0.6/1kV aerial bundled cable 1Cx25(AAC/XLPE)+NA1Cx16sqmm(AAAC/XLPE) parameters

CAAI 0,6/1 kV AAAC Covered Neutral without Public Lighting
Nb. of cor es Phase Cond. Cross Section [mm²]
aluminium wires
Phase conductor diameter(mm) Min Insulation thickness(mm) Neutral conductor MIn.Insulat.Thick of Neutral messenger(mm) Nom. outer diam(mm) Approx. weight [kg/km]
sectional area(mm2) conductor diameter(mm)
1 16 7 5 1.15 25 6.4 1.15 16.2 168
1 25 7 5.8 1.15 25 6.4 1.15 17 196
2 16 7 5 1.15 25 6.4 1.15 17.3 236
2 25 7 5.8 1.15 25 6.4 1.15 18.2 291
2 35 7 6.9 1.15 25 6.4 1.15 19.7 354
2 35 7 6.9 1.15 50 9.1 1.53 22.8 453
2 50 19 8.1 1.53 35 7.6 1.15 23.7 489
2 50 19 8.1 1.53 50 9.1 1.53 25.3 554
2 70 19 9.8 1.53 50 9.1 1.53 27.7 692
3 16 7 5 1.15 25 6.4 1.15 18.7 304
3 25 7 5.8 1.15 25 6.4 1.15 20.2 386
3 25 7 5.8 1.15 35 7.6 1.15 20.8 420
3 35 7 6.9 1.15 25 6.4 1.15 22.2 480
3 50 19 8.1 1.53 35 7.6 1.15 26.7 666
3 70 19 9.8 1.53 50 9.1 1.53 31.2 939
3 70 19 9.8 1.53 70 10.7 1.53 32.0 1006
3 95 19 11.5 1.53 50 9.1 1.53 34.4 1186
3 95 19 11.5 1.53 70 10.7 1.53 35.3 1253
3 120 19 12.8 2.04 70 10.7 1.53 39.7 1539
3 185 37 16 2.04 50 9.1 1.53 45.0 2074
3 240 37 18.4 2.04 50 9.1 1.53 49.4 2591

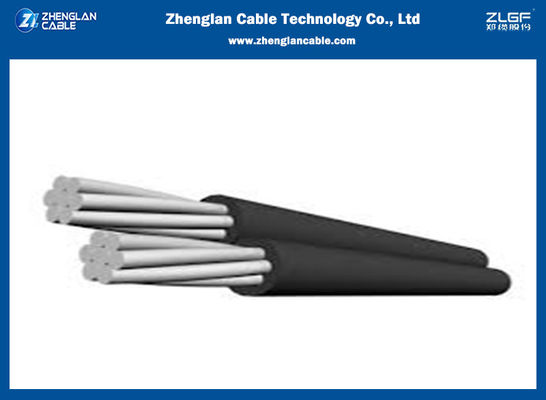

0.6/1kV ABC 2C*75sqmm Overhead Insulated Cable ISO 14001 2005 AAC/XLPE+AAAC/XLPE 0



ABC cable 1x25+1x25sqmm

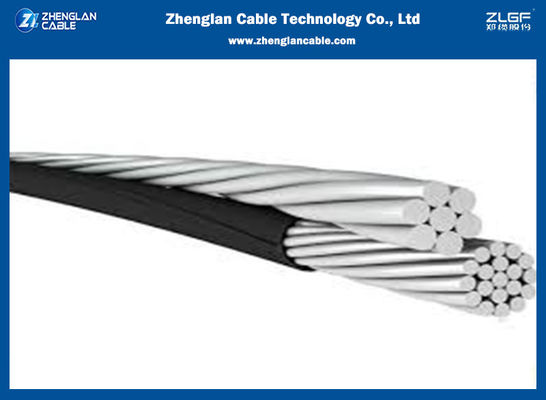

0.6/1kV ABC 2C*75sqmm Overhead Insulated Cable ISO 14001 2005 AAC/XLPE+AAAC/XLPE 2

Company introduction

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
