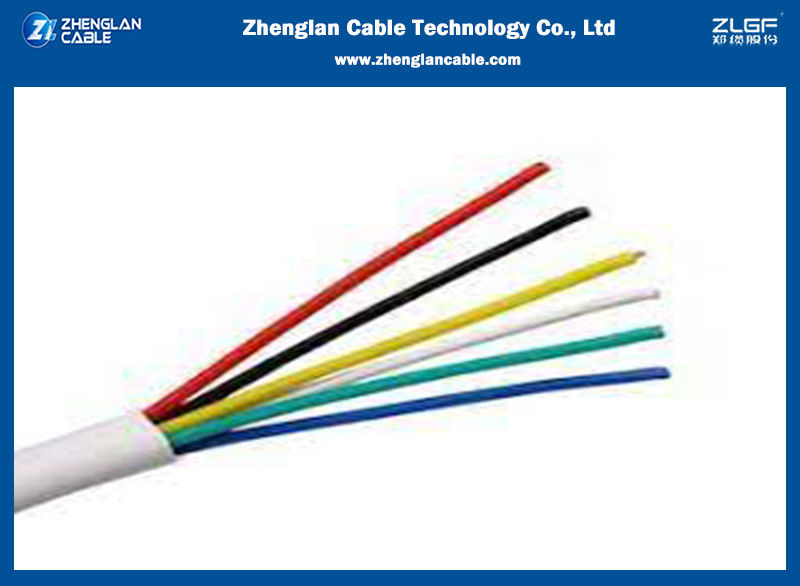

450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable

450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable
450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable 450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable

Large Image :  450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: instrument use 450/750V 5*2.5sqmm pvc insulated pvc sheathed control cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls or Customerised
Delivery Time: 5~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 82,000 KM/Year

450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable

Description
Name: Control Cables Conductor: Copper
Insulation: PVC Sheath: PVC
Application: Instrument Use Colour: Black
Core: Multiple Voltage: 450/750V
Port: Shanghai Or Qingdao
High Light:

5x2.5sqmm Electrical Control Cable

,

450/750V Electrical Control Cable

,

5x2.5sqmm Pvc Insulated Pvc Sheathed Cable

450/750V 5x2.5sqmm Electrical Control Cable Pvc Insulated Pvc Sheathed Cable



Ø Standards:IEC60227, IEC60502-1

Ø Conductor:Bare stranded copper conductor-class 5 IEC228

Ø Insulation/sheath: PVC or PVC of flame retardant and other property

Ø Voltage rating: 450/750V,600/1000V

Ø Temperature range: 0°C to 70°C, 0-90°C

Ø Application:Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines,

transportation equipment, conveyor and assembly lines as well as in plant construction

Ø Remark:the Application: For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercialcable can be with copper braided screen or steel wire armor and other enhanced feature



Application: For Mains and Sub Mains Control Circuits (Fixed Application) – Industrial and Commercial





instrument use 450/750V 8x0.5sqmm pvc insulated pvc sheathed control cable​ reference parameters

Cross section (mm2) Conductor construction (No/mm) Insulation thickness (mm) Insulation thickness (mm) Sheath thickness (mm) Sheath thickness (mm) Overall diameter max (mm) Overall diameter max (mm) Max.D.C resistance of at 20℃ MΩ/Km
    450/750V 6000/1000V 450/750V 6000/1000V 450/750V 6000/1000V
2X0.75 1/0.97 0.6 0.8 1.2 1.8 7.3 9.3 24.5
2X0.75 7/0.37 0.6 0.8 1.2 1.8 7.6 9.6 24.5
2X1 1/1.13 0.6 0.8 1.2 1.8 7.7 9.7 18.1
2X1 7/0.43 0.6 0.8 1.2 1.8 8.0 10.0 18.1
2X1.5 1/1.38 0.7 0.8 1.2 1.8 8.6 10.2 12.1
2X1.5 7/0.52 0.7 0.8 1.2 1.8 8.9 10.5 12.1
2X2.5 1/1.78 0.7 0.8 1.2 1.8 9.8 11.0 7.41
2X2.5 7/0.68 0.7 0.8 1.2 1.8 10.3 11.5 7.41
2X4 1/2.25 0.8 1.0 1.2 1.8 10.7 12.7 4.61
2X4 7/0.85 0.8 1.0 1.2 1.8 11.3 13.3 4.61
2X6 1/2.76 0.8 1.0 1.2 1.8 11.7 13.7 3.08
2X6 7/1.04 0.8 1.0 1.2 1.8 12.4 14.4 3.08
2X10 7/1.35 1.0 1.0 1.2 1.8 15.7 16.3 1.83
3X0.75 1/0.97 0.6 0.8 1.2 1.8 7.7 9.7 24.5
3X0.75 7/0.37 0.6 0.8 1.2 1.8 8.0 10.0 24.5
3X1 1/1.13 0.6 0.8 1.2 1.8 8.0 10.1 18.1
3X1 7/0.43 0.6 0.8 1.2 1.8 8.4 10.4 18.1
3X1.5 1/1.38 0.7 0.8 1.2 1.8 9.0 10.6 12.1
3X1.5 7/0.52 0.7 0.8 1.2 1.8 9.4 11.0 12.1
3X2.5 1/1.78 0.8 0.8 1.2 1.8 10.3 11.5 7.41
3X2.5 7/0.68 0.8 0.8 1.2 1.8 10.8 12.0 7.41
3X4 1/2.25 0.8 1.0 1.2 1.8 11.3 13.4 4.61
3X4 7/0.85 0.8 1.0 1.2 1.8 11.9 14.0 4.61
3X6 1/2.76 0.8 1.0 1.2 1.8 13.0 14.5 3.08
3X6 7/1.04 0.8 1.0 1.2 1.8 13.8 15.2 3.08
3X10 7/1.35 1.0 1.0 1.2 1.8 16.6 17.2 1.83
4X0.75 1/0.97 0.6 0.8 1.2 1.8 8.2 10.4 24.5
4X0.75 7/0.37 0.6 0.8 1.2 1.8 8.6 10.7 24.5
4X1 1/1.13 0.6 0.8 1.2 1.8 8.6 10.8 18.1
4X1 7/0.43 0.6 0.8 1.2 1.8 9.0 11.2 18.1
4X1.5 1/1.38 0.7 0.8 1.2 1.8 9.7 11.4 12.1
4X1.5 7/0.52 0.7 0.8 1.2 1.8 10.1 11.8 12.1
4X2.5 1/1.78 0.8 0.8 1.2 1.8 11.2 12.4 7.41
4X2.5 7/0.68 0.8 0.8 1.2 1.8 11.8 13.0 7.41
4X4 1/2.25 0.8 1.0 1.5 1.8 12.9 14.5 4.61
4X4 7/0.85 0.8 1.0 1.5 1.8 13.6 15.2 4.61
4X6 1/2.76 0.8 1.0 1.5 1.8 14.1 15.7 3.08
4X6 7/1.04 1.0 1.0 1.5 1.8 15.0 16.6 3.08
4X10 7/1.35 1.0 1.0 1.5 1.8 18.2 18.8 1.83
5X0.75 1/0.97 0.6 0.8 1.2 1.8 8.9 11.1 24.5
5X0.75 7/0.37 0.6 0.8 1.2 1.8 9.2 11.5 24.5
5X1 1/1.13 0.6 0.8 1.2 1.8 9.3 11.6 18.1
5X1 7/0.43 0.6 0.8 1.2 1.8 9.7 12.0 18.1
5X1.5 1/1.38 0.7 0.8 1.2 1.8 10.5 12.2 12.1
5X1.5 7/0.52 0.7 0.8 1.2 1.8 11.0 12.7 12.1
5X2.5 1/1.78 0.8 0.8 1.5 1.8 12.7 13.3 7.41
5X2.5 7/0.68 0.8 0.8 1.5 1.8 13.4 14.0 7.41
5X4 1/2.25 0.8 1.0 1.5 1.8 14.0 15.7 4.61
5X4 7/0.85 0.8 1.0 1.5 1.8 14.8 16.5 4.61
5X6 1/2.76 0.8 1.0 1.5 1.8 15.4 17.1 3.08
5X6 7/1.04 0.8 1.0 1.5 1.8 16.3 18.0 3.08
5X10 7/1.35 1.0 1.0 1.7 1.8 20.3 20.5 1.83
6X0.75 1/0.97 0.6 0.8 1.2 1.8 9.5 11.9 24.5
6X0.75 7/0.37 0.6 0.8 1.2 1.8 9.9 12.3 24.5
6X1 1/1.13 0.6 0.8 1.2 1.8 10.0 12.4 18.1
6X1 7/0.43 0.6 0.8 1.2 1.8 10.5 12.9 18.1
