Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005
Model Number: Aerial Insulated Cable 3Cx95sqmm 1Cx70mm2
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 16,000 KM/Year
Structure: |
AAC/XLPE+AAAC/XLPE |
Phase Cable Conductor: |
AAC |
Insulation Material: |
XLPE |
Neutral Cable Conductor: |
AAAC |
Neutral Cable Insulation: |
XLPE |
Voltage: |
0.6/1KV |
Application: |
Overhead Transmission Use |
Quality: |
100% Test |
Standard: |
IEC 60502-1 |
Port: |
Qingdao OR Shanghai |
Origin: |
China |
Structure: |
AAC/XLPE+AAAC/XLPE |
Phase Cable Conductor: |
AAC |
Insulation Material: |
XLPE |
Neutral Cable Conductor: |
AAAC |
Neutral Cable Insulation: |
XLPE |
Voltage: |
0.6/1KV |
Application: |
Overhead Transmission Use |
Quality: |
100% Test |
Standard: |
IEC 60502-1 |
Port: |
Qingdao OR Shanghai |
Origin: |
China |

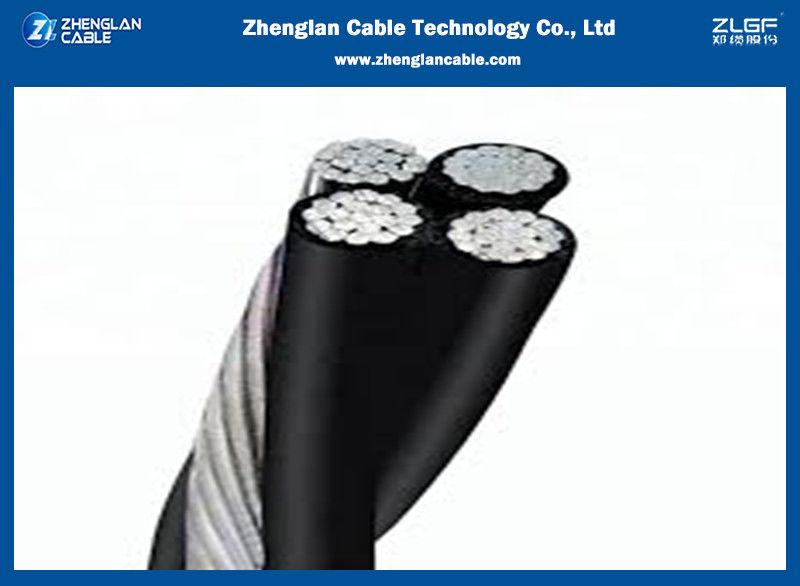

0.6/1KV AAC/XLPE AAAC/XLPE Aerial Overhead Insulated Cable 3Cx95sqmm 1Cx70mm2
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Application:
For aerial reticulating to residential, rural and uncleared areas where reliability, safety and low installation costs
are required.
Other benefits include: Reduction of bushfire hazards and frequency of tree lopping.
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE)Main characteristics:
Decreases energy theft, cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Increased safety due to its mechanical strength and toughness of the insulation. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.
Core identification:
Phase core identificated by number 1, 2, 3 or ribs
Neutral core identificated by company name, model&size, voltage, meter mark infor or by full ribs as per requirement
1kV aerial bundled cable without street lighting 2Cx25(AAC/XLPE)+NA1Cx25sqmm(AAAC/XLPE) parameters
CAAI 0,6/1 kV AAAC Covered Neutral with Public Lighting | |||||||||
Nb. of cores | Phase Cond. Cross Section [mm²] | N° aluminium wires |
Phase Cond. Diam. [mm] | Min. insulation thick. [mm] | Public lighting | MIn.Insulat.Thick.Pub.Light. [mm] | Neutral Cond. section [mm²] | Nom. outer diam(mm) | Approx. weight [kg/km] |
1 | 16 | 7 | 5 | 1.14 | 1 x 16 | 1.14 | 25 | 17.2 | 235 |
2 | 16 | 7 | 5 | 1.14 | 1 x 16 | 1.14 | 25 | 18.6 | 303 |
2 | 25 | 7 | 5.8 | 1.14 | 1 x 16 | 1.14 | 25 | 22.7 | 358 |
2 | 25 | 7 | 5.8 | 1.14 | 2 x 16 | 1.14 | 25 | 22.5 | 425 |
2 | 35 | 7 | 6.9 | 1.14 | 1 x 16 | 1.14 | 25 | 24.4 | 420 |
2 | 35 | 7 | 6.9 | 1.14 | 1 x 35 | 1.14 | 25 | 24.4 | 448 |
2 | 35 | 7 | 6.9 | 1.14 | 2 x 16 | 1.14 | 25 | 24.7 | 488 |
2 | 50 | 19 | 8.1 | 1.52 | 1 x 25 | 1.14 | 35 | 29.1 | 583 |
2 | 50 | 19 | 8.1 | 1.52 | 2 x 16 | 1.14 | 50 | 30.4 | 688 |
2 | 70 | 19 | 9.8 | 1.52 | 1 x 25 | 1.14 | 50 | 34.3 | 786 |
3 | 16 | 7 | 5 | 1.14 | 1 x 16 | 1.14 | 25 | 20.6 | 370 |
3 | 25 | 7 | 5.8 | 1.14 | 1 x 16 | 1.14 | 25 | 22.7 | 453 |
3 | 25 | 7 | 5.8 | 1.14 | 2 x 16 | 1.14 | 25 | 25.6 | 520 |
3 | 35 | 7 | 6.9 | 1.14 | 1 x 16 | 1.14 | 25 | 24.4 | 547 |
3 | 35 | 7 | 6.9 | 1.14 | 1 x 35 | 1.14 | 25 | 24.4 | 574 |
3 | 35 | 7 | 6.9 | 1.14 | 1 x 25 | 1.14 | 25 | 24.7 | 606 |
3 | 35 | 7 | 6.9 | 1.14 | 1 x 25 | 1.14 | 35 | 25.7 | 608 |
3 | 35 | 7 | 6.9 | 1.14 | 2 x 16 | 1.14 | 25 | 27 | 614 |
3 | 35 | 7 | 6.9 | 1.14 | 2 x 25 | 1.14 | 25 | 27 | 669 |
3 | 50 | 19 | 8.1 | 1.52 | 1 x 16 | 1.14 | 35 | 29.1 | 733 |
3 | 50 | 19 | 8.1 | 1.52 | 1 x 25 | 1.14 | 35 | 29.1 | 760 |
3 | 50 | 19 | 8.1 | 1.52 | 1 x 35 | 1.14 | 35 | 29.1 | 791 |
3 | 50 | 19 | 8.1 | 1.52 | 2 x 25 | 1.14 | 35 | 31.7 | 855 |
3 | 70 | 19 | 9.8 | 1.52 | 1 x 16 | 1.14 | 50 | 34.3 | 1005 |
3 | 70 | 19 | 9.8 | 1.52 | 2 x 25 | 1.14 | 50 | 37.9 | 1127 |
3 | 95 | 19 | 11.5 | 1.52 | 1 x 16 | 1.14 | 50 | 37.2 | 1252 |
3 | 95 | 19 | 11.5 | 1.52 | 1 x 16 | 1.14 | 50 | 40.3 | 1319 |
3 | 95 | 19 | 11.5 | 1.52 | 1 x 16 | 1.14 | 70 | 38.9 | 1319 |
3 | 95 | 19 | 11.5 | 1.52 | 2 x 25 | 1.14 | 50 | 40.3 | 1374 |
3 | 120 | 19 | 12.8 | 2.03 | 1 x 25 | 1.14 | 50 | 41.0 | 1565 |
3 | 120 | 19 | 12.8 | 2.03 | 1 x 35 | 1.14 | 50 | 41.0 | 1596 |
3 | 120 | 19 | 12.8 | 2.03 | 1 x 16 | 1.14 | 70 | 42.7 | 1604 |
3 | 120 | 19 | 12.8 | 2.03 | 2 x 16 | 1.14 | 70 | 46.1 | 1672 |
3 | 120 | 19 | 12.8 | 2.03 | 2 x 50 | 1.52 | 70 | 46.1 | 1733 |
3 | 120 | 19 | 12.9 | 2.03 | 2 x 25 | 1.14 | 70 | 46.1 | 1890 |
