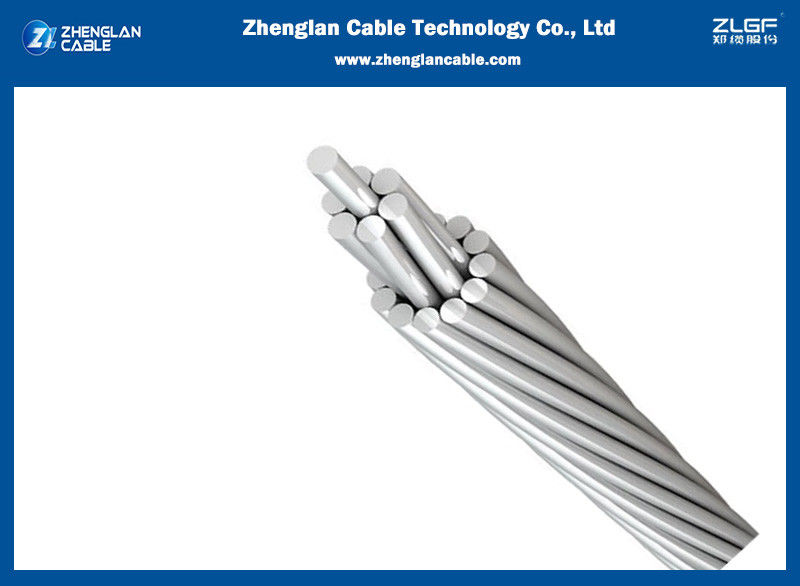

Concentric Lay Stranded 6201 AAAC Cairo 465MCM Overhead Aluminum Electrical Conductor

Concentric-lay-stranded aluminum alloy 6201 conductor Overhead aluminum electrical conductor AAAC Cairo 465MCM

AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Rated Voltage: 35kv/110kv/220kv/500kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Overhead all aluminum alloy conductor common structure


Concentric-lay-stranded aluminum alloy 6201 conductor Overhead aluminum electrical conductor AAAC Cairo 465MCM Application:
AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favorable when ice and win loadings are low.

All aluminum alloy conductor Technical parameters as per IEC61089



Concentric-lay-stranded aluminum alloy 6201 conductor Overhead aluminum electrical conductor AAAC Cairo 465MCM​ technical data as per ASTM B399/399M
