1.1kv NA2XY Aluminum LV Power Cable 4x16mm2 IEC60502-1

Minimum Order Quantity : 500 meters Price : 0.5USD-100USD/m
Packaging Details : Wooden drum, wood and steel drum, as per customer's request Delivery Time : 10-20 working days
Payment Terms : L/C, T/T, Supply Ability : 10000m/day
Place of Origin: Henan, China Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007 Model Number: 1.1kv NA2XY LV aluminum cable LV poweer cable 4x16mm2 IEC60502-1

Detail Information

Material: Aluminum Insulation: XLPE
Armor: Non Sheath: PVC
Out Sheath Color: Black Or Customized Cable Length: As Per Requirement
Voltage: 0.6/1kv Standard: IEC60502-1
High Light:

1.1kv Aluminum LV Power Cable

,

4x16mm2 Aluminum LV Power Cable

,

IEC60502-1 Aluminum LV Power Cable

Product Description

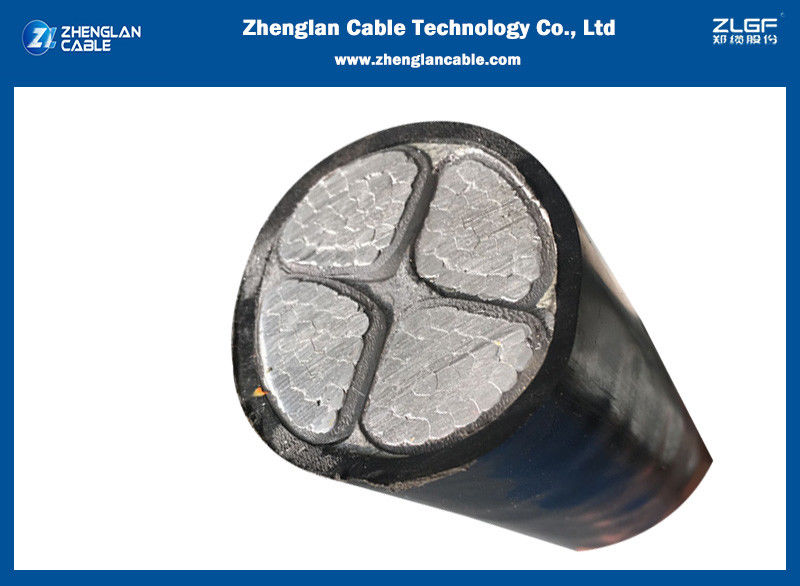

1.1kv NA2XY LV aluminum cable LV poweer cable 4x16mm2 IEC60502-1



Application:

LV power cable are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Construction:

Conductors: Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.



Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.



Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape

Assembly /Inner Sheath: Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.



Armour: Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



1.1kv NA2XY LV aluminum cable LV poweer cable 4x16mm2 IEC60502-1​ ​ Parameters:







Conductor dimensions (mm2)



Insulation thickness (mm)

Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C
1.5 0.7 1.4 1.8 1.8 1.8 1.8 5.6 10.0 10.4 11.1 11.9 45 122 139 167 195 35 103 111 506 148
2.5 0.7 1.4 1.8 1.8 1.8 1.8 6.0 10.8 11.2 12.1 13.0 57 148 175 215 253 42 117 129 641 175
4 0.7 1.4 1.8 1.8 1.8 1.8 6.5 11.7 12.3 13.2 14.3 75 185 228 285 337 50 135 153 833 212
6 0.7 1.4 1.8 1.8 1.8 1.8 7.0 12.7 13.4 14.4 15.6 97 239 295 373 445 60 165 183 1086 258
10 0.7 1.4 1.8 1.8 1.8 1.8 8.1 15.0 15.8 17.2 18.7 143 346 445 568 681 80 220 256 1629 366
16 0.7 1.4 1.8 1.8 1.8 1.8 9.2 17.2 18.2 19.8 21.7 206 494 660 835 1008 106 292 358 2377 505
25 0.9 1.4 1.8 1.8 1.8 1.8 10.6 20.0 21.2 23.2 25.5 303 711 951 1217 1483 146 396 479 3457 696
35 0.9 1.4 1.8 1.8 1.8 1.8 11.8 22.4 23.8 26.1 28.7 403 919 1267 1598 1959 185 478 606 4528 858
50 1.0 1.4 1.8 1.8 1.9 2.0 13.2 25.2 26.8 29.7 32.9 554 1188 1675 2209 2733 241 558 731 6190 1160
70 1.1 1.4 1.9 1.9 2.0 2.1 15.0 22.2 25.7 30.0 36.2 755 1564 2260 2987 3735 317 683 939 8348 1533
95 1.1 1.5 2.0 2.0 2.1 2.3 16.9 25.2 29.1 34.2 40.3 1004 2069 3003 3977 4975 409 874 1210 11091 1987
120 1.2 1.5 2.1 2.1 2.3 2.4 18.5 28.2 32.4 37.2 44.7 1250 2592 3763 4983 6228 498 1082 1498 13880 2453
150 1.4 1.6 2.2 2.3 2.4 2.6 20.6 31.0 36.2 41.2 50.3 1558 3214 4700 6202 7777 619 1327 1869 17280 3059
185 1.6 1.6 2.3 2.4 2.6 2.8 22.7 36.8 40.4 46.2 58.6 1908 3978 5779 7655 9623 750 1650 2287 21355 3803
240 1.7 1.7 2.5 2.6 2.8 3.0 25.3 41.6 47.4 53.3 63.1 2450 5104 7456 9859 12326 947 2084 2926 27399 4776
300 1.8 1.8 2.7 2.8 3.0 3.2 27.9 46.4 50.1 59.4 68.2 3043 6328 9234 12260 15291 1163 2541 3554 33997 5824
400 2.0 1.9   3.1 3.3 3.6 31.6   57.2 68.4 83.1 4021   12224 16240 20305 1514   4651 36685 7683
500 2.2 2.0   3.3 3.3   35.0   74.2 82.2   5002   15136 20176   1869   5849 7554
630 2.4 2.2         39.3         6290         2342
800 2.6 2.3         44.8         7957         2943
1000 2.8 2.4         49.9         9897         3629







Conductor dimensions (mm2)



Insulation thickness (mm)

Nonmetallic sheath, unarmored cable
    Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
    mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.7 0.7 1.8 1.8 1.8 11.9 12.6 12.8 206 229 253
4 2.5 0.7 0.7 1.8 1.8 1.8 12.9 13.7 14.0 268 302 323 178 196 197
6 4.0 0.7 0.7 1.8 1.8 1.8 14.2 15.1 15.4 352 402 428 215 240 237
10 6.0 0.7 0.7 1.8 1.8 1.8 16.5 17.5 18.1 517 584 645 290 321 328
16 10.0 0.7 0.7 1.8 1.8 1.8 19.2 20.5 21.1 761 865 955 396 437 444
25 16.0 0.9 0.7 1.8 1.8 1.8 22.4 23.9 24.7 1110 1278 1406 538 605 606
35 16.0 0.9 0.7 1.8 1.8 1.8 24.6 25.9 27.3 1402 1558 1805 647 709 731
50 25.0 1.0 0.9 1.8 1.9 1.9 28.0 29.9 31.3 1943 2243 2531 842 984 975
70 35.0 1.1 0.9 1.9 2.0 2.1 29.5 33.2 34.4 2645 3038 3412 1101 1273 1234
95 50.0 1.1 1.0 2.1 2.2 2.2 33.2 37.8 38.7 3554 4105 4551 1443 1679 1579
120 70.0 1.2 1.1 2.2 2.3 2.4 36.3 41.6 43.6 4504 5265 5791 1793 2112 1993
150 70.0 1.4 1.1 2.3 2.4 2.5 39.7 45.9 47.9 5425 6200 7018 2147 2480 2380
185 95.0 1.6 1.1 2.5 2.6 2.7 45.4 51.4 53.3 6781 7792 8720 2683 3095 2946
240 120.0 1.7 1.2 2.7 2.8 2.9 53.0 58.6 60.1 8708 9960 11172 3412 3907 3701
300 150.0 1.8 1.4 2.9 3.0 3.1 58.3 65.4 62.9 10818 12394 13827 4192 4823 4480
400 185.0 2.0 1.6 3.1 3.3 3.4 67.5 74.2 67.8 14163 16132 18093 5423 6225 5725



1.1kv NA2XY LV aluminum cable LV poweer cable 4x16mm2 IEC60502-1​ ​ images



1.1kv NA2XY Aluminum LV Power Cable 4x16mm2 IEC60502-1 0

1.1kv NA2XY Aluminum LV Power Cable 4x16mm2 IEC60502-1 1

1.1kv NA2XY Aluminum LV Power Cable 4x16mm2 IEC60502-1 2

1.1kv NA2XY Aluminum LV Power Cable 4x16mm2 IEC60502-1 3



1.1kv swa armored aluminum cable underground cable 4x25mm2 IEC60502-1​  Test equipment

1.1kv NA2XY Aluminum LV Power Cable 4x16mm2 IEC60502-1 4





About zhenglan cable technology co., ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.



Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.



FAQ about 1.1kv NA2XY LV aluminum cable LV poweer cable 4x16mm2 IEC60502-1
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
