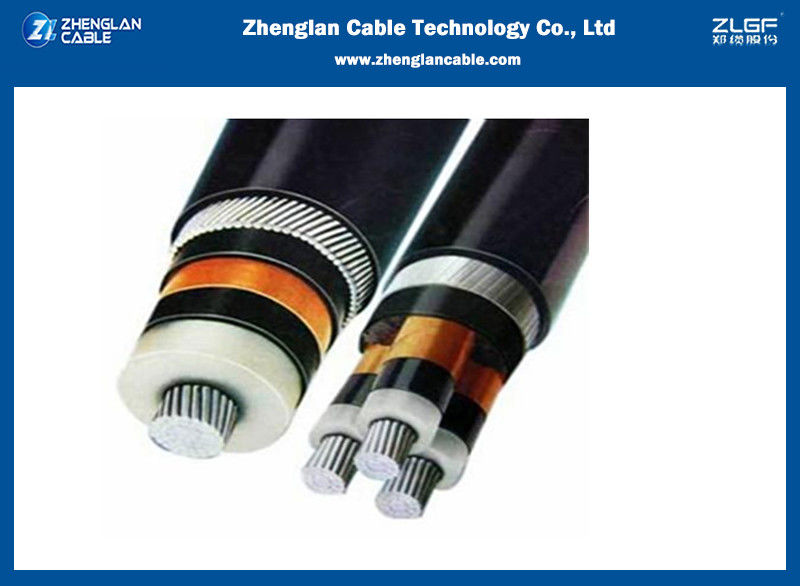

Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2

Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2
Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2
Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2 Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2 Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2

Large Image :  Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2
Payment & Shipping Terms:
Minimum Order Quantity: 1500m
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 10-15 workdays for bulk order
Payment Terms: L/C, T/T,, Western Union

Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2

Description
Material: CU Out Sheath Color: Black
Core: Monoconductor Cable Drum Length: As Per Request
Characted: Armored Specification: Cu/al/xlpe/cts/sta/swa/pvc
Name: Cu/ Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power CableIEC60502-2 Referece Standard: IEC60502-2
High Light:

IEC60502-2 PVC Sheathed Power Cable

,

Armored PVC Sheathed Power Cable

,

IEC60502-2 Steel Type Armored cable

Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2



APPLICATIONS:

Medium-voltage power cables refer to power cables with a voltage of 3-35 kilovolts (KV),
which mainly have two voltage levels of 8.7/15KV and 26/35KV.
The medium voltage power cable can be divided into two types of copper core (YJV) and
aluminum core (YJLV) according to the conductor material. Its main specifications





STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)



Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.



Conductors

Either aluminium or copper conductors are used. Conductors will be circular, compacted & stranded and shall comply with IEC 60228 class 2.



Cross-sectional area: 16mm, 25mm, 35mm, 50mm, 95mm, 185mm, 240mm, 300mm and so on



Number of cores: 1 core, 3 core

Conductor: aluminum or copper

Bedding: Bonded or strippable out semi-conducting layer

Insulation: XLPE(Cross-linked Polyethylene)or EPR(thylene Propylene Rubber)

Armouring: 1. Galvanized steel wires/steel tape for 3 core; 2. Aluminium wire/tape for single core

Outer Sheath: PVC(Polyvinyl chloride)

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.



Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.





Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2 ​reference technical parameters

Three core 6/10kv without armor



Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 14.3 1.6 41 2400 1900
35 7.10 3.4 0.1 16 15.3 1.6 43 2800 2200
50 8.25 3.4 0.1 16 16.5 1.7 46 3400 2500
70 9.90 3. 4 0.1 16 18.1 1.7 50 4200 2900
95 11.7 3.4 0.1 16 19.9 1.8 54 5300 3400
120 13.3 3.4 0.1 16 21.3 1.8 57 6200 3900
150 14.3 3.4 0.1 25 22.5 1.9 60 7200 4400
185 16.3 3.4 0.1 25 24.5 1.9 64 8600 5100
240 18.7 3.4 0.1 25 26.9 2.0 70 10700 6100
300 20.9 3.4 0.1 25 29.1 2.1 75 12900 7100
400 23.7 3.4 0.1 25 31.9 2.2 81 15900 8500



Three core 8.7/15kv without armor



Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 4.5 0.1 16 16.5 1.7 46 3500 2400
35 7.10 4.5 0.1 16 17.5 17 48 3800 2600
50 8.25 4.5 0.1 16 18.7 1.7 51 4400 3000
70 9.90 4.5 0.1 16 20.3 1.8 55 4200 2900
95 11.7 4.5 0.1 16 22.1 1.8 59 5300 3400
120 13.1 4.5 0.1 16 23.5 1.8 62 6400 4000
150 14.3 4.5 0.1 25 24.7 1.9 65 7400 4500
185 16.3 4.5 0.1 25 26.7 1.9 69 10000 5800
240 18.7 4.5 0.1 25 29.1 2.0 75 12200 6800
300 20.9 4.5 0.1 25 31.3 2.1 80 14400 7900
400 23.7 4.5 0.1 35 34.1 2.2 87 17500 9300





Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2 images

Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2 0





Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable IEC60502-2 ​​​​ Package

Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2 1



Cable testing

Cu/Al Conductor PVC Insulated Steel Type Armored And PVC Sheathed Power Cable IEC60502-2 2

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.





Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China

2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.



3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.

4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.



5. What is your MOQ?
Generally for medinum voltage poer cable MOQ is 1000m.
