1.1kv ABC Cable Triplex Service Cable 3x70+NA1x54.6+1x16sqmm NFC33209

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005; CCC

Model Number: 1.1kv aerial bundled cable triplex service cable 3x70+NA1x54.6sqmm NFC33209

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 15,000 KM/Year

Get Best Price
Highlight:

1.1kv ABC Cable

,

1.1kv Triplex Service Cable

,

NFC33209 triplex Service Cable

Insulation Material:
XLPE
Phase Cable:
Aluminum
Neutral Cable:
Aluminum Alloy
Street Lighting Cable:
Aluminum
Standard:
GB/T 12527-2008, IEC60502-1, NFC33209
Structure:
AAC/XLPE+NA AAAC/XLPE+AAC/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE
Phase Cable:
Aluminum
Neutral Cable:
Aluminum Alloy
Street Lighting Cable:
Aluminum
Standard:
GB/T 12527-2008, IEC60502-1, NFC33209
Structure:
AAC/XLPE+NA AAAC/XLPE+AAC/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai

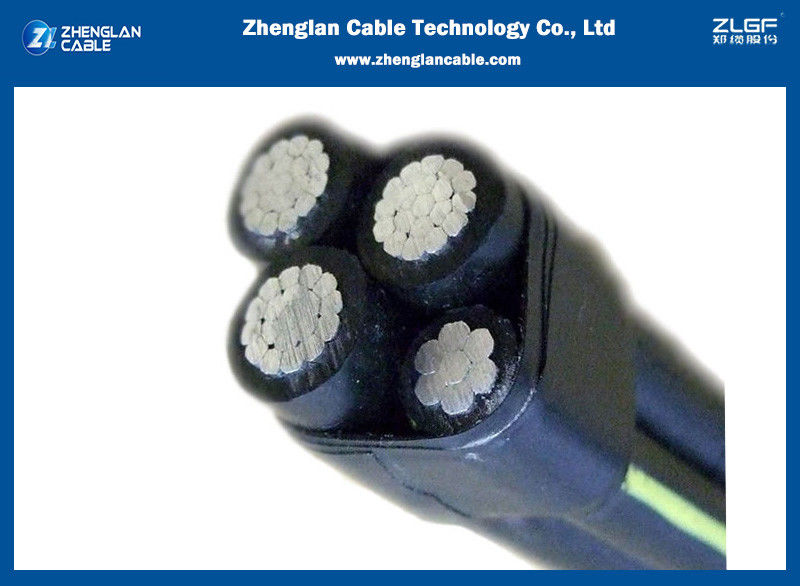

1.1kv ABC Cable Triplex Service Cable 3x70+NA1x54.6+1x16sqmm NFC33209

1.1kv aerial bundled cable triplex service cable 3x70+NA1x54.6+1x16sqmm NFC33209



Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.

Insulation: PVC, XLPE, PE

Standards:
GB/T 12527-2008, IEC60502-1,
IS:14255-1995
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.



Application:

APPLICATION: Used primarily for overhead secondary distribution lines.



Below construction are also commonly used around the world.

A) Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

B) Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .

3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

It meets or exceeds the following specifications:



C ) Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.



1.1kv aerial bundled cable triplex service cable 3x70+NA1x54.6+1x16sqmm NFC33209 parameters





Code Word 3×25mm2+1×54.6mm2 3×35mm2+1×54.6mm2 3×50mm2+1×54.6mm2 3×70mm2+1×54.6mm2 3×35mm2+1×54.6mm2+1×16mm2 3×70mm2+1×54.6mm2+1×16mm2 3×70+1×70mm2
Phase Conductor Cross Section (mm2) 25 35 50 70 35 70 70
  Insulation Thickness (mm) 1.4 1.6 1.6 1.8 1.6 1.8 1.8
  D.C.Resistance At 20 ℃ (Ohm/km) 1.2 0.868 0.641 0.443 0.868 0.443 0.443
Messenger Cross Section (mm2) 54.6 54.6 54.6 54.6 54.6 54.6 70
  Insulation Thickness (mm) 1.6 1.6 1.6 1.6 1.6 1.6 1.5
  D.C.Resistance A 20 ℃ (Ohm/km) 0.63 0.63 0.63 0.63 0.63 0.63 0.5
  Minium Rated Strength (daN) 1660 1660 1660 1660 1660 1660 2050
Public Lighting Cross Section (mm2) - - - - 16 16 -
  Insulation Thickness (mm) - - - - 1.2 1.2 -
  D.C.Resistance At 20 ℃ (Ohm/km) - - - - 1.91 1.91 -
Conductor Diameter Phase Max 6.3 7.3 8.4 10.2 7.3 10.2 10.2
    Min 5.8 6.8 7.9 9.7 6.8 9.7 9.7
  Messenger Max - - - - 5.1 5.1 -
    Min - - - - 4.6 4.6 -
  Public Lighting Max - - - - 5.1 5.1 -
    Min - - - - 4.6 4.6 -
Overall Diameter Phase Max 9.4 10.9 12 14.2 10.9 14.2 14.2
    Min 8.6 10 11.1 13.3 10 13.3 13.3
  Messenger Max 13 13 13 13 13 13 13.6
    Min 12.3 12.3 12.3 12.3 12.3 12.3 12.9
  Public Lighting Max - - - - 7.8 7.8 -
    Min - - - - 7 7 -





1.1kv aerial bundled cable triplex service cable 3x70+NA1x54.6+1x16sqmm NFC33209 images
