Xlpe Covered Overhead Power Cable 3x50+NA1x54.6 NFC33209 Aerial Bundled Cable

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005; CCC

Model Number: 1.1kv aerial bundled cable triplex service cable 3x70+NA1x54.6sqmm NFC33209

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 15,000 KM/Year

Get Best Price
Highlight:

Xlpe Covered Overhead Power Cable

,

NA1x54.6 Aerial Bundled Cable

,

NFC33209 Aerial Bundled Cable

Insulation Material:
XLPE
Phase Cable:
Aluminum
Neutral Cable:
Aluminum Alloy
Application:
Overhead Line Use, Aerial Electrical Line Use
Standard:
GB/T 12527-2008, IEC60502-1, NFC33209
Structure:
AAC/XLPE+NA AAAC/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE
Phase Cable:
Aluminum
Neutral Cable:
Aluminum Alloy
Application:
Overhead Line Use, Aerial Electrical Line Use
Standard:
GB/T 12527-2008, IEC60502-1, NFC33209
Structure:
AAC/XLPE+NA AAAC/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Xlpe Covered Overhead Power Cable 3x50+NA1x54.6 NFC33209 Aerial Bundled Cable

0.6/1kv xlpe covered overhead insulated cable 3x50+NA1x54.6 NFC33209 aerial bundled cable



Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.

Insulation: PVC, XLPE, PE

Standards:
GB/T 12527-2008, IEC60502-1,
IS:14255-1995
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.



Application:

APPLICATION: Used primarily for overhead secondary distribution lines.



Below construction are also commonly used around the world.

A) Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

B) Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .

3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

It meets or exceeds the following specifications:



C ) Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.



0.6/1kv xlpe covered overhead insulated cable 3x50+NA1x54.6 NFC33209 aerial bundled cable parameters



NUMBER OF CORES X NOMINAL CROSS SECTION OVERAL DIAMETER WEIGHT MAXIMUM CONDUCTOR RESISTANCE MINIMUM BREAKING LOAD CURRENT RATING
NO.×MM² MM KG/KM Ω/KM KN A
2x10 RM 12.8 93 3.080 1.5 38
4x10 RM 15.4 183 3.080 1.5 38
2x16 RM 14.8 129 1.910 2.3 72
4x16 RM 17.8 257 1.910 2.3 72
2x25 RM 18.0 202 1.200 3.8 107
4x25 RM 21.7 404 1.200 3.8 107
2x35 RM 20.8 269 0.868 5.2 132
4x35 RM 25.1 539 0.868 5.2 132
2x50 RM 23.4 352 0.641 7.6 165
1x54.6 RM + 3x25 RM 21.7 507 0.630/1.200 3.8 107
1x54.6 RM + 3x25 RM + 1x16 RM 24.3 573 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x25 RM + 2x16 RM 29.7 639 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x25 RM + 3x16 RM 31.1 705 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x35 RM 25.1 615 0.630/0.868 5.2 132
1x54.6 RM + 3x35 RM + 1x16 RM 28.1 680 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 2x16 RM 34.3 748 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 3x16 RM 35.9 814 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 1x25 RM 28.1 714 0.630/0.868/1.200 5.2/3.8 132/107
1x54.6 RM + 3x50 RM 28.2 741 0.630/0.641 7.6 165
1x54.6 RM + 3x50 RM + 1x16 RM 31.6 806 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 2x16 RM 38.6 875 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 3x16 RM 40.4 940 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 1x25 RM 31.6 841 0.630/0.641/1.200 7.6/3.8 165/107
1x54.6 RM + 3x70 RM 33.0 950 0.630/0.443 10.2 205
1x54.6 RM + 3x70 RM + 1x16 RM 37.0 1014 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 2x16 RM 45.2 1083 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 3x16 RM 47.3 1148 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 1x25 RM 37.0 1048 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x70 RM + 2x25 RM 45.2 1150 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x70 RM + 3x25 RM 47.3 1250 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x95 RM 37.4 1176 0.630/0.320 13.5 240
1x54.6 RM + 3x95 RM + 1x16 RM 41.9 1243 0.630/0.320/1.910 13.5/2.3 240/72

Other cross-sections can be offered upon request.

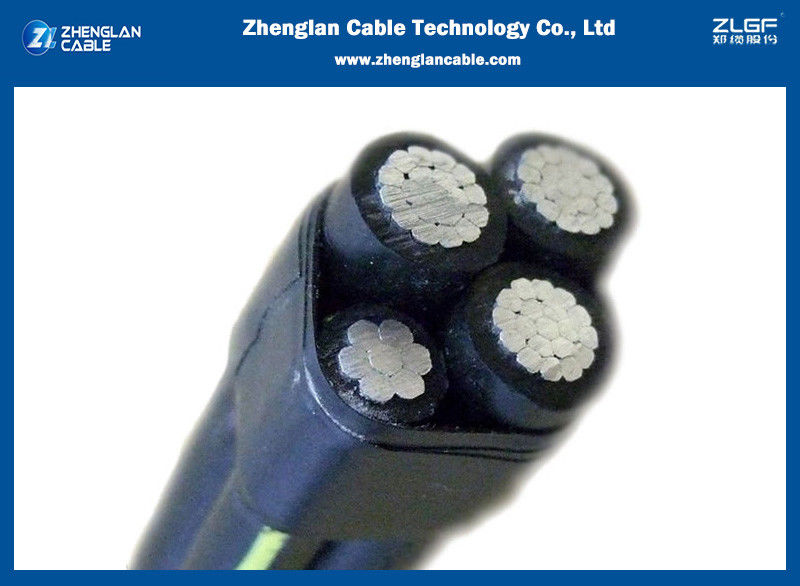

0.6/1kv xlpe covered overhead insulated cable 3x50+NA1x54.6 NFC33209 aerial bundled cable images

Xlpe Covered Overhead Power Cable 3x50+NA1x54.6 NFC33209 Aerial Bundled Cable 0

Xlpe Covered Overhead Power Cable 3x50+NA1x54.6 NFC33209 Aerial Bundled Cable 1

Xlpe Covered Overhead Power Cable 3x50+NA1x54.6 NFC33209 Aerial Bundled Cable 2





Xlpe Covered Overhead Power Cable 3x50+NA1x54.6 NFC33209 Aerial Bundled Cable 3
