1kv 3.5C SWA Armored Copper Cable 3x50sqmm VDE0276, IEC60502-1

1kv 3.5C SWA armored copper cable 3x50sqmm power cable VDE0276, IEC60502-1

Application:

1kv NYY 4core aluminum cable unarmored 4x35sqmm as per VDE0276, IEC60502-1 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation:PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour Code Colour Code (1):1 Core: Red or Black2 Cores: Red, Black3 Cores: Red, Yellow, Blue4 Cores: Red, Yellow, Blue, Black5 Cores: Red, Yellow, Blue, Black, GreenAbove 5 Cores: Black Cores with White numerals

Assembly /Inner Sheath: Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non- armoured cables, this layer may be omitted

Armour: Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

1kv 3.5C SWA armored copper cable 3x50sqmm power cable VDE0276, IEC60502-1 Technical data

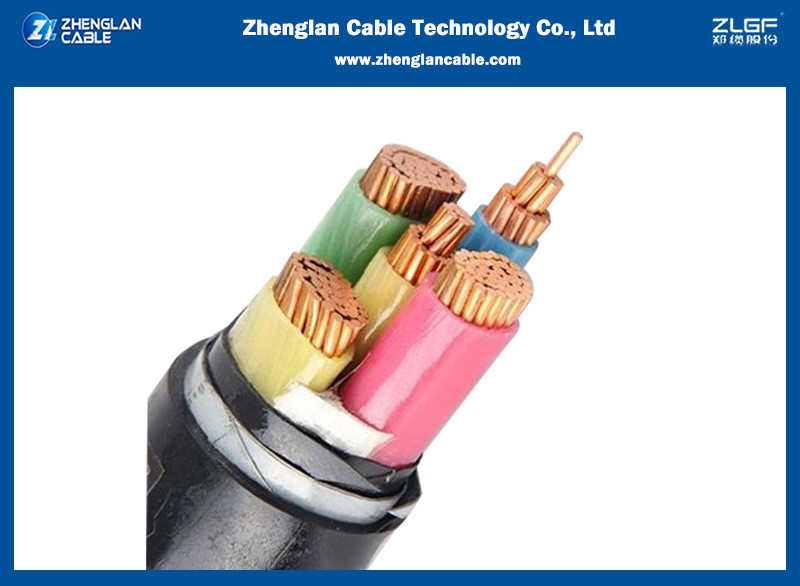

1kv 3.5C SWA armored copper cable 3x50sqmm power cable VDE0276, IEC60502-1 ​images

Why Choose Zhenglan Cable:

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
