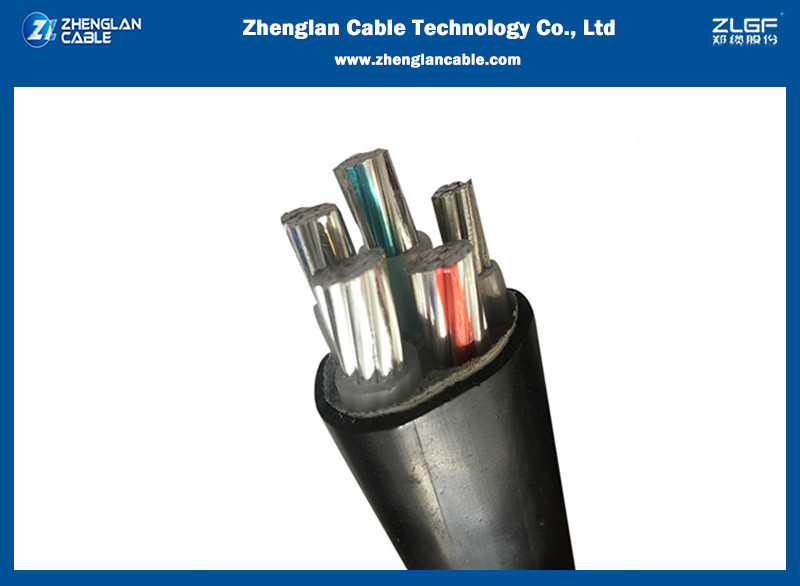

1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1

1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1
1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1 1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1

Large Image :  1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 1kv 3x35+2x16sqmm xlpe insulated LSZH sheathed aluminum cable as per IEC60502-1
Payment & Shipping Terms:
Minimum Order Quantity: 500 meters
Price: 0.5USD-100USD/m
Packaging Details: Wooden drum, wood and steel drum, as per customer's request
Delivery Time: 5-10 days
Payment Terms: L/C, T/T,
Supply Ability: 10000m/day

1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1

Description
Material: Aluminum Insulation: XLPE
Armor: Non Sheath: LSZH
Out Sheath Color: Black Or Customized Cable Length: As Per Requirement
Voltage: 0.6/1kv Standard: IEC60502-1
High Light:

1kv Xlpe Lszh Cable

,

IEC60502-1 Xlpe Lszh Cable

,

2x16sqmm lszh power cable

1kv 3x35+2x16sqmm xlpe insulated LSZH sheathed aluminum cable as per IEC60502-1



Application:

1kv 3x35+2x16sqmm xlpe insulated LSZH sheathed aluminum cable as per IEC60502-1 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Construction:

Conductors: Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.



Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.



Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape



Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



1kv 3x35+2x16sqmm xlpe insulated LSZH sheathed aluminum cable as per IEC60502-1 Parameters:



Conductor dimensions (mm2)



Insulation thickness (mm)

Nonmetallic sheath, unarmored cable
    Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
    mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.7 0.7 1.8 1.8 1.8 11.9 12.6 12.8 206 229 253
4 2.5 0.7 0.7 1.8 1.8 1.8 12.9 13.7 14.0 268 302 323 178 196 197
6 4.0 0.7 0.7 1.8 1.8 1.8 14.2 15.1 15.4 352 402 428 215 240 237
10 6.0 0.7 0.7 1.8 1.8 1.8 16.5 17.5 18.1 517 584 645 290 321 328
16 10.0 0.7 0.7 1.8 1.8 1.8 19.2 20.5 21.1 761 865 955 396 437 444
25 16.0 0.9 0.7 1.8 1.8 1.8 22.4 23.9 24.7 1110 1278 1406 538 605 606
35 16.0 0.9 0.7 1.8 1.8 1.8 24.6 25.9 27.3 1402 1558 1805 647 709 731
50 25.0 1.0 0.9 1.8 1.9 1.9 28.0 29.9 31.3 1943 2243 2531 842 984 975
70 35.0 1.1 0.9 1.9 2.0 2.1 29.5 33.2 34.4 2645 3038 3412 1101 1273 1234
95 50.0 1.1 1.0 2.1 2.2 2.2 33.2 37.8 38.7 3554 4105 4551 1443 1679 1579
120 70.0 1.2 1.1 2.2 2.3 2.4 36.3 41.6 43.6 4504 5265 5791 1793 2112 1993
150 70.0 1.4 1.1 2.3 2.4 2.5 39.7 45.9 47.9 5425 6200 7018 2147 2480 2380
185 95.0 1.6 1.1 2.5 2.6 2.7 45.4 51.4 53.3 6781 7792 8720 2683 3095 2946
240 120.0 1.7 1.2 2.7 2.8 2.9 53.0 58.6 60.1 8708 9960 11172 3412 3907 3701
300 150.0 1.8 1.4 2.9 3.0 3.1 58.3 65.4 62.9 10818 12394 13827 4192 4823 4480
400 185.0 2.0 1.6 3.1 3.3 3.4 67.5 74.2 67.8 14163 16132 18093 5423 6225 5725





Conductor dimensions (mm2)



Insulation thickness (mm)

Armored wire cable
    PVC bedding thickness Armored wire outer diameter



Sheath thickness

Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
    mm mm mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.7 0.7 1.0 1.0 1.0 0.8 0.8 0.8 1.8 1.8 1.8 16.1 16.8 17.0 468 504 533
4 2.5 0.7 0.7 1.0 1.0 1.0 0.8 1.25 1.25 1.8 1.8 1.8 17.1 18.8 19.1 549 730 753 458 624 638
6 4.0 0.7 0.7 1.0 1.0 1.0 1.25 1.25 1.25 1.8 1.8 1.8 19.3 20.2 20.5 794 869 907 657 707 733
10 6.0 0.7 0.7 1.0 1.0 1.0 1.25 1.25 1.25 1.8 1.8 1.8 21.6 22.6 23.2 1023 1117 1201 797 853 912
16 10.0 0.7 0.7 1.0 1.0 1.0 1.25 1.6 1.6 1.8 1.8 1.8 24.3 26.3 26.9 1345 1640 1749 980 1212 1284
25 16.0 0.9 0.7 1.0 1.0 1.0 1.6 1.6 1.6 1.8 1.8 1.8 28.2 29.7 30.5 1946 2172 2322 1374 1499 1592
35 16.0 0.9 0.7 1.0 1.0 1.0 1.6 1.6 1.6 1.8 1.8 1.9 30.4 31.7 33.3 2317 2515 2835 1562 1665 1859
50 25.0 1.0 0.9 1.0 1.0 1.2 1.6 1.6 2.0 1.9 2.0 2.1 34.0 35.9 38.7 2994 3357 4021 1893 2098 2605
70 35.0 1.1 0.9 1.2 1.2 1.2 2.0 2.0 2.0 2.1 2.1 2.2 36.9 40.4 41.6 4044 4577 5014 2499 2813 3029
95 50.0 1.1 1.0 1.2 1.2 1.2 2.0 2.0 2.0 2.2 2.3 2.4 40.4 45.0 46.1 5095 5837 6362 2984 3411 3651
120 70.0 1.2 1.1 1.2 1.4 1.4 2.0 2.5 2.5 2.4 2.5 2.6 43.7 50.8 52.8 6193 7821 8453 3482 4668 4985
150 70.0 1.4 1.1 1.4 1.4 1.4 2.5 2.5 2.5 2.5 2.6 2.7 48.9 55.1 57.1 7839 8969 9893 4560 5249 5669
185 95.0 1.6 1.1 1.4 1.4 1.6 2.5 2.5 2.5 2.7 2.8 2.9 54.6 60.6 62.9 9506 10871 11997 5408 6174 6732
240 120.0 1.7 1.2 1.6 1.6 1.6 2.5 2.5 2.5 2.9 3.0 3.1 62.6 68.2 69.7 11941 13507 14820 6645 7454 8010
300 150.0 1.8 1.4 1.6 1.6 1.6 2.5 2.5 3.15 3.1 3.2 3.4 67.9 75.0 74.0 14363 16353 18430 7737 8781 9911
400 185.0 2.0 1.6 1.6 1.8 1.8 3.15 3.15 3.15 3.4 3.5 3.7 78.6 85.5 79.3 19145 21623 23153 10405 11716 11889



1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1 0

1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1 1

1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1 2



1kv 3x35+2x16sqmm xlpe insulated LSZH sheathed aluminum cable as per IEC60502-1  Test equipment

1kv 3x35+2x16sqmm Aluminum Xlpe Lszh Cable As Per IEC60502-1 3
