185mm2 25KV Overhead Insulated Cable Cond. Al BicapaI CEA S-66-524

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Wooden drum, iron wooden drum or as required Delivery Time : 5-15 days
Payment Terms : L/C, T/T Supply Ability : 15,000 KM/Year
Place of Origin: Henan, China Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005; Model Number: overhead insulated cable Cond. Al Bicapa, 185mm2, 25KV ICEA S-66-524 spaced aerial cable

Detail Information

Insulation: XLPE Conductor Material: Aluminum
Application: Overhead Used In Primary Aerial Cable On Pole Quality: 100% Test
Standard: IEC60502-2, ICEA S-66-524 Structure: AAC/SC/XLPE
Voltage: 25KV Color: Black
High Light:

25KV Overhead Insulated Cable

,

185mm2 Overhead Insulated Cable

,

CEA S-66-524 Overhead Insulated Cable

Product Description

overhead insulated cable Cond. Al Bicapa, 185mm2, 25KV ICEA S-66-524 spaced aerial cable


APPLICATION :
For used in primary aerial cable on pole.
CLASSIFICATION :
Temperature :
- Normal operation 90°C.
- Emergency over load conditions 130°C.
- Short circuit conditions 250°C. Voltage rating :
15 & 25 kV phase to phase.
TESTING VOLTAGE :
11 kVac or 33kVdc for 5 minutes
REFERENCE STANDARD :
PDITL / MEA / PEA

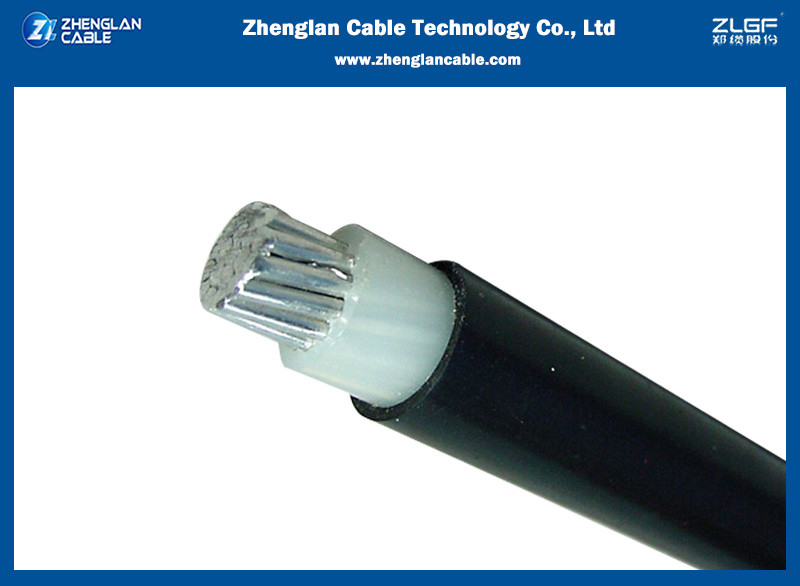

overhead insulated cable Cond. Al Bicapa, 185mm2, 25KV ICEA S-66-524 spaced aerial cable structure:
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Track resistant cross-linked polyethylene (Black)
185mm2 25KV Overhead Insulated Cable Cond. Al BicapaI CEA S-66-524 0


 overhead insulated cable Cond. Al Bicapa, 185mm2, 25KV ICEA S-66-524 spaced aerial cable parameters

15/25kv
Nominal cross sectional area Minimum number of wire Diameter of conductor Thickness of conductor shield &insulation Overall diameter Maximum DC conductor resistance at 20°C Minimum insulation resistance
mm² No. mm mm mm Ω / km MΩ-km
35 6 6.9 2.22 12.0 0.868 1,220
50 6 8.0 2.35 14.0 0.641 1,000
70 12 9.8 2.45 15.0 0.443 1,000
95 15 11.4 2.55 18.0 0.320 790
120 15 12.9 2.60 20.0 0.253 730
185 30 15.8 2.70 22.0 0.164 760



overhead insulated cable Cond. Al Bicapa, 185mm2, 25KV ICEA S-66-524 spaced aerial cable Images



185mm2 25KV Overhead Insulated Cable Cond. Al BicapaI CEA S-66-524 1

185mm2 25KV Overhead Insulated Cable Cond. Al BicapaI CEA S-66-524 2

185mm2 25KV Overhead Insulated Cable Cond. Al BicapaI CEA S-66-524 3



About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

185mm2 25KV Overhead Insulated Cable Cond. Al BicapaI CEA S-66-524 4

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
