AL Prot. Tricapa 70mm2 35KV Overhead Insulated Cable Conductor Spaced Aerial Cable

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Wooden drum, iron wooden drum or as required Delivery Time : 5-15 days
Payment Terms : L/C, T/T Supply Ability : 15,000 KM/Year
Place of Origin: Henan, China Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005; Model Number: Overhead insulated cable Conductor AL prot. tricapa 70mm2 35KV spaced aerial cable ICEA S-66-524

Detail Information

Insulation: XLPE Conductor Material: Aluminum
Application: Overhead Insulated Cable Conductor AL Prot. Tricapa 70mm2 35KV Spaced Aerial Cable ICEA S-66-524 Quality: 100% Test
Standard: IEC60502-2, ICEA S-66-524 Structure: AAC/SC/XLPE/XLPE
Voltage: 15KV Color: Black
High Light:

35KV Overhead Insulated Cable

,

Tricapa Overhead Insulated Cable

,

Tricapa Spaced Aerial Cable

Product Description

Overhead insulated cable Conductor AL prot. tricapa 70mm2 35KV spaced aerial cable ICEA S-66-524

APPLICATION :
For used in primary aerial cable on pole.
CLASSIFICATION :
Temperature :
- Normal operation 90°C.
- Emergency over load conditions 130°C.
- Short circuit conditions 250°C. Voltage rating :
25 kV phase to phase.
AC TESTING VOLTAGE :
38 kV for 5 minutes
REFERENCE STANDARD :
TIS 2341-2555 / MEA / PEA

Overhead insulated cable Conductor AL prot. tricapa 70mm2 35KV spaced aerial cable ICEA S-66-524 structure:
Conductor : Compact stranded hard drawn Aluminium wire. Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)


Overhead insulated cable Conductor AL prot. tricapa 70mm2 35KV spaced aerial cable ICEA S-66-524 parameters

Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
mm²No.mmmmmmmmΩ / kmMΩ-kmAkg / km
5068.04.453.1825.50.6412,606184517
70129.84.453.1827.50.4432,375227599
951511.44.453.1829.00.3202,144276711
1201512.94.453.1831.00.2531,952318831
1501514.14.453.1832.50.2061,830367933
1853015.84.453.1833.50.1641,6944251,073
2403018.34.453.1836.50.1251,5295151,293


Overhead insulated cable Conductor AL prot. tricapa 70mm2 35KV spaced aerial cable ICEA S-66-524 Images

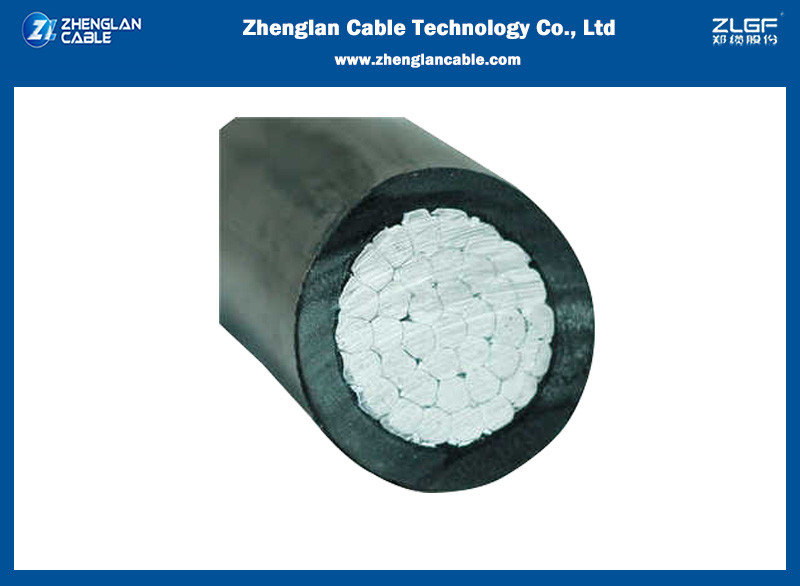

AL Prot. Tricapa 70mm2 35KV Overhead Insulated Cable Conductor Spaced Aerial Cable 0
AL Prot. Tricapa 70mm2 35KV Overhead Insulated Cable Conductor Spaced Aerial Cable 1
AL Prot. Tricapa 70mm2 35KV Overhead Insulated Cable Conductor Spaced Aerial Cable 2
AL Prot. Tricapa 70mm2 35KV Overhead Insulated Cable Conductor Spaced Aerial Cable 3

About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
AL Prot. Tricapa 70mm2 35KV Overhead Insulated Cable Conductor Spaced Aerial Cable 4
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
