AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape

AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape
AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape
AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape

Large Image :  AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005
Model Number: MV overhead insulated Cable SAC cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: Negotiable
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 500Km/Month

AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape

Description
Name: 33kv 1Cx 240sqmm Aerial Spaced Cable SAC Cable AL / SC / XLPE / HDPE Structure: AL / SC / XLPE / HDPE
Conductor Material: Aluminum Screen: Semi-conductive Compound
Insulation Material: XLPE Outer Sheath: HDPE
Outer Sheath Color: Black Application: Overhead Transmission Use
Quality: Confirm To IEC60502-2 Certificate: ISO 9001:2015
High Light:

1Cx 240sqmm Spaced Aerial Cable

,

33kv Spaced Aerial Cable

,

AL XLPE Spaced Aerial Cable

33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE with Copper Tape For Overhead Power Transmission Line



Applation:

Aerial Bundled Cable (ABC cable) has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as : small span in laying, higher safe reliability, better atmosphere aging resistance property. Aerial bundled cable has the priority to be used in urban and rural transmitting construction project.



Description of 33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE



Construction: AL/SC/XLPE/HDPE
(1) Conductor: Aluminium (class 2, compacted circular)
(2) Conductor screen: Semi-conductive compound
(3) Insulation: XLPE black
(4) Outer sheath: HDPE black

 Cable identification:
- Insulation: Natural color of XLPE
- Outer sheath: Black

33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE  Characteristics:
-  Rated voltage: 19/33(36)kV
-  Max. conductor temperature in normal use: 90oC
-  Min. bend radius: 8 x D (D: overall diameter of cable)



33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE APPLICATION
33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE Spacer Cable  will be installed with other spacer cables and a supporting messenger through a series of space-maintainingdevices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation particularly useful in congested areas.

Manufacturing Standards
GB/T 14049-2008, IEC 60502-2, ICEA S-66-524 / MEA



33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE with reference to IEC60502

Nominal cross

sectional area

Diameter of

conductor

Thickness of

insulation

Thickness of

outer sheath

Approx. overall

diameter

DC resistance of

conductor

at 20oC

Approx.

weight

Mm2 mm mm mm mm Ω/km kg/km
35 6.90 8.0 1.9 29.3 0.868 651
50 8.15 8.0 1.9 30.6 0.641 731
70 9.75 8.0 2.0 32.4 0.443 841
95 11.45 8.0 2.1 34.2 0.320 977
120 12.85 8.0 2.1 35.7 0.253 1,082
150 14.30 8.0 2.1 37.2 0.206 1,216
185 15.95 8.0 2.2 39.0 0.164 1,376
240 18.25 8.0 2.2 41.3 0.125 1,617

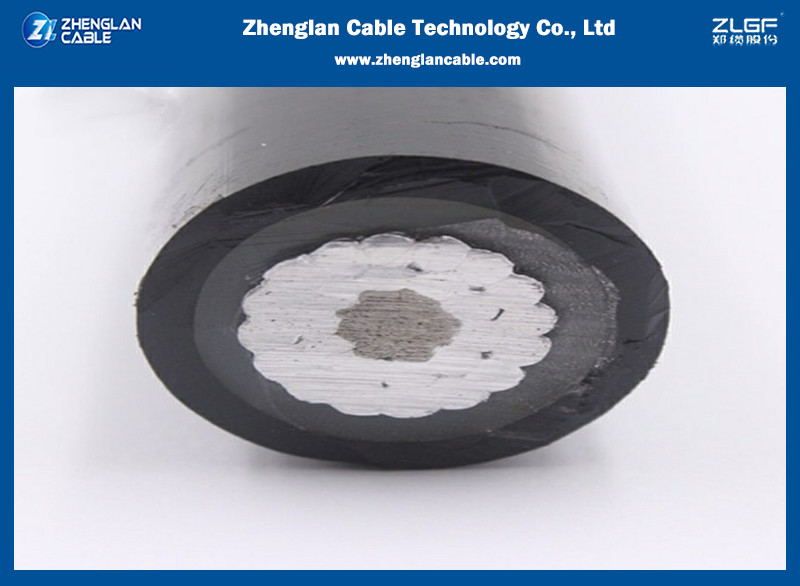

33kv 1Cx 240sqmm aerial spaced cable SAC cable AL / SC / XLPE / HDPE  reference images AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape 0


AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape 1



AL / SC / XLPE / HDPE SAC cable 12KV 1Cx185sqmm packages

AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape 2



About us

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.



Our main products are
overhead power transmission use bare conductor(ACSR, AAC, etc)
1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
450/750V instrument use control cable (shielded or unshielded)
300/300V, 300/500V, 450/750V fixed installation use building wire

AL XLPE 33kv 1Cx 240sqmm Spaced Aerial Cable With Copper Tape 3
