Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: ABC Cable
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: 0.1-100USD/m
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 100Km/Month
Insulation Material: |
XLPE/PVC |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Quality: |
100% Test |
Model: |
Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial Bundled Cable |
Structure: |
AL/XLPE Or Al/xlpe+bare Al Alloy |
Standard: |
IEC60502, NFC33209, |
Insulation Material: |
XLPE/PVC |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Quality: |
100% Test |
Model: |
Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial Bundled Cable |
Structure: |
AL/XLPE Or Al/xlpe+bare Al Alloy |
Standard: |
IEC60502, NFC33209, |

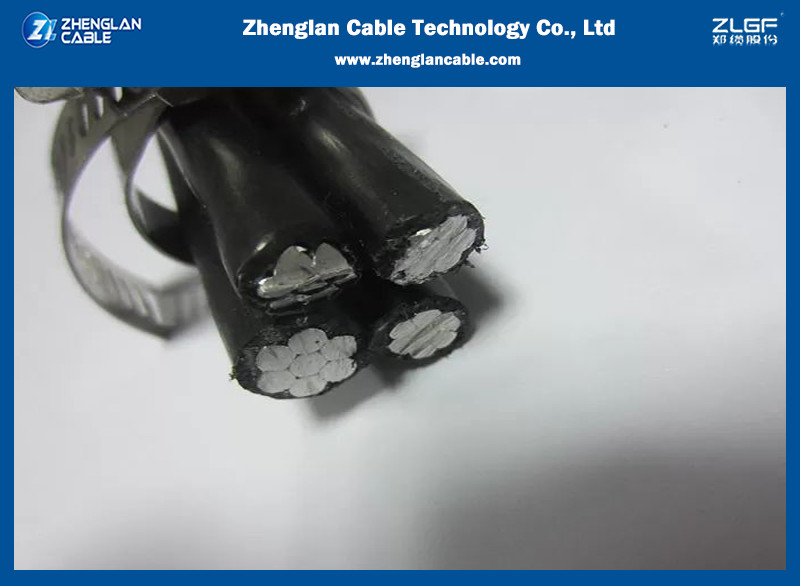

PVC/XLPE/PE Covered Line Wire Duplex/Triplex/Quadruplex ABC Overhead Insulated cable IEC60502, NFC33209
Application:
Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.
Construction:
Phase core conductor: aluminum (AAC)
Neutral core conductor: aluminum(AAC), aluminum alloy(AAAC), ACSR
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Core identification: rib or number 111, 222, 333, 444, 555
Standards:
IEC 60228; IEC 60811-201; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-502; IEC 60811-507; IEC 60811-511; ASTM B 231; ICEA S-76-474;
NTP 370.254; NTP 370.258; NTP-IEC 60228; NFC 33-209
Marking:
(Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) - Year - Sequential length.
IEC 60502 6.35/11 kV ABC for technical date sheets:
| Number of Cores x Nominal Cross Section | Phase Conductor | Messenger Suspension Unit | Continuous current rating at 300C ambient temp | ||||
| Stranding | Nominal Sectional Area | Maximum Conductor Resistance | Stranding | Nominal Sectional Area | Breaking Load | ||
| No.xmm2 | No.xmm | mm2 | Ω/Km | No.xmm | mm2 | KN | A |
| 3X50 + 1X25 | 19/1.78 | 50 | 0.641 | 7/2.13 | 25 | 60 | 116 |
| 3X70 + 1X50 | 19/.14 | 70 | 0.443 | 7/3.15 | 50 | 62 | 210 |
| 3X95+ 1X50 | 19/2.52 | 95 | 0.32 | 7/3.0 | 50 | 60 | 173 |
| 3X185+1X120 | 37/2.52 | 185 | 0.164 | 7/4.67 | 120 | 150 | 259 |
| 3X150 +1X50 | 37/2.25 | 150 | 0.206 | 7/3.15 | 50 | 62 | 365 |
| 3X240 +1X50 | 61/2.25 | 240 | 0.125 | 7/3.15 | 50 | 62 | 500 |
