Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables

Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables
Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables

Large Image :  Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005; CCC
Model Number: Overhead insulated wire
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15,000 KM/Year

Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables

Description
Insulation: XLPE/PVC Conductor Material: ACSR/AAC/AAAC
Application: Overhead Quality: 100% Test
Standard: IEC60502-2, ICEA S-66-524 Color: Black
Type: Medium Voltage Hot-Sale Size:: 70mm 95mm 185mm 150mm
High Light:

Service Drop Overhead Insulated Cable

,

Twist Overhead Insulated Cable

,

Aluminum Conductor Aerial Bundle Cables

Twist Service Drop Overhead Insulated Aluminum Conductor Power Aerial Bundle PVC/XLPE/PE Electrical Cables



Application :

Aerial Bundle Cable, known as ABC cable is a very good option for overhead power distribution compared to the conventional bare conductor overhead cable. Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.



Characteristics:

1. Long-term working temperature of the cable:
PVC insulation<=75ºC;
PE insulation<=70ºC;
XLPE insulation <=90ºC;
2. The highest temperature of the cable conductor during short circuit (the longest duration does not exceed 5 seconds):
PVC insulation<=160ºC;
PE insulation<=150ºC;
XLPE insulation <=250ºC.
3. Cable laying temperature >=-20ºC

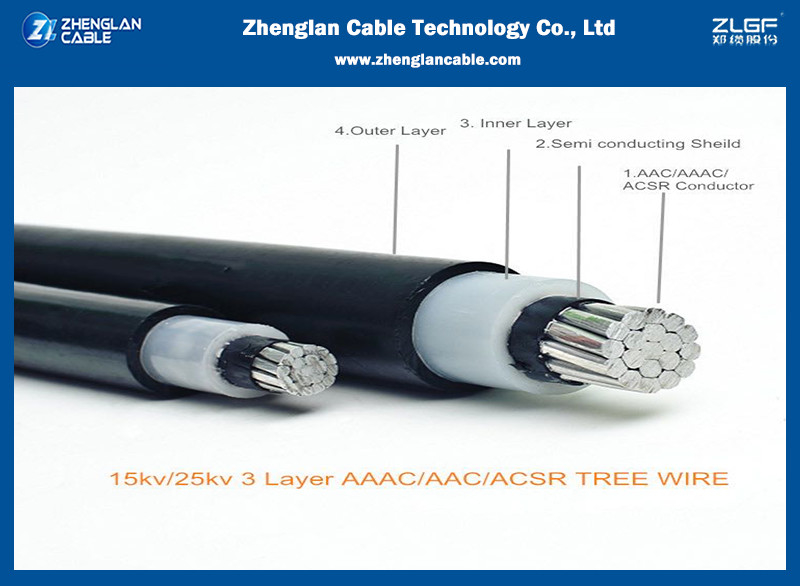

Cable structure:
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Track resistant cross-linked polyethylene (Black)



Single core MV overhead use insulated aluminum cable technical parameters:

Conductor nominal cross sectional area(mm²) Minimum wire nnumber Conductor diameter(reference )mm Conductor screen min. Thickness(mm) Insulation thickness Insulation screen nominal thickness(mm) Conductor resistance at 20℃ no more than(Ω/km) Rted strength no smaller than(N)
Thin insulation General insulation
10 6 3.8 0.5 - 3.4 - 3.080 -
16 6 4.8 0.5 -- 3.4 -- 1.910 -
25 6 6.0 0.5 2.5 3.4 1.0 1.200 3.762
35 6 7.0 0.5 2.5 3.4 1.0 0.868 5.177
50 6 8.3 0.5 2.5 3.4 1.0 0.641 7.011
70 12 10.0 0.5 2.5 3.4 1.0 0.443 10.354
95 15 11.6 0.6 2.5 3.4 1.0 0.320 13.727
120 18 13.0 0.6 2.5 3.4 1.0 0.253 17.339
150 18 14.6 0.6 2.5 3.4 1.0 0.206 21.033
185 30 16.2 0.6 2.5 3.4 1.0 0.164 26.732
240 34 18.4 0.6 2.5 3.4 1.0 0.125 34.679
300 34 20.6 0.6 2.5 3.4 1.0 0.100 43.349
400 53 23.8 0.6 2.5 3.4 1.0 0.0778 55.707



Productors show:



Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables 0

Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables 1



Packing & Shipping:

Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables 2



About Zhenglan Cable Technology Co., Ltd



Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Twist Service Drop Overhead Insulated Cable Aluminum Conductor Power Aerial Bundle Cables 3

FAQ


Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.



If you have any other question, you can send us inquiry, we will reply to you as soon as possible
