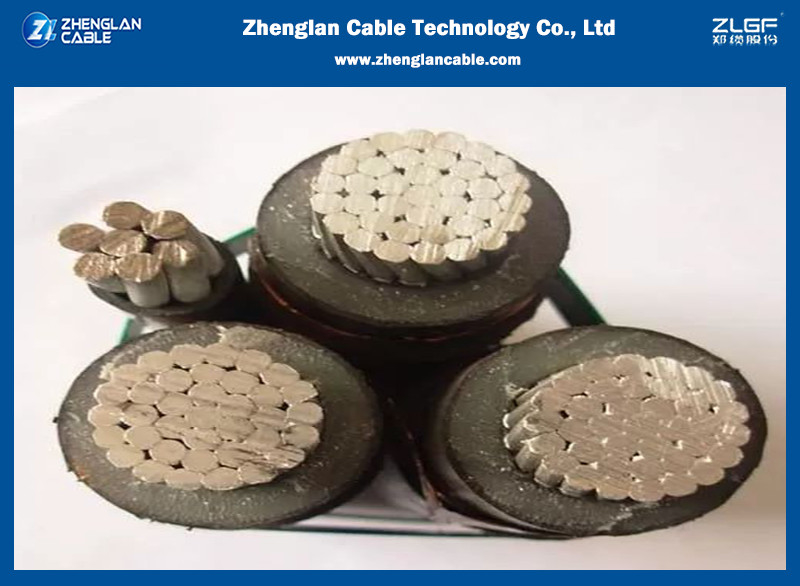

Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line

Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line
Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line

Large Image :  Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005;
Model Number: Overhead Cable ABC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 15,000 KM/Year

Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line

Description
Insulation: XLPE Conductor Material: Aluminum
Application: Overhead Cable ABC Quality: 100% Test
Certification: ISO, CCC, CE, RoHS, UL, VDE Core Number: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Voltage: 6/10KV 12/20KV 18/30KV Color: Black
High Light:

3x185mm2 Overhead Insulated Cable

,

35KV Overhead Insulated Cable

,

Aerial Transmission Overhead Insulated Cable

Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line As Per SANS 1713



APPLICATION :
The XLPE covered aluminum cable- 35kV Voltage Class is constituted by a compact round conductor, composed by aluminum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays. Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction.


CLASSIFICATION :
Temperature : - Normal operation 90 o C. - Emergency overload conditions 130 o C. - Short circuit conditions 250 o C. - Voltage rating : 35 kV phase to phase.

AC TESTING VOLTAGE : 38 kV for 5 minutes
REFERENCE STANDARD : TIS 2341-2555 / MEA / PEA

Structure:
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)


Technical date sheets:

Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
35 6 6.9 1.91 1.91 16.0 0.868 1,820 151 232
50 6 8.0 1.91 1.91 17.5 0.641 1,612 187 291
70 12 9.8 1.91 1.91 19.0 0.443 1,445 231 358
95 15 11.4 1.91 1.91 21.0 0.320 1,284 281 451
120 15 12.9 1.91 1.91 22.5 0.253 1,152 324 552
150 15 14.1 1.91 1.91 24.0 0.206 1,070 375 639
185 30 15.8 1.91 1.91 25.5 0.164 980 433 763
240 30 18.3 1.91 1.91 28.0 0.125 874 525 953


Products show:

Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line 0
Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line 1

 About Zhenglan Cable Technology Co., Ltd


Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Aerial Transmission Al 35KV 3x185mm2 Overhead Insulated Cable Power Transmission Line 2

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
  • Strict quality control system, excellent quality with reasonable price.
