Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: overhead insulated cable Cond. Al 3x50+1x50mm2, Aislados aerial bundle cable IEC60502-1
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: 0.3-50USD/m
Packaging Details: Wooden drum, wooden-steel drum, coil or plastic drum or customized
Delivery Time: 15-18 days
Payment Terms: T/T
Supply Ability: 80KM/day
Insulation Material: |
XLPE |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Standard: |
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 |
Phase Cable Structure: |
AL/XLPE |
Neutral Cable Structure: |
AAAC/XLPE |
Insulation Material: |
XLPE |
Conductor Material: |
Aluminum |
Application: |
Overhead |
Standard: |
BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 |
Phase Cable Structure: |
AL/XLPE |
Neutral Cable Structure: |
AAAC/XLPE |

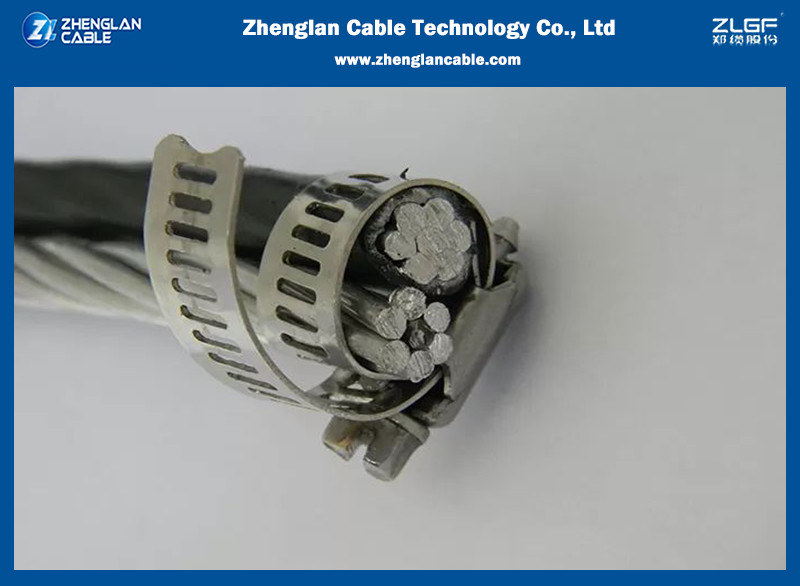

1kv Overhead Insulated Cable Duplex Triplex Quadruplex Overhead Wire ABC Aluminum Service Drop AS/NZS 3560:1
For used in primary aerial cable on pole. on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These cables are an excellent technical and economic option for companies all over the world, since they feature such advantages as low manufacturing cost and ease of installation.To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Insulation: PVC, XLPE, PE
GB/T 12527-2008, IEC60502, IS:14255-1995, ASNZS 3560.1.NFC 33209
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
Core Number & Cross section area
Including 1, 2, 3, 4, 5, 1+1, 2+1, 3+1, 4+1 cores and so on, from 10mm2 to 240mm2 as follows, 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240m2.
Part of Technical Data:
Goods Description | Specification mm2 | Conductor No./mm | Insulation Thickness mm | Cable Overall Diameter mm | 20ºC Conductor D.C. Resistance Ω/km | Cable Weight kg/km |
ABC Cable | 2x10 | 7/1.35 | 1.0 | 9.9 | 3.08 | 69 |
ABC Cable | 2x16 | 7/1.71 | 1.2 | 12.3 | 1.91 | 109 |
ABC Cable | 2x25 | 7/2.16 | 1.2 | 14.8 | 1.20 | 162 |
ABC Cable | 2x35 | 7/2.55 | 1.4 | 17.4 | 0.868 | 225 |
ABC Cable | 2x50 | 7/3.00 | 1.4 | 20.2 | 0.641 | 308 |
ABC Cable | 2x70 | 19/2.16 | 1.4 | 23.5 | 0.433 | 427 |
ABC Cable | 2x95 | 19/2.55 | 1.6 | 27.3 | 0.320 | 579 |
ABC Cable | 2x120 | 37/2.05 | 1.6 | 30.4 | 0.253 | 721 |
ABC Cable | 2x150 | 37/2.28 | 1.8 | 34 | 0.206 | 899 |
ABC Cable | 2x185 | 37/2.56 | 2.0 | 37.8 | 0.164 | 1111 |
ABC Cable | 2x240 | 37/2.95 | 2.2 | 42.9 | 0.125 | 1446 |
