XLPE Insulated Armoured PVC Jacket Power Cable Copper Conductor 0.6kv 1kv

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 0.6/1kv NYY 4 Core Copper/Aluminum Conductor XLPE PVC Insulated Underground Armoured 4x50sqmm As Per VDE0276, IEC60502-1

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: 0.3USD-2USD/m

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T,, Western Union

Supply Ability: 10000m/day

Get Best Price
High Light:

Galvanized Steel Wire LV Power Cable

,

1kv Armoured PVC Jacket Power Cable

,

0.6kv XLPE Insulated Power Cable

Material:
CU/AL
Insulation:
PVC/XLPE
Sheath:
PVC
Core:
4 Core
Out Sheath Color:
Black
Cable Length:
As Per Requirement
Voltage:
0.6/1kv
Standard:
IEC60502-1, VDE0276
Material:
CU/AL
Insulation:
PVC/XLPE
Sheath:
PVC
Core:
4 Core
Out Sheath Color:
Black
Cable Length:
As Per Requirement
Voltage:
0.6/1kv
Standard:
IEC60502-1, VDE0276

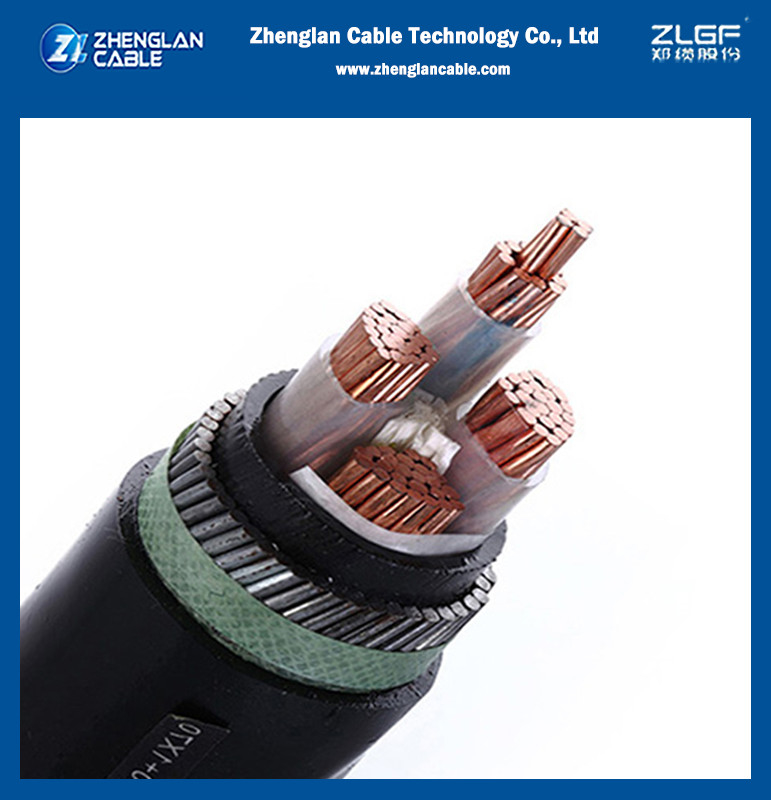

XLPE Insulated Armoured PVC Jacket Power Cable Copper Conductor 0.6kv 1kv

0.6/1kv NYY 4 Core Copper/Aluminum Conductor XLPE PVC Insulated Underground Armoured 4x50sqmm As Per VDE0276, IEC60502-1



Application:

These XLPE insulated cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.



Insulation:PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.



Colour Code Colour Code (1):1 Core: Red or Black2 Cores: Red, Black3 Cores: Red, Yellow, Blue4 Cores: Red, Yellow, Blue, Black5 Cores: Red, Yellow, Blue, Black, GreenAbove 5 Cores: Black Cores with White numerals



Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



Special version upon request

Fire resistant version

LSZH sheath version

AWA,SWA,STA armoured version

PE sheath version



Technical data sheets

Two core unarmoured

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Sheath Thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm
2x1.5 1.4 0.7 1.8 9.2
2x2.5 1.8 0.7 1.8 10
2x4 2.3 0.7 1.8 11
2x6 2.8 0.7 1.8 12
2x10 3.6 0.7 1.8 13.6
2x16 4.5 0.7 1.8 15.4
2x25 5.6 0.9 1.8 18.4
2x35 6.7 0.9 1.8 20.6
2x50 8 1 1.8 23.6
2x70 9.4 1.1 1.8 26.8
2x95 11 1.1 1.9 30.2
2x120 12.4 1.2 2 33.7
2x150 13.8 1.4 2.2 37.5
2x185 15.3 1.6 2.3 41.6
2x240 17.5 1.7 2.5 46.7
2x300 19.5 1.8 2.6 51.4
2x400 22.6 2 2.9 58.9

Two cores Galvanized steel wire armoured

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm mm mm
2x1.5 1.4 0.7 1 0.8 1.8 12.8
2x2.5 1.8 0.7 1 0.8 1.8 13.6
2x4 2.3 0.7 1 0.8 1.8 14.6
2x6 2.8 0.7 1 1.25 1.8 16.5
2x10 3.6 0.7 1 1.25 1.8 18.1
2x16 4.5 0.7 1 1.25 1.8 19.9
2x25 5.6 0.9 1 1.6 1.8 23.6
2x35 6.7 0.9 1 1.6 1.8 25.8
2x50 8 1 1 1.6 1.9 29
2x70 9.4 1.1 1 2 2 33.2
2x95 11 1.1 1.2 2 2.1 37.1
2x120 12.4 1.2 1.2 2 2.3 40.5
2x150 13.8 1.4 1.2 2.5 2.4 45.4
2x185 15.3 1.6 1.4 2.5 2.6 49.9
2x240 17.5 1.7 1.4 2.5 2.7 55.1
2x300 19.5 1.8 1.6 2.5 2.9 60.2
2x400 22.6 2 1.6 2.5 3.1 67.7
