Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Model Number: Overhead Bare Conductor Wire(Nominal Area:16-1120mm2), AAAC Conductor according to IEC 61089
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: 0.1-100USD/m
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15 days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 15-30ton/day
Certification: |
ISO, CCC, CE |
Material: |
Aluminum Alloy Conductor |
Out Sheath Color: |
No |
Core: |
Normal Or Customized |
Cable Mark: |
None |
Country Of Original: |
China |
Nominal Area: |
16-1120 |
Package: |
Wooden Drum/Wooden Steel Drum/Rolls |
Color: |
Silver |
Certification: |
ISO, CCC, CE |
Material: |
Aluminum Alloy Conductor |
Out Sheath Color: |
No |
Core: |
Normal Or Customized |
Cable Mark: |
None |
Country Of Original: |
China |
Nominal Area: |
16-1120 |
Package: |
Wooden Drum/Wooden Steel Drum/Rolls |
Color: |
Silver |

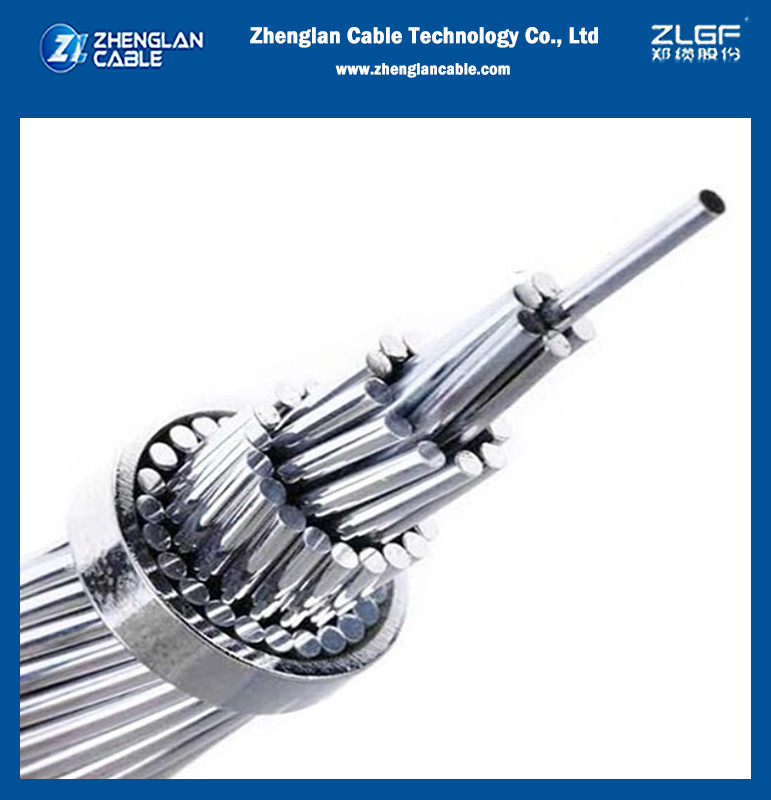

Overhead Bare Conductor Wire all aluminium alloy conductor AAAC 350mcm 400mcm acoording to ASTM B399
APPLICATION:
AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.
Bare Conductor Wire STANDARD
Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.
Bare Conductor Wire CONSTRUCTION
AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.
This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
Bare Conductor Wire ELECTRICAL PROPERTIES
density@20ºC | 2.70 kg/dm |
Temperature Coefficient@20°C | 0.00360 (°C) |
resistivity@20°C | 0.0326 Ohms mm2/m |
linear Expansivity |
23 x10-6 (°C) |
SERVICE CONDITIONS
Ambient Temperature | -5°C - 50°C |
Wind Pressure | 80 – 130kg/m |
Seismic Acceleration | 0.12 - 0.05g |
Isokeraunic level | 10 – 18 |
relative Humidity | 5 – 100% |
CONSTRUCTION PARAMETERS
Code Name | Area | No. and diameter | Overall diameter | Weight | Nominal breaking load | MAX .DC resistance at 20 | |
Nominal | Actual | ||||||
MCM | mm2 | mm | mm | kg/km | kN | ohm/km | |
AKRON | 30.58 | 15.5 | 7/1.68 | 5.04 | 42.58 | 4.92 | 2.159 |
ALTON | 48.69 | 24.7 | 7/2.12 | 6.36 | 67.8 | 7.83 | 1.356 |
AMES | 77.47 | 39.2 | 7/2.67 | 8.01 | 107.5 | 12.4 | 0.8547 |
AZUSA | 123.3 | 62.4 | 7/3.37 | 10.11 | 171.3 | 18.9 | 0.5365 |
ANAHEIM | 155.4 | 78.6 | 7/3.78 | 11.34 | 215.6 | 23.8 | 0.4264 |
AMHERST | 195.7 | 99.3 | 7/4.25 | 12.75 | 272.5 | 30 | 0.3373 |
ALLIANCE | 246.9 | 125 | 7/4.77 | 14.31 | 343.2 | 37.8 | 0.2678 |
BUTTE | 312.8 | 159 | 19/3.26 | 16.3 | 435.1 | 46.5 | 0.2112 |
CANTON | 394.5 | 200 | 19/3.66 | 18.3 | 548.5 | 58.6 | 0.1676 |
CAIRO | 465.4 | 236 | 19/3.98 | 19.9 | 648.6 | 69.2 | 0.1417 |
DARIEN | 559.5 | 284 | 19/4.36 | 21.8 | 778.3 | 83.1 | 0.1181 |
ELGIN | 652.4 | 331 | 19/4.71 | 23.55 | 908.3 | 97 | 0.1012 |
FLINT | 740.8 | 375 | 37/3.59 | 25.13 | 1028 | 107 | 0.08944 |
GREELEY | 927.2 | 470 | 37/4.02 | 28.14 | 1289 | 135 | 0.07133 |
/ | 1077.4 | 547 | 61/3.38 | 30.42 | 1502 | 156 | 0.0612 |
/ | 1165.1 | 590 | 61/3.51 | 31.59 | 1620 | 167 | 0.05675 |
/ | 1259.6 | 638 | 61/3.65 | 32.85 | 1751 | 181 | 0.05248 |
/ | 1348.8 | 685 | 61/3.78 | 34.02 | 1878 | 194 | 0.04893 |
/ | 1439.2 | 729 | 61/3.90 | 35.1 | 1999 | 207 | 0.04597 |
