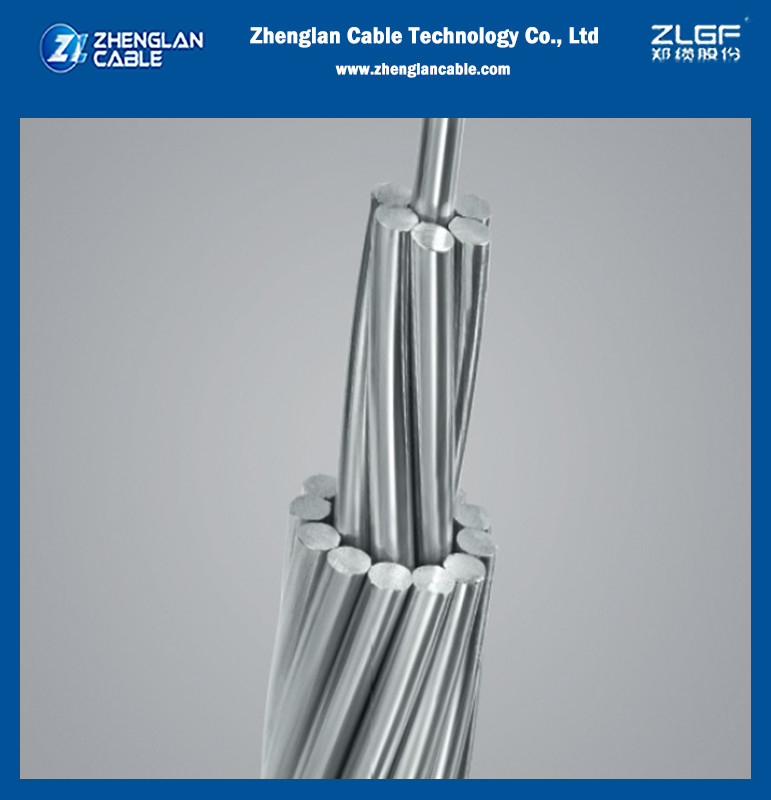

AAC Aluminum Conductor electronic cable Code 630sqmm With High Strength DIN / IEC Standard(AAC,AAAC, ACSR)
APPLICATION
Conductor (AAAC, AAAC and ACSSR) electronic cable have been widely used in power transmission lines with various voltage levels, because they such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the place where special geographical features exist.
SERVICE PERFORMANCE
MATERIAL STANDARD
1. The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
2. The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
3. Electronic cable can be arranged according to the customers requirements for material standard, etc.
Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced.
CHARACTERISTICS:
1. Simple construction;
2. Easy installation and maintenance;
3. Lower price and large transmission capacity;
4. Better for long distance power transmission;
ELECTRICAL PROPERTIES:
Density@20℃ | 2.703 kg/dm |
Temperature Coefficient@20°C | 0.00403 (°C) |
Resistivity@20°C | 0.028264 |
Linear Expansivity | 23 x10-6 (°C |
Ambient Temperature | -5°C - 50°C |
Wind Pressure | 80 – 130kg/m2 |
Seismic Acceleration | 0.12 - 0.05g |
Isokeraunic Level | 10 – 18 |
Relative Humidity | 5 – 100% |
Density@20℃ | 2.703 kg/dm |
Temperature Coefficient@20°C | 0.00403 (°C) |
Resistivity@20°C | 0.028264 |
Linear Expansivity | 23 x10-6 (°C) |
IEC 61089
CODE |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
mm2 | No.×mm | mm | Kg/Km | KN | Ω/Km | A | |
10 | 10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 | 62 |
16 | 16 | 7/1.71 | 5.13 | 43.8 | 3.04 | 1.7896 | 84 |
25 | 25 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 | 110 |
40 | 40 | 7/2.70 | 8.1 | 109.4 | 6.8 | 0.7158 | 147 |
63 | 63 | 7/3.39 | 10.17 | 172.3 | 10.39 | 0.4545 | 195 |
100 | 100 | 19/2.59 | 12.95 | 274.8 | 17 | 0.2877 | 259 |
125 | 125 | 19/2.89 | 14.45 | 343.6 | 21.25 | 0.2302 | 297 |
160 | 160 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 | 345 |
200 | 200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 | 396 |
250 | 250 | 19/4.09 | 20.45 | 687.1 | 40 | 0.1151 | 454 |
315 | 315 | 37/3.29 | 23.03 | 867.9 | 51.97 | 0.0916 | 522 |
400 | 400 | 37/3.71 | 25.97 | 1102 | 64 | 0.0721 | 603 |
450 | 450 | 37/3.94 | 27.58 | 1239.8 | 72 | 0.0641 | 647 |
500 | 500 | 37/4.15 | 29.05 | 1377.6 | 80 | 0.0577 | 688 |
560 | 560 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 | 736 |
630 | 630 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 | 789 |
710 | 710 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 | 845 |
800 | 800 | 61/4.09 | 36.81 | 2207.4 | 128 | 0.0361 | 905 |
900 | 900 | 61/4.33 | 38.97 | 2483.3 | 144 | 0.0321 | 967 |
1000 | 1000 | 61/4.57 | 41.13 | 2759.2 | 160 | 0.0289 | 1026 |
1120 | 1120 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 | 1091 |
