Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 1kv AAC/XLPE/LSZH 3x50+1x25mm2 LV Power Cable Low Voltage Underground Cable IEC60502-1
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: 0.1USD-50USD/m
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 10000m/day
Material: |
AL |
Insulation: |
XLPE |
Sheath: |
LSZH |
Core: |
3.5 Core |
Out Sheath Color: |
Black |
Cable Length: |
As Per Requirement |
Voltage: |
0.6/1kv |
Standard: |
IEC60502-1, VDE0276 |
Material: |
AL |
Insulation: |
XLPE |
Sheath: |
LSZH |
Core: |
3.5 Core |
Out Sheath Color: |
Black |
Cable Length: |
As Per Requirement |
Voltage: |
0.6/1kv |
Standard: |
IEC60502-1, VDE0276 |
1kv AAC/XLPE/LSZH 3x50+1x25mm2 LV Power Cable Low Voltage Underground Cable IEC60502-1
Application:
These cables are applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below. The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.
They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction:
Conductors:Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.
Colour Code Colour Code (1):1 Core: Red or Black2 Cores: Red, Black3 Cores: Red, Yellow, Blue4 Cores: Red, Yellow, Blue, Black5 Cores: Red, Yellow, Blue, Black, GreenAbove 5 Cores: Black Cores with White numerals
Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
Special version upon request
Fire resistant version
LSZH sheath version
AWA,SWA,STA armoured version
PE sheath version
Technical data sheets for 1kv AAC/XLPE/LSZH 3x50+1x25mm2 LV Power Cable Low Voltage Underground Cable IEC60502-1
| Conductor dimensions (mm2) | Insulation thickness | Nonmetallic sheath, unarmored cable | ||||||||||
| Sheath thickness | Outer diameter (approximate) | Cable weight (Kg/km) | ||||||||||
| mm | mm | mm | Aluminum core | |||||||||
| Phase line | Null line | Phase line | Null line | 3+1C | 3+2C | 4+1C | 3+1C | 3+2C | 4+1C | 3+1C | 3+2C | 4+1C |
| 2.5 | 1.5 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 11.9 | 12.6 | 12.8 | — | — | — |
| 4 | 2.5 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 12.9 | 13.7 | 14 | 178 | 196 | 197 |
| 6 | 4 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 14.2 | 15.1 | 15.4 | 215 | 240 | 237 |
| 10 | 6 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 16.5 | 17.5 | 18.1 | 290 | 321 | 328 |
| 16 | 10 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 19.2 | 20.5 | 21.1 | 396 | 437 | 444 |
| 25 | 16 | 0.9 | 0.7 | 1.8 | 1.8 | 1.8 | 22.4 | 23.9 | 24.7 | 538 | 605 | 606 |
| 35 | 16 | 0.9 | 0.7 | 1.8 | 1.8 | 1.8 | 24.6 | 25.9 | 27.3 | 647 | 709 | 731 |
| 50 | 25 | 1 | 0.9 | 1.8 | 1.9 | 1.9 | 28 | 29.9 | 31.3 | 842 | 984 | 975 |
| 70 | 35 | 1.1 | 0.9 | 1.9 | 2 | 2.1 | 29.5 | 33.2 | 34.4 | 1101 | 1273 | 1234 |
| 95 | 50 | 1.1 | 1 | 2.1 | 2.2 | 2.2 | 33.2 | 37.8 | 38.7 | 1443 | 1679 | 1579 |
| 120 | 70 | 1.2 | 1.1 | 2.2 | 2.3 | 2.4 | 36.3 | 41.6 | 43.6 | 1793 | 2112 | 1993 |
| 150 | 70 | 1.4 | 1.1 | 2.3 | 2.4 | 2.5 | 39.7 | 45.9 | 47.9 | 2147 | 2480 | 2380 |
| 185 | 95 | 1.6 | 1.1 | 2.5 | 2.6 | 2.7 | 45.4 | 51.4 | 53.3 | 2683 | 3095 | 2946 |
| 240 | 120 | 1.7 | 1.2 | 2.7 | 2.8 | 2.9 | 53 | 58.6 | 60.1 | 3412 | 3907 | 3701 |
| 300 | 150 | 1.8 | 1.4 | 2.9 | 3 | 3.1 | 58.3 | 65.4 | 62.9 | 4192 | 4823 | 4480 |
| 400 | 185 | 2 | 1.6 | 3.1 | 3.3 | 3.4 | 67.5 | 74.2 | 67.8 | 5423 | 6225 | 5725 |

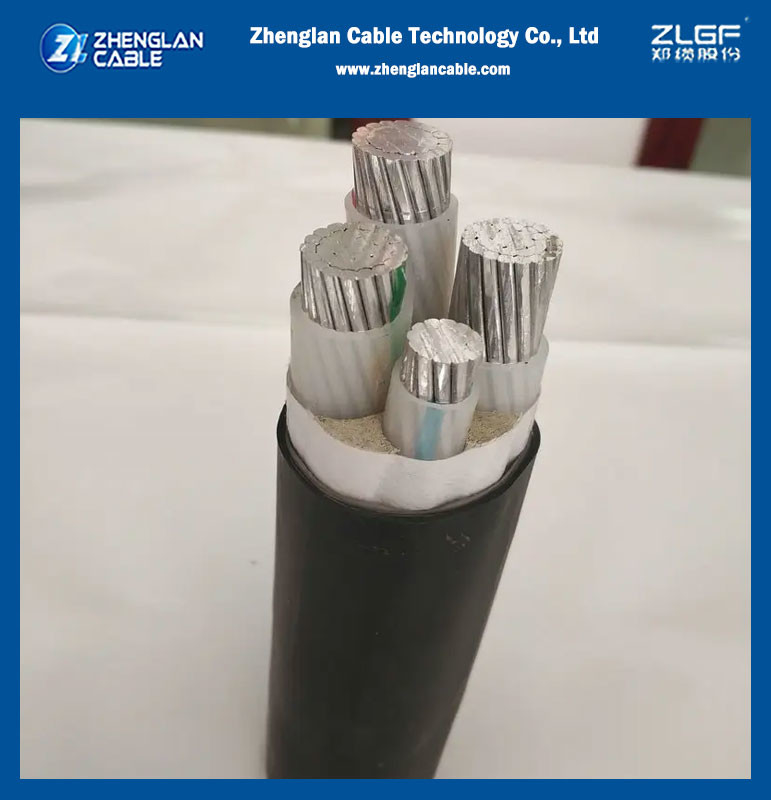

1kv AAC/XLPE/LSZH 3x50+1x25mm2 LV Power Cable Low Voltage Underground Cable IEC60502-1 Products show
1kv AAC/XLPE/LSZH 3x50+1x25mm2 LV Power Cable Low Voltage Underground Cable IEC60502-1 Package infor
