Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 0.6/1kv PVC Insulated aluminum cable flame retardant power cable 2x16mm2 IEC60502-1, IEC60332-1
Payment & Shipping Terms
Minimum Order Quantity: 1000meters
Price: 0.1USD-50USD/m
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 10000m/day
Material: |
AL |
Insulation: |
PVC |
Sheath: |
Flame Retardant PVC |
Core: |
2core |
Out Sheath Color: |
Black |
Cable Length: |
As Per Requirement |
Voltage: |
0.6/1kv |
Standard: |
IEC60502-1, VDE0276 |
Material: |
AL |
Insulation: |
PVC |
Sheath: |
Flame Retardant PVC |
Core: |
2core |
Out Sheath Color: |
Black |
Cable Length: |
As Per Requirement |
Voltage: |
0.6/1kv |
Standard: |
IEC60502-1, VDE0276 |

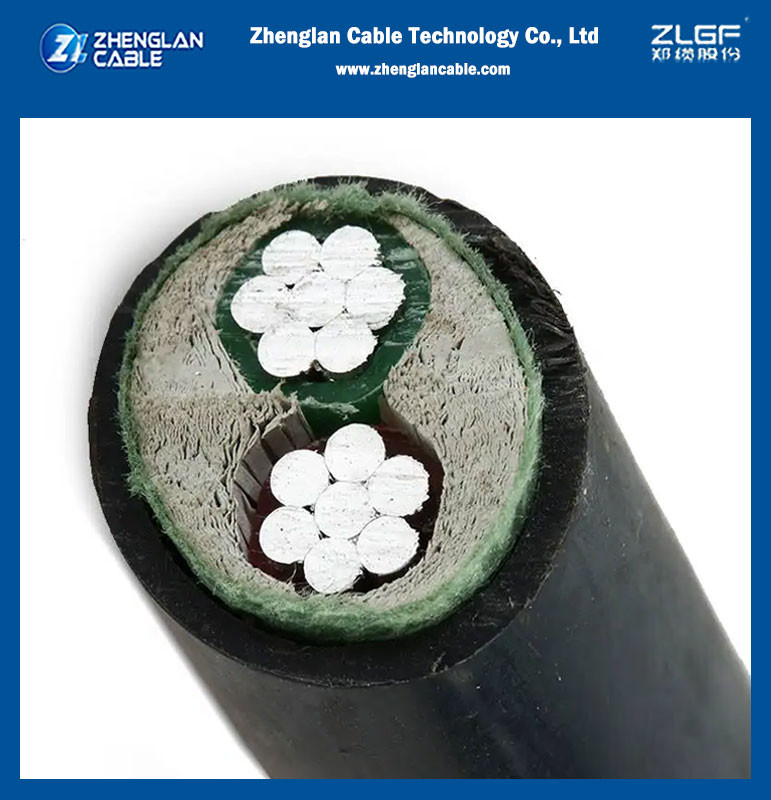

0.6/1kv PVC Insulated aluminum cable flame retardant power cable 2x16mm2 IEC60502-1, IEC60332-1
Application:
0.6/1kv PVC Insulated aluminum cable flame retardant power cable 2x16mm2 IEC60502-1, IEC60332-1 cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.
Colour Code Colour Code (1):1 Core: Red or Black2 Cores: Red, Black3 Cores: Red, Yellow, Blue4 Cores: Red, Yellow, Blue, Black5 Cores: Red, Yellow, Blue, Black, GreenAbove 5 Cores: Black Cores with White numerals
0.6/1kv PVC Insulated aluminum cable flame retardant power cable 2x16mm2 IEC60502-1, IEC60332-1 Technical data sheets
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal PVC Sheath Thickness | Overall Diameter (Approx.) | Weight of Cable (Approx.) |
| mm² | mm | mm | mm | mm | Kg/Km |
| 2x1.5 | 1.38 | 0.8 | 1.8 | 12 | 205 |
| 2x2.5 | 1.76 | 0.8 | 1.8 | 13 | 250 |
| 2x4 | 2.25 | 1 | 1.8 | 15 | 330 |
| 2x6 | 2.76 | 1 | 1.8 | 16 | 400 |
| 2x10 | 4 | 1 | 1.8 | 17.5 | 525 |
| 2x16 | 5 | 1 | 1.8 | 20 | 720 |
| 2x25 | 6.3 | 1.2 | 1.8 | 23.5 | 1030 |
| 2x35 | 7.4 | 1.2 | 1.8 | 25.5 | 1320 |
| 2x50 | 8.8 | 1.4 | 1.8 | 28.5 | 1670 |
| 2x70 | 10.6 | 1.4 | 1.8 | 32 | 2290 |
| 2x95 | 12.4 | 1.6 | 1.9 | 37 | 3060 |
| 2x120 | 14 | 1.6 | 2 | 40 | 3700 |
| 2x150 | 15.5 | 1.8 | 2.2 | 44 | 4500 |
| 2x185 | 17.4 | 2 | 2.3 | 48 | 5570 |
| 2x240 | 20.3 | 2.2 | 2.5 | 55 | 7180 |
0.6/1kv PVC Insulated aluminum cable flame retardant power cable 2x16mm2 IEC60502-1, IEC60332-1 Products show
Why Choose Zhenglan Cable:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
