Structure: |
AL/SC/XLPE/XLPE |
Conductor Material: |
Aluminum |
Insulation Material: |
XLPE |
Sheath: |
XLPE |
Application: |
Overhead |
Quality: |
100% Test |
Standard: |
IEC60502-2 |
Port: |
Qingdao |
Structure: |
AL/SC/XLPE/XLPE |
Conductor Material: |
Aluminum |
Insulation Material: |
XLPE |
Sheath: |
XLPE |
Application: |
Overhead |
Quality: |
100% Test |
Standard: |
IEC60502-2 |
Port: |
Qingdao |
35kv AAC/SC/XLPE/XLPE aerial insulated cable 1x50mm2 Trilayer Protected Cable IEC60502 CONSTRUCTION :
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)
35kv AAC/SC/XLPE/XLPE aerial insulated cable 1x50mm2 Trilayer Protected Cable IEC60502 APPLICATION :
to be used as primary aerial cable on pole.
Temperature :
- Normal operation 90°C.
- Emergency over load conditions: 130°C.
- Short circuit conditions: 250°C.
Voltage rating : 35 kV phase to phase.
AC TESTING VOLTAGE :
49 kV for 5 minutes
REFERENCE STANDARD : TIS 2341-2555 / MEA / PEA
35kv AAC/SC/XLPE/XLPE aerial insulated cable 1x50mm2 Trilayer Protected Cable IEC60502 cable parameters
| Nominal cross - sectional area mm² |
Minimum number of wire No. |
Diameter of conductor (Approx.) mm |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter (Approx.) mm |
Maximum DC. conductor resistance at 20°C Ω / km |
Minimum insulation resistance at 15.6°C MΩ-km |
Allowable ampacities in free air at 40°C ambient A |
Cable weight (Approx.) kg / km |
| mm² | No. | mm | mm | mm | mm | Ω / km | MΩ-km | A | kg / km |
| 50 | 6 | 8.0 | 4.45 | 3.18 | 25.5 | 0.641 | 2,606 | 184 | 517 |
| 70 | 12 | 9.8 | 4.45 | 3.18 | 27.5 | 0.443 | 2,375 | 227 | 599 |
| 95 | 15 | 11.4 | 4.45 | 3.18 | 29.0 | 0.320 | 2,144 | 276 | 711 |
| 120 | 15 | 12.9 | 4.45 | 3.18 | 31.0 | 0.253 | 1,952 | 318 | 831 |
| 150 | 15 | 14.1 | 4.45 | 3.18 | 32.5 | 0.206 | 1,830 | 367 | 933 |
| 185 | 30 | 15.8 | 4.45 | 3.18 | 33.5 | 0.164 | 1,694 | 425 | 1,073 |
| 240 | 30 | 18.3 | 4.45 | 3.18 | 36.5 | 0.125 | 1,529 | 515 | 1,293 |

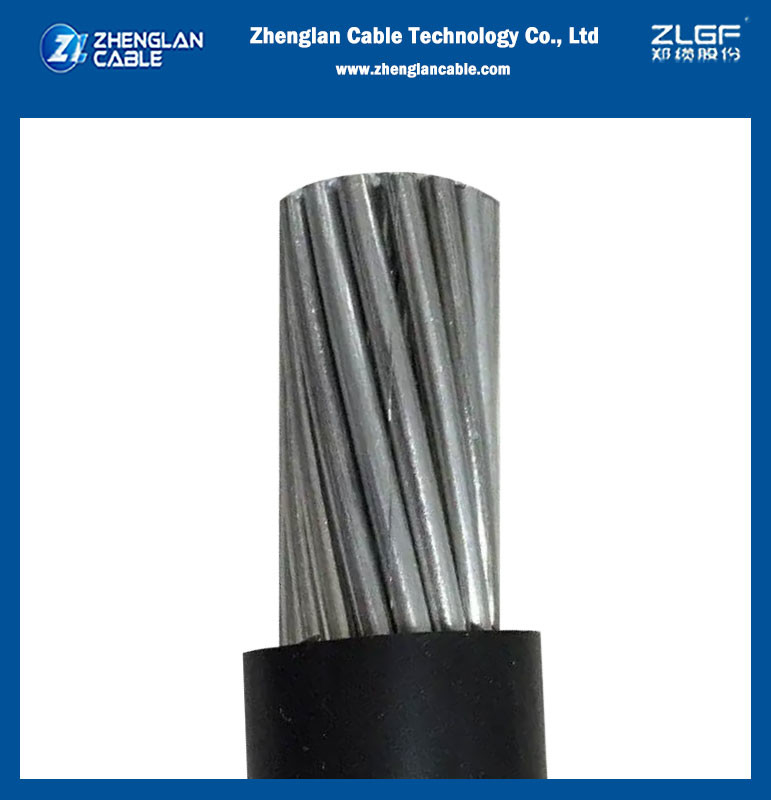

35kv AAC/SC/XLPE/XLPE aerial insulated cable 1x50mm2 Trilayer Protected Cable IEC60502 Products show:
About us:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why you choose us?
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
