1kv Duplex Service Drop Aluminum Conductor Overhead Insulated ABC Cable

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005; CCC

Model Number: 1kv Duplex Service Drop Aluminum Conductor cable Overhead Insulated Cable ABC Cable ICEA S-76-474

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 15,000 KM/Year

Get Best Price
High Light:

Duplex Service Overhead Insulated Cable

,

Overhead Insulated ABC Cable

,

Drop Aluminum Conductor

Insulation Material:
XLPE
Cable Conductor:
Aluminum
Standard:
ICEA S-76-474
Structure:
AAC/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE
Cable Conductor:
Aluminum
Standard:
ICEA S-76-474
Structure:
AAC/XLPE
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
1kv Duplex Service Drop Aluminum Conductor Overhead Insulated ABC Cable

1kv Duplex Service Drop Aluminum Conductor cable Overhead Insulated Cable ABC Cable ICEA S-76-474



Application:

Duplex Service Drop Aluminum Conductor cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75ºC maximum for polyethylene insulation or 90ºC maximum for cross linked insulation.



Structure

Conductor material: aluminum;

Insulation material: XLPE;



Temperature range
Minimum installation temperature: 0°C
Maximum operating temperature: +80°C
Minimum operating temperature: -25 °C

Minimum bending radius of circumscribed diameter
Installed cables: 6D ≤ 50 mm2
9D >50 mm2
4D Single Core
During installation: 9D ≥ 50 mm2
14D < 50 mm2
6D Single Core



1kv Duplex Service Drop Aluminum Conductor cable Overhead Insulated Cable ABC Cable ICEA S-76-474 Parameters:

Code Word Phase Conductors Bare Neutral Messenger Completed Cable Ampacity**
Size Strand Insulation Thickness Size Strand* Breaking Strength Diameter Weight XLP 90˚C Poly 75˚C
XLP Poly
AWG/kcmil inches AWG/kcmil lbs inches lbs/kft lbs/kft amps amps
AAC NEUTRAL MESSENGER
Pekingese 6 Solid 0.045 6 7/w 563 0.44 64 62 85 70
Collie 6 7/w 0.045 6 7/w 563 0.46 69 63 85 70
Dachshund 4 Solid 0.045 4 7/w 881 0.53 96 93 115 90
Spaniel 4 7/w 0.045 4 7/w 881 0.56 101 95 115 90
Doberman 2 7/w 0.045 2 7/w 1,350 0.68 153 146 150 120
Malamute 1/0 19/w 0.060 1/0 7/w 1,990 0.87 243 234 205 160





1kv Duplex Service Drop Aluminum Conductor cable Overhead Insulated Cable ABC Cable ICEA S-76-474 Products images:

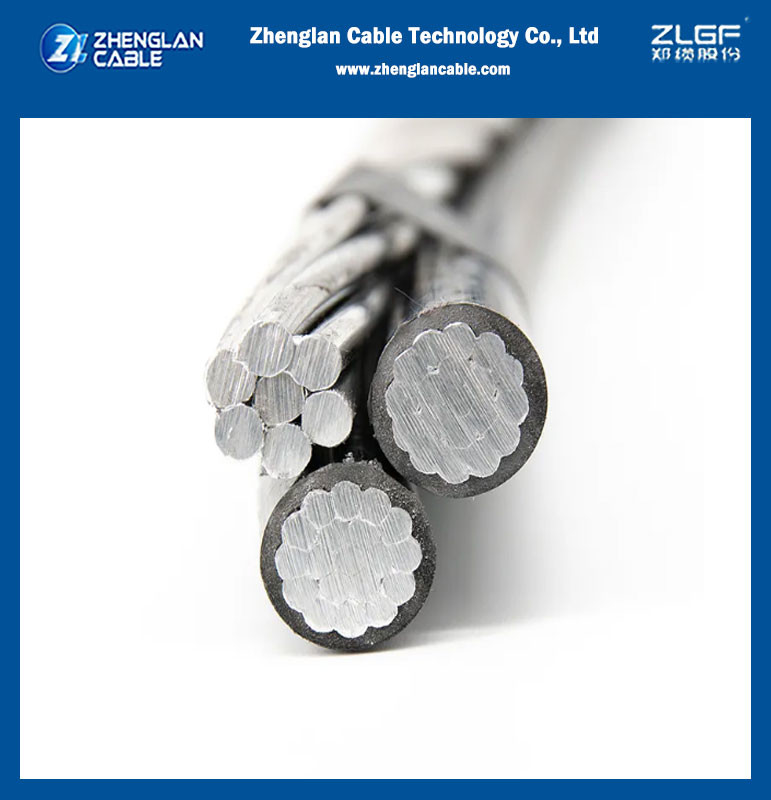

duplex service drop cable

1kv Duplex Service Drop Aluminum Conductor Overhead Insulated ABC Cable 1



Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
  • Strict quality control system, excellent quality with reasonable price.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
