Product Details
Place of Origin: China
Brand Name: Zhenglan cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: Overhead AAC Aluminum Conductor Cable
Payment & Shipping Terms
Minimum Order Quantity: 1ton
Price: 0.1-90USD/m
Packaging Details: Wooden drum, Iron frame wooden drum, Iron drum, as customer's request
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,, Western Union
Supply Ability: 10-30ton/day
Material: |
Aluminum Alloy Conductor |
Application: |
Overhead Transmission Use |
Packing Detail: |
Wooden Drum, Iron Frame Wooden Drum, As Customer's Request |
Port Of Delivery: |
Qingdao Port Or As Customer's Required |
Standard: |
BS3242 IEC60089 |
Test: |
100% Covered |
Jacket: |
NO |
Material: |
Aluminum Alloy Conductor |
Application: |
Overhead Transmission Use |
Packing Detail: |
Wooden Drum, Iron Frame Wooden Drum, As Customer's Request |
Port Of Delivery: |
Qingdao Port Or As Customer's Required |
Standard: |
BS3242 IEC60089 |
Test: |
100% Covered |
Jacket: |
NO |

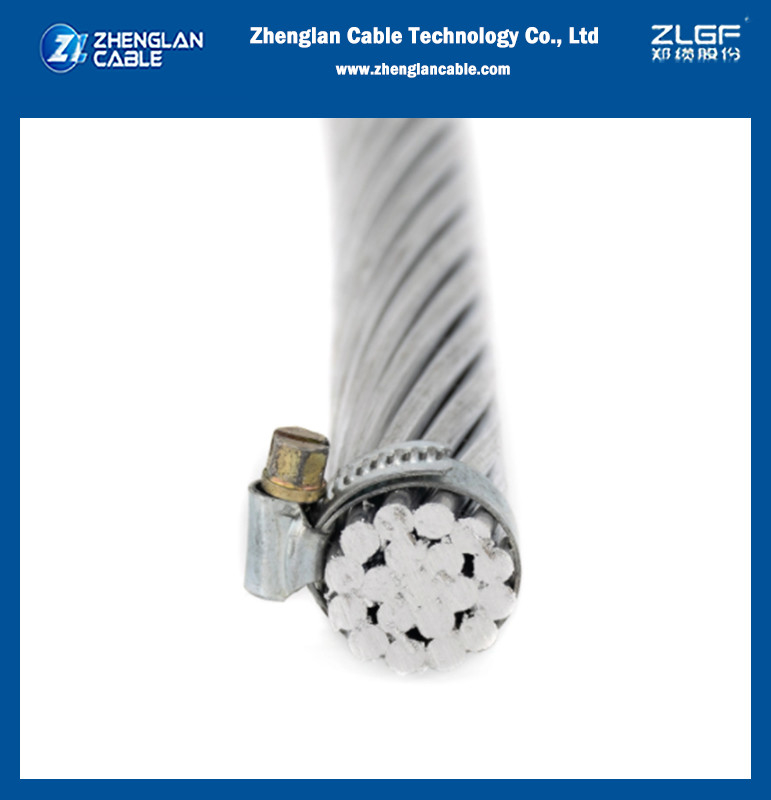

Overhead Transmission Bare Conductor AAAC 100mm2 7/3.3mm All Aluminum Alloy Conductor BS3242/IEC 61089 Standard
APPLICATION
All Aluminum Alloy Conductor is used in overhead electric power transmission and distribution lines with various grade voltages.They have been widely used in power transmission lines with various voltage levels, because they such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the place where special geographical features exist.
SERVICE PERFORMANCE
MATERIAL STANDARD
1. The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
2. The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
3. Electronic cable can be arranged according to the customers requirements for material standard, etc.
Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced.
CHARACTERISTICS:
1. Simple construction;
2. Easy installation and maintenance;
3. Lower price and large transmission capacity;
4. Better for long distance power transmission;
ELECTRICAL PROPERTIES:
Density@20℃ | 2.703 kg/dm |
Temperature Coefficient@20°C | 0.00403 (°C) |
Resistivity@20°C | 0.028264 |
Linear Expansivity | 23 x10-6 (°C |
Ambient Temperature | -5°C - 50°C |
Wind Pressure | 80 – 130kg/m2 |
Seismic Acceleration | 0.12 - 0.05g |
Isokeraunic Level | 10 – 18 |
Relative Humidity | 5 – 100% |
Density@20℃ | 2.703 kg/dm |
Temperature Coefficient@20°C | 0.00403 (°C) |
Resistivity@20°C | 0.028264 |
Linear Expansivity | 23 x10-6 (°C) |
IEC 61089
CODE |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
mm2 | No.×mm | mm | Kg/Km | KN | Ω/Km | A | |
10 | 10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 | 62 |
16 | 16 | 7/1.71 | 5.13 | 43.8 | 3.04 | 1.7896 | 84 |
25 | 25 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 | 110 |
40 | 40 | 7/2.70 | 8.1 | 109.4 | 6.8 | 0.7158 | 147 |
63 | 63 | 7/3.39 | 10.17 | 172.3 | 10.39 | 0.4545 | 195 |
100 | 100 | 19/2.59 | 12.95 | 274.8 | 17 | 0.2877 | 259 |
125 | 125 | 19/2.89 | 14.45 | 343.6 | 21.25 | 0.2302 | 297 |
160 | 160 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 | 345 |
200 | 200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 | 396 |
250 | 250 | 19/4.09 | 20.45 | 687.1 | 40 | 0.1151 | 454 |
315 | 315 | 37/3.29 | 23.03 | 867.9 | 51.97 | 0.0916 | 522 |
400 | 400 | 37/3.71 | 25.97 | 1102 | 64 | 0.0721 | 603 |
450 | 450 | 37/3.94 | 27.58 | 1239.8 | 72 | 0.0641 | 647 |
500 | 500 | 37/4.15 | 29.05 | 1377.6 | 80 | 0.0577 | 688 |
560 | 560 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 | 736 |
630 | 630 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 | 789 |
710 | 710 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 | 845 |
800 | 800 | 61/4.09 | 36.81 | 2207.4 | 128 | 0.0361 | 905 |
900 | 900 | 61/4.33 | 38.97 | 2483.3 | 144 | 0.0321 | 967 |
1000 | 1000 | 61/4.57 | 41.13 | 2759.2 | 160 | 0.0289 | 1026 |
1120 | 1120 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 | 1091 |
AAAC conductor-BS 3242 | ||||||
---|---|---|---|---|---|---|
Code | AL Nominal Area | Cu Nominal Area Equivalent | Total Area | Stranding | Overall Diameter | Weight |
mm^2 | mm^2 | mm^2 | No.Ω/mm | mm | kg/km | |
- | - | 6.45 | 11.7 | 7/1.47 | 4.41 | 32.2 |
Box | - | 9.68 | 18.8 | 7/1.85 | 5.55 | 51.7 |
Acacia | - | 12.9 | 21.9 | 7/2.08 | 6.24 | 66.1 |
Almond | 25 | 16.1 | 30.1 | 7/2.34 | 7.02 | 82.9 |
Ceda | 30 | 19.4 | 35.5 | 7/2.54 | 7.62 | 97.8 |
- | 40 | 22.6 | 42.2 | 7/2.77 | 8.31 | 116.4 |
Fir | 50 | 25.8 | 47.8 | 7/2.95 | 8.85 | 131.8 |
Hazel | 100 | 32.3 | 59.9 | 7/3.30 | 9.9 | 165 |
Pine | - | 38.7 | 71.7 | 7/3.61 | 10.83 | 197.7 |
- | - | 45.2 | 84.1 | 7/3.91 | 11.73 | 231.6 |
Willow | 150 | 48.4 | 89.8 | 7/4.04 | 12.12 | 247.5 |
- | 175 | 51.6 | 96.5 | 7/4.19 | 12.57 | 266.2 |
- | 300 | 58.1 | 108.8 | 7/4.45 | 13.35 | 299.8 |
Oak | - | 64.5 | 118.9 | 7/4.65 | 13.95 | 327.8 |
- | - | 80.6 | 118.8 | 19/2.82 | 14.1 | 327.6 |
Mulberry | - | 96.8 | 151.1 | 19/3.18 | 15.9 | 416.7 |
Ash | - | 113 | 180.7 | 19/3.48 | 17.4 | 498.1 |
Elm | - | 129 | 211 | 19/3.76 | 18.8 | 582.1 |
Poplar | - | 145 | 239 | 37/2.87 | 20.09 | 658.8 |
- | - | 161 | 270.8 | 37/3.05 | 21.35 | 746.7 |
Sycamore | - | 194 | 303 | 37/3.23 | 22.61 | 834.9 |
Upas | - | 226 | 362.1 | 37/3.53 | 24.71 | 998.6 |
- | - | 258 | 421.8 | 37/3.81 | 26.47 | 1163 |
Yew | - | - | 479.9 | 37/4.06 | 28.42 | 132 |
