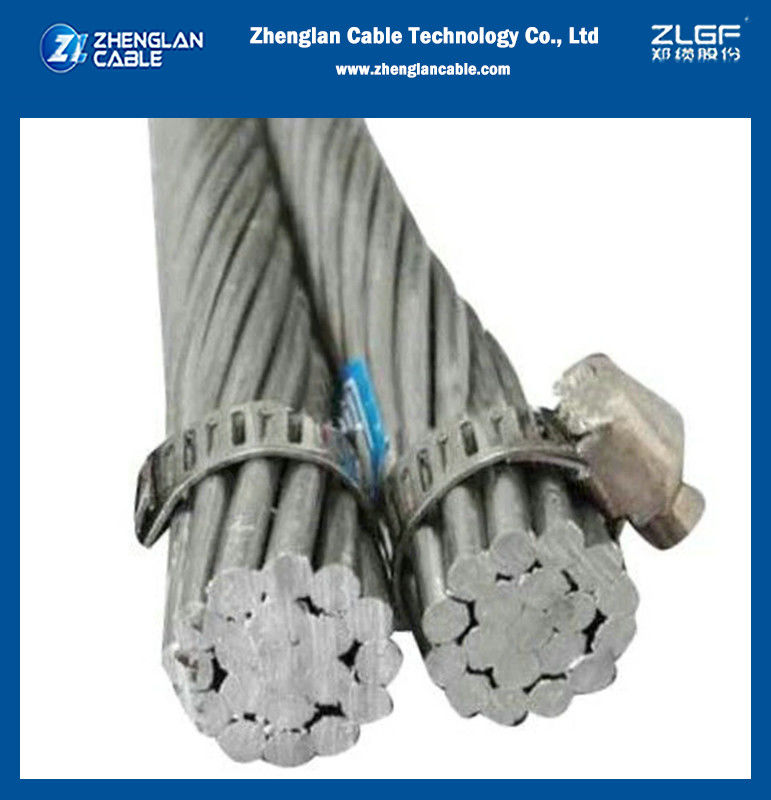

AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding

AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding
AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding
AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding

Large Image :  AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005, CE;
Model Number: AAAC Overhead Bare Conductor Wire
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 100KM/Month

AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding

Description
Material: Aluminium Alloy Size: AWG,mm2 Or Customized
Quality: 100% IEC Test Standard:: Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49
Standard: BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 Port: Shanghai Or Qingdao
High Light:

Overhead All Aluminum Alloy Bare Conductor

,

19 Stranding Overhead Bare Aluminum Conductor

,

AWG Bare Aluminum Alloy Conductor

AAAC Butte Canton Cairo Darien Elgin 19 strandingOverhead Bare Aluminum Alloy Conductor IEC DIN NFC BS ASTM Standard



Application:
AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favorable when ice and win loadings are low.



Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy. Midal manufactures and supply AAAC with different variants of electrical grade alloy type 6101 and 6201. one or more strands of hard drawn 1350 aluminium alloy.



Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Rated Voltage: 35kv/110kv/220kv/500kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Standard:
AAAC manufactured by us that meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc, NFC, SS -etc


Technical parameters

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
  mm2 No.x mm mm Kg/Km KN Ω/Km A
16 18.4 7/1.83 5.49 50.4 5.43 1.7896 86
25 28.8 7/2.29 6.87 78.7 8.49 1.1453 113
40 46 7/2.89 8.67 125.9 13.58 0.7158 151
63 72.5 7/3.63 10.89 198.3 21.39 0.4545 200
100 115 19/2.78 13.9 316.3 33.95 0.2877 266
125 144 19/3.10 15.5 395.4 42.44 0.2302 305
160 184 19/3.51 17.55 506.1 54.32 0.1798 355
200 230 19/3.93 19.65 632.7 67.91 0.1439 407
250 288 19/4.39 21.95 790.8 84.88 0.1151 466
315 363 37/3.53 24.71 998.9 106.95 0.0916 535
400 460 37/3.98 27.86 1268.4 135.81 0.0721 618
450 518 37/4.22 29.54 1426.9 152.79 0.0641 663
500 575 37/4.45 31.15 1585.5 169.76 0.0577 706
560 645 61/3.67 33.03 1778.4 190.14 0.0516 755
630 725 61/3.89 35.01 2000.7 213.9 0.0458 809
710 817 61/4.13 37.17 2254.8 241.07 0.0407 866
800 921 61/4.38 39.42 2540.6 271.62 0.0361 928
900* 1036 91/3.81 41.91 2861.1 305.58 0.0321 992
1000* 1151 91/4.01 44.11 3179 339.53 0.0289 1051
1120* 1289 91/4.25 46.75 3560.5 380.27 0.0258 1118
1250* 1439 91/4.49 49.39 3973.7 424.41 0.0231 1185


Product show:

AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding 0



AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding 1



AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding 2



Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.

AAAC Overhead Bare Aluminum Alloy Conductor AWG 19 Stranding 3
