Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2
Payment & Shipping Terms
Minimum Order Quantity: 3tons
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 100KM/Month
Material: |
Aluminium&ganvalnized Steel Wire |
Quality: |
100% IEC Test |
Standard:: |
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,Gost839 |
MOQ: |
3tons |
Material: |
Aluminium&ganvalnized Steel Wire |
Quality: |
100% IEC Test |
Standard:: |
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,Gost839 |
MOQ: |
3tons |
overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2
Application:
overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 are concentrically stranded conductor with one or more layers of hard drawn Aluminium wire on galvanized steel wire core which are coated with zinc with Class A / Class B Coating. The core can be single wire or stranded depending on the size of the conductors.
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Standard:
ACSR manufactured by us that meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc, NFC, SS -etc
overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 Features:
High Tensile strength;
Better sag properties;
Economic design;
Suitable for remote applications involving long spans
overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 Technical parameters
INDIAN STANDARD IS 398 (Part 2): 1996 | ||||||||
Nominal Aluminium | Stranding and Wire Diameter | Sectional Area of Aluminium | Total Sectional Area | Approximate Diameter | Approximate Mass | Calculated Resistance at 20°C Max. | Approximate Calculated Breaking Load | |
Aluminium | Steel | |||||||
mm2 | mm2 | mm2 | mm2 | mm2 | mm | kg/km | Q/km | kN |
10 | 6/1.50 | 1/1.50 | 10.6 | 12.37 | 4.5 | 43 | 2.78 | 3.97 |
18 | 6/1.96 | 1/1.96 | 18.1 | 21.12 | 5.88 | 73 | 1.618 | 6.74 |
20 | 6/2.11 | 1/2.11 | 20.98 | 24.48 | 6.33 | 85 | 1.394 | 7.61 |
30 | 6/2.59 | 1/2.59 | 31.61 | 36.88 | 7.77 | 128 | 0.9289 | 11.12 |
50 | 6/3.35 | 1/3.35 | 52.88 | 61.7 | 10.05 | 214 | 0.5524 | 18.25 |
80 | 6/4.09 | 1/4.09 | 78.83 | 91.97 | 12.27 | 319 | 0.3712 | 26.91 |
100 | 6/4.72 | 7/1.57 | 105 | 118.5 | 14.15 | 394 | 0.2792 | 32.41 |
150 | 30/2.59 | 7/2.59 | 158.1 | 194.9 | 18.13 | 726 | 0.1871 | 67.34 |
200 | 30/3.00 | 7/3.00 | 212.1 | 261.5 | 21 | 974 | 0.139 | 89.67 |
400 | 42/3.50 | 7/1.96 | 404.1 | 425.2 | 26.88 | 1281 | 0.07311 | 88.79 |
420 | 54/3.18 | 7/3.18 | 428.9 | 484.5 | 28.62 | 1621 | 0.06868 | 130.32 |
520 | 54/3.53 | 7/3.53 | 528.5 | 597 | 31.77 | 1998 | 0.05595 | 159.6 |
560 | 42/4.13 | 7/2.30 | 562.7 | 591.7 | 31.68 | 1781 | 0.03231 | 120.16 |

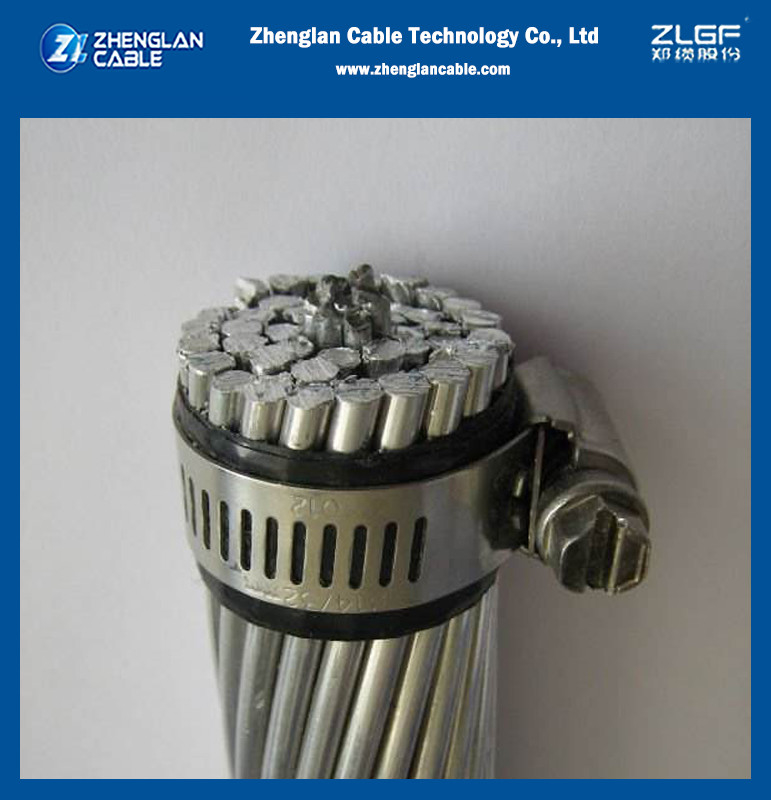

overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 Product show:
Why you choose us?
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
