Product Details
Place of Origin: China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Price: 0.5-100USD/m
Packaging Details: Wooden drum, wood and steel drum, as customer's request
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, , Western Union
Name: |
2Cx25mm2 XLPE Insulated PVC Sheathed Aluminum Cable Unarmored Aluminum Power Cable |
Number Of Cores: |
2cores |
Material: |
Aluminum |
Insulated: |
XLPE |
Sheath: |
PVC |
Sheath Color: |
Black |
Certificate:: |
CCC,ISO9001,ISO14001 |
Length: |
As Customer Required |
Name: |
2Cx25mm2 XLPE Insulated PVC Sheathed Aluminum Cable Unarmored Aluminum Power Cable |
Number Of Cores: |
2cores |
Material: |
Aluminum |
Insulated: |
XLPE |
Sheath: |
PVC |
Sheath Color: |
Black |
Certificate:: |
CCC,ISO9001,ISO14001 |
Length: |
As Customer Required |

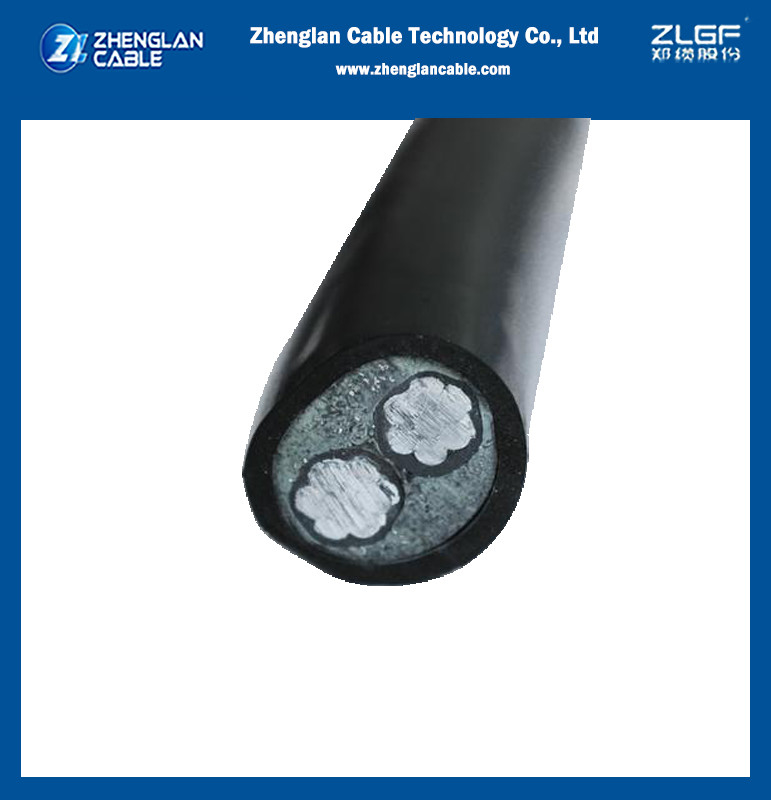

2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable
Application
2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable are generally used for fi xed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.
Conductor: Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation: PVC(Polyvinyl Chloride) type TI1
Colour Code 1 Core : Brown 2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers
Filler(optional) PVC or Polypropylene yarn Binder Tape(optional) Polyester (Mylar) tape
2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable Technical parameter
| Conductor dimensions (mm2) | Insulation thickness (mm) | Nonmetallic sheath, unarmored cable | |||||
| Sheath thickness mm | Outer diameter (approximate) mm | Cable weight (Kg/km) | |||||
| 2C | 3C | 2C | 3C | 2C | 3C | ||
| 1.5 | 0.8 | 1.8 | 1.8 | 10.4 | 10.8 | 113 | 124 |
| 2.5 | 0.8 | 1.8 | 1.8 | 11.2 | 11.7 | 128 | 144 |
| 4 | 1 | 1.8 | 1.8 | 12.9 | 13.6 | 161 | 189 |
| 6 | 1 | 1.8 | 1.8 | 13.9 | 14.7 | 193 | 221 |
| 10 | 1 | 1.8 | 1.8 | 16.2 | 17.1 | 254 | 303 |
| 16 | 1 | 1.8 | 1.8 | 18.4 | 19.5 | 331 | 412 |
| 25 | 1.2 | 1.8 | 1.8 | 21.2 | 22.5 | 445 | 547 |
| 35 | 1.2 | 1.8 | 1.8 | 23.6 | 21.4 | 533 | 652 |
| 50 | 1.4 | 1.8 | 1.8 | 26.8 | 28 | 636 | 837 |
| 70 | 1.4 | 1.9 | 2 | 23.4 | 27.2 | 770 | 1071 |
| 95 | 1.6 | 2 | 2.1 | 27.2 | 31.4 | 1011 | 1412 |
| 120 | 1.6 | 2.1 | 2.2 | 29.8 | 34.3 | 1217 | 1701 |
| 150 | 1.8 | 2.2 | 2.3 | 32.6 | 37.9 | 1486 | 2093 |
| 185 | 2 | 2.4 | 2.5 | 38.6 | 42.3 | 1857 | 2571 |
| 240 | 2.2 | 2.6 | 2.7 | 43.8 | 49.7 | 2351 | 3296 |
| 300 | 2.4 | 2.7 | 2.9 | 48.8 | 52.8 | 2854 | 4016 |
| 400 | 2.6 | 3.1 | 59.8 | 5165 | |||
| 500 | 2.8 | 3.4 | 74.2 | 6431 | |||
2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable show
About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Our main products are
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.
