Duplex Service Drop Cable Shepherd 1x6awg Aerial Bundled ICEA S-76-474

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015,ISO 14001:2005; CCC

Model Number: Duplex service drop cable Shepherd 1x6awg+1x6awg aerial bundled cable ICEA S-76-474

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 15,000 KM/Year

Get Best Price
High Light:

Duplex Service Drop Cable Shepherd

,

S-76-474 Overhead Insulated Cable

,

1x6awg Aerial Bundled Cable

Insulation Material:
XLPE
Cable Conductor:
Aluminum
Standard:
GB/T 12527-2008, IEC60502-1, AS/NZS 3560.1
Structure:
AAC/XLPE+ACSR
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Insulation Material:
XLPE
Cable Conductor:
Aluminum
Standard:
GB/T 12527-2008, IEC60502-1, AS/NZS 3560.1
Structure:
AAC/XLPE+ACSR
Voltage:
0.6/1KV
Port:
Qingdao Or Shanghai
Duplex Service Drop Cable Shepherd 1x6awg Aerial Bundled ICEA S-76-474

Duplex service drop cable Shepherd 1x6awg+1x6awg aerial bundled cable ICEA S-76-474



Application:



For aerial reticulating to residential, rural and uncleared  areas where reliability, safety and low installation costs  are required.
Other benefits include: Reduction of bushfire hazards and frequency of tree lopping.



Structure

Conductor material: aluminum;

Insulation material: XLPE;



Temperature range
Minimum installation temperature: 0°C
Maximum operating temperature: +80°C
Minimum operating temperature: -25 °C

Minimum bending radius of circumscribed diameter
Installed cables: 6D ≤ 50 mm2
9D >50 mm2
4D Single Core
During installation: 9D ≥ 50 mm2
14D < 50 mm2
6D Single Core



Duplex service drop cable Shepherd 1x6awg+1x6awg aerial bundled cable ICEA S-76-474 Parameters:

Code Word Phase Conductors Bare Neutral Messenger Completed Cable Ampacity**
Size Strand Insulation Thickness Size Strand* Breaking Strength Diameter Weight XLP 90˚C Poly 75˚C
XLP Poly
AWG/kcmil inches AWG/kcmil lbs inches lbs/kft lbs/kft amps amps
ACSR NEUTRAL MESSENGER
Setter 6 Solid 0.045 6 6/1 1,190 0.46 75 73 85 70
Shepherd 6 7/w 0.045 6 6/1 1,190 0.48 78 75 85 70
Eskimo 4 Solid 0.045 4 6/1 1,860 0.55 114 112 115 90
Terrier 4 7/w 0.045 4 6/1 1,860 0.58 119 114 115 90
Chow 2 7/w 0.045 2 6/1 2,850 0.70 182 175 150 120
Bull 1/0 19/w 0.060 1/0 6/1 4,380 0.90 289 280 205 160



Duplex service drop cable Shepherd 1x6awg+1x6awg aerial bundled cable ICEA S-76-474​ Products images:

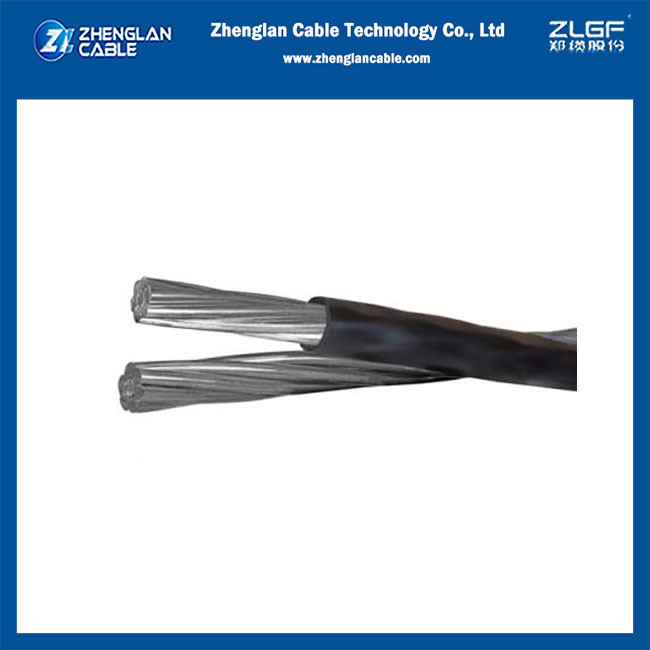

Duplex Service Drop Cable Shepherd 1x6awg Aerial Bundled ICEA S-76-474 0

Duplex Service Drop Cable Shepherd 1x6awg Aerial Bundled ICEA S-76-474 1



Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
  • Strict quality control system, excellent quality with reasonable price.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
