AWA Armored CWS Power Cable Screened MV Copper 1x500Mm2 IEC 60502-2

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: ISO

Model Number: AWA Armored CWS screened MV copper cable medinum voltage power cable 1x500(/16)mm2 IEC60502-2

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: negotiable

Packaging Details: wood and steel drum or as per request

Delivery Time: depends on actual quantity

Payment Terms: L/C, T/T

Supply Ability: 60000m/day

Get Best Price
High Light:

AWA Armored CWS Power Cable

,

IEC 60502 2 Power Cable

,

Screened Copper Power Cable

Material:
Oxygen Free Bare Copper Circular Shape
Out Sheath Color:
UV-resistant Black
Core:
1C
Pecking Length:
As Per Request
Screen:
Copper Wire Screen With Copper Tape Wrapped
Armor:
Aluminum Wire Armored
Name:
AWA Armored CWS Screened MV Copper Cable Medinum Voltage Power Cable 1x500(/16)mm2 IEC60502-2
Referece Standard:
IEC60502-2
Material:
Oxygen Free Bare Copper Circular Shape
Out Sheath Color:
UV-resistant Black
Core:
1C
Pecking Length:
As Per Request
Screen:
Copper Wire Screen With Copper Tape Wrapped
Armor:
Aluminum Wire Armored
Name:
AWA Armored CWS Screened MV Copper Cable Medinum Voltage Power Cable 1x500(/16)mm2 IEC60502-2
Referece Standard:
IEC60502-2
AWA Armored CWS Power Cable Screened MV Copper 1x500Mm2 IEC 60502-2

AWA Armored CWS screened MV copper cable medinum voltage power cable 1x500(/16)mm2 IEC60502-2



APPLICATIONS:

These cables are designed for distribution of electrical power with frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.



STANDARD:

IEC 60502-2(3.6/6KV to 18/30KV)

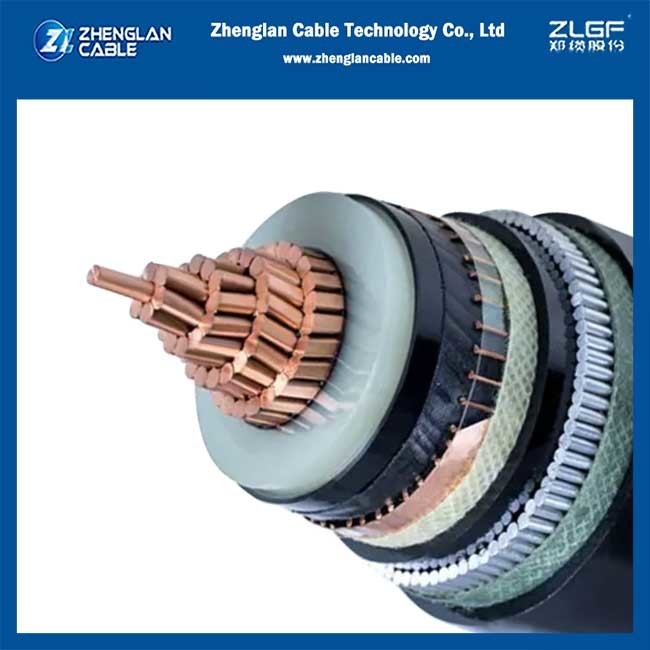

AWA Armored CWS screened MV copper cable medinum voltage power cable 1x500(/16)mm2 IEC60502-2​ Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.



Conductors

oxygen free bare stranded copper conductors circular shape, compacted complying to IEC 60228 class 2.

Conductor Screen

Semi-conducting crosslinkable compound adopt simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field.

Insulation

Cross linked polyethylene or XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

Semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

The metallic layer shall consist of either copper tapes or a concentric layer of copper wires or a combination of tapes and wires.

Separation Sheath:

The separation sheath comprises a layer of extruded PVC, PE or LSZH. The nominal thickness is calculated by 0.02Du + 0.6mm where Du is the fictitious diameter under the sheath in mm. The nominal separation sheath thickness shall not be less than 1.2mm.
Armour:

The armour consists of round aluminium wire

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE  complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.



Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths.





AWA Armored CWS screened MV copper cable medinum voltage power cable 1x500(/16)mm2 IEC60502-2​ ​reference technical parameters

Nom. Cross- Section Area Nom. Insulation Thickness Metallic Screen Area Nom.Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
mm² mm mm² mm mm mm mm kg/km
70 4.5 16 1.2 1.6 1.9 31.7 1970
95 4.5 16 1.2 2 2 34.6 2370
120 4.5 16 1.2 2 2.1 36.8 2670
150 4.5 25 1.2 2 2.1 38.4 3020
185 4.5 25 1.2 2 2.2 40.8 3420
240 4.5 25 1.2 2 2.3 43.7 4050
300 4.5 25 1.2 2 2.3 46.1 4680
400 4.5 35 1.3 2.5 2.5 50.7 5970



AWA Armored CWS screened MV copper cable medinum voltage power cable 1x500(/16)mm2 IEC60502-2​  images

single core MV cable 1x150



18/30KV 1x185/25mm2 cu/xlpe/cws/lszh-st7 MV power cable single core medium voltage copper cable



AWA Armored CWS screened MV copper cable medinum voltage power cable 1x500(/16)mm2 IEC60502-2​​​ ​​​ Package

AWA Armored CWS Power Cable Screened MV Copper 1x500Mm2 IEC 60502-2 2



Cable testing

AWA Armored CWS Power Cable Screened MV Copper 1x500Mm2 IEC 60502-2 3
