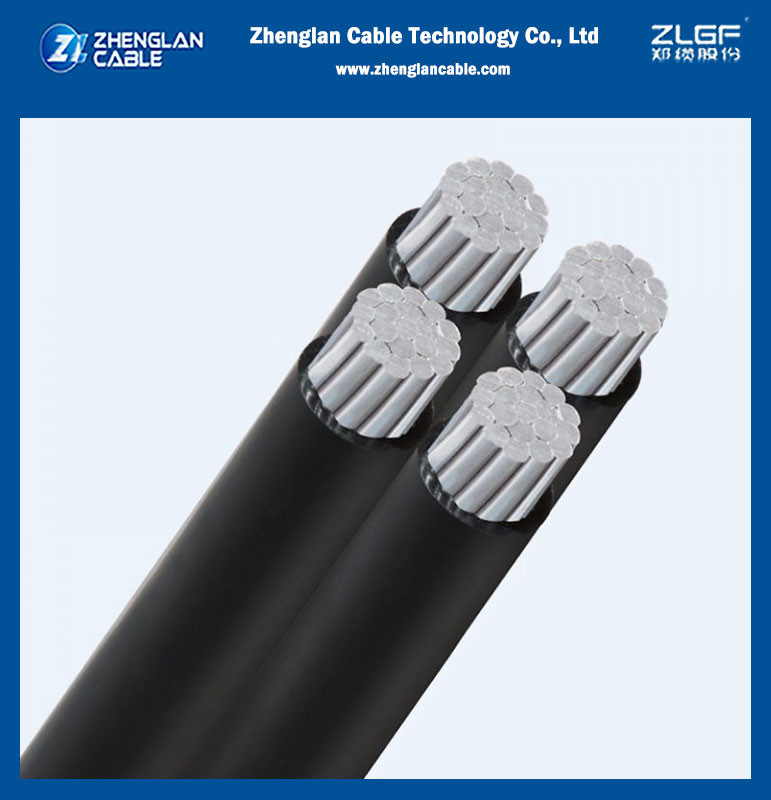

Al Pvc XLPE Insulated Cables Aluminium Wire Conductor Sheath

AL/XLPE/PVC CABLE Aluminium Wire Conductor XLPE Insulated PVC sheath CABLE

Application:

Construction:
Conductor: Class 2 stranded aluminum as per IEC 60228 or as per ASTMB230/230M
Insulation: XLPE material and thickness shall be as per IEC 60502-1 rated for 90°C continuous operation.

Outer Sheath: PVC Type ST2 as per IEC 60502-1 or low smoke Halogen free Polyolefin ST7.

Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, UV Resistance PVC, Low Smoke Zero Halogen are available on special request. Also, special sheathing materials such as MDPE or HDPE are available on request.

Operating characteristics
1. Cable laying temperature: ≥0°C
2. Cable conductor long-term allowable working temperature:≤90°C
3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm

Note: D is actual outer diameter of the cable

AL/XLPE/PVC CABLE Aluminium Wire Conductor XLPE Insulated PVC sheath CABLE​ Table:

0.6/1(1.2kv) power cable aluminum cable xlpe insulated lszh sheathed IEC60502-1, IEC60332-1​ Products show:

Why Choose Zhenglan Cable:

• OEM/ODM services provided
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
• Registered capital of $30 million and factory covers an area of 60,000㎡
• Advanced test equipment and procedures, 100% inspection before factory
• Enough stocks and the higest efficient shipping time guarranteed
• Professional pre-sales and after-sales services provided
