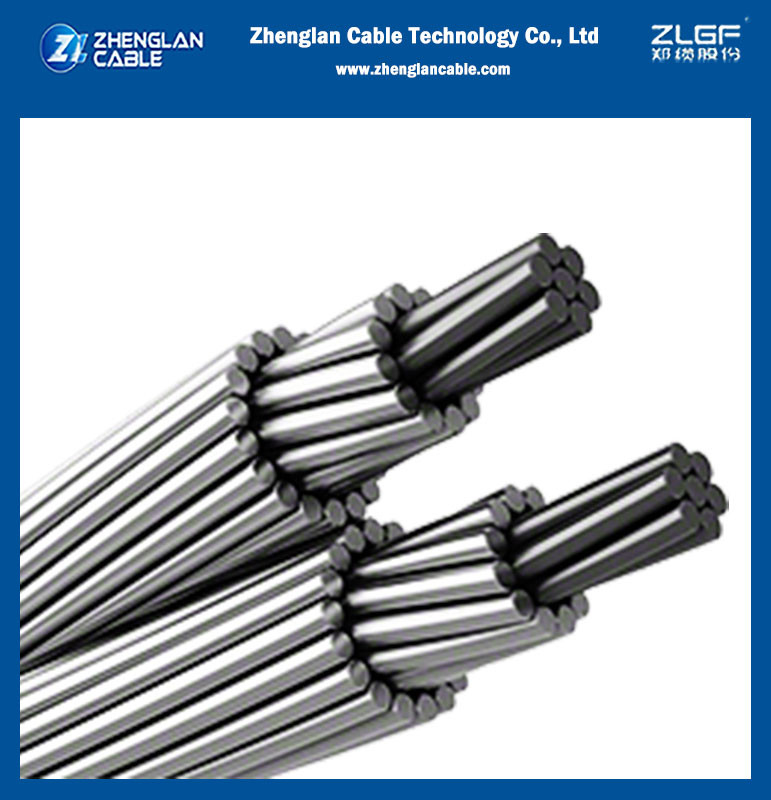

ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor

ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor
ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor
ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor

Large Image :  ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: ACSR Bare Conductor(Area AL: 13.3mm2 Steel: 2.22mm2)
Payment & Shipping Terms:
Minimum Order Quantity: 500 meters
Price: 0.1-100USD/m
Packaging Details: Wooden drum, wood and steel drum, as customer's requirements
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10-30ton/day

ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor

Description
Material: Aluminum/Steel Core: Normal Or Customized
Cable Drum Length: Customized Characted: Bare Conductor
Total Area: 15.27~1045.58 Standard: ASTM B 232/B 232m
Conductor Temperature: 80°C
High Light:

Bare Electrical Aluminum Cable

,

232m Bare Aluminum Conductor Cable

,

Turkey ACSR Conductors

ASTM B 232/B 232m Turkey ACSR conductors Bare Electrical Aluminum Cable Outdoor Used



APPLICATION

ACSR Aluminum conductor consists of aluminium and galvanized steel, stranded in concentric layers.. Galvanized steel core consist normally of 7, 19, 37 or 61 wires. The diameters of steel and aluminium wires can be the same, or different.
ACSR Aluminum Conductor is available in a wide range of steel, containing carbon from 0.5% to 0.85 %. The higher strength ACSR
The principal advantage of these conductors are high tensile strength so that they are used for longer spans with less supports. they are used for river crossings, overhead ground wires, installations involving extra long spans etc.



STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.



Key Benefits
• ACSR Conductor has high Tensile Strength.
• Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete
cable with grease





SERVICE CONDITIONS

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%





Bare ACSR Conductor DIN 48204

Area Standing and wire diameter Overall diameter   Nominal breaking load Maximum resistance at 20°C Current Rating
Nominal. Actual Total.
Al/Steel-- Al Steel Total Aluminum Steel
mm2 mm2 mm2 mm mm mm kg/km daN Ω/km A
16/2.5 15.1515 2.22 18.1818 6/1.80 1/1.80 5.55 62 595 2.22222 105
25/4.0 24.2424 4.44 28.2828 6/2.25 1/2.5 7.77 97 920 1.11111 140
35/6.0 34.3434 6.66 40.4040 6/2.70 1/2.70 8.88 140 1265 1.11111 170
44/32.0 44.4444 32.3232 76.7676 14/2.00 7/2.40 11.1111 372 4500 1.11111 220
50/8.0 48.4848 8.88 56.5656 6/3.20 1/3.20 10.1010 196 1710 1.11111 210
50/30 51.5151 30.3030 81.8181 12/2.33 7/2.33 12.1212 378 4380 1.11111 223
70/12 70.7070 11.1111 81.8181 26/1.85 7/1.44 12.1212 284 2680 0.00000 290
95/15 94.9494 15.1515 110.110110 26/2.15 7/1.67 14.1414 383 3575 0.00000 350
95/55 96.9696 56.5656 153.153153 12/3.20 7/3.20 16.1616 712 7935 0.00000 352
105/75 106.106106 76.7676 182.182182 14/3.10 9/2.25 18.1818 891 10845 0.00000 385
120/20 121.121121 20.2020 141.141141 26/2.44 7/1.90 16.1616 494 4565 0.00000 410
120/70 122.122122 71.7171 193.193193 12/3.60 7/3.60 18.1818 90 10000 0.00000 410
125/30 128.128128 30.3030 158.158158 30/2.33 7/2.33 16.1616 591 5760 0.00000 425
150/25 149.149149 24.2424 173.173173 26/2.70 7/2.10 17.1717 605 5525 0.00000 470
170/40 172.172172 40.4040 212.212212 30/2.70 7/2.70 19.1919 794 7675 0.00000 520
185/30 184.184184 30.3030 214.214214 26/3.00 7/2.33 19.1919 746 6620 0.00000 535
210/35 209.209209 34.3434 243.243243 26/3.20 7/2.49 20.2020 850 7490 0.00000 590
210/50 212.212212 50.5050 262.262262 30/3.00 7/3.00 21.2121 981 9390 0.00000 610
230/30 231.231231 30.3030 261.261261 24/3.50 7/2.33 21.2121 877 7310 0.00000 630
240/40 243.243243 40.4040 282.282282 26/3.45 7/2.68 22.2222 987 8640 0.00000 645
265/35 264.264264 34.3434 298.298298 24/3.74 7/2.49 22.2222 1002 8305 0.00000 680
300/50 304.304304 50.5050 354.354354 26/3.86 7/3.00 24.2424 1236 10700 0.00000 740
305/40 305.305305 40.4040 344.344344 54/2.68 7/2.68 24.2424 1160 9940 0.00000 740
340/30 339.339339 30.3030 369.369369 48/3.00 7/2.33 25.2525 1180 9290 0.00000 790
380/50 382.382382 50.5050 432.432432 54/3.00 7/3.00 27.2727 1453 12310 0.00000 840
385/35 386.386386 34.3434 420.420420 48/3.20 7/2.49 27.2727 1344 10480 0.00000 850
435/55 434.434434 59.5959 491.491491 54/3.20 7/3.20 29.2929 1653 13645 0.00000 900
450/40 449.449449 40.4040 488.488488 48/3.45 7/2.68 29.2929 1561 12075 0.00000 920
490/65 490.490490 64.6464 554.554554 54/3.40 7/3.40 31.3131 1866 15310 0.00000 960
495/35 494.494494 34.3434 528.528528 45/3.74 7/2.49 30.3030 1646 12180 0.00000 968
510/45 510.510510 45.4545 556.556556 48/3.68 7/2.87 31.3131 1778 13665 0.00000 980
550/70 550.550550 71.7171 621.621621 54/3.60 7/3.60 32.3232 2092 17060 0.00000 1020
560/50 562.562562 50.5050 611.611611 48/3.86 7/3.00 32.3232 1954 14895 0.00000 1040
570/40 566.566566 40.4040 610.610610 45/4.00 7/2.68 32.3232 1888 13900 0.00000 1040
650/45 698.698698 45.4545 653.653653 45/4.30 7/2.87 34.3434 2163 15552 0.00000 1280
680/85 679.679679 86.8686 765.765765 54/4.00 19/2.40 36.3636 2570 21040 0.00000 1150
1045/45 1046.10461046 45.4545 1091.10911091 72/4.30 7/2.87 43.4343 3249 21787 0.00000 1570



Product show

ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor 0ASTM Bare Electrical Aluminum Cable 232m Turkey ACSR Conductors Outdoor 1



Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
