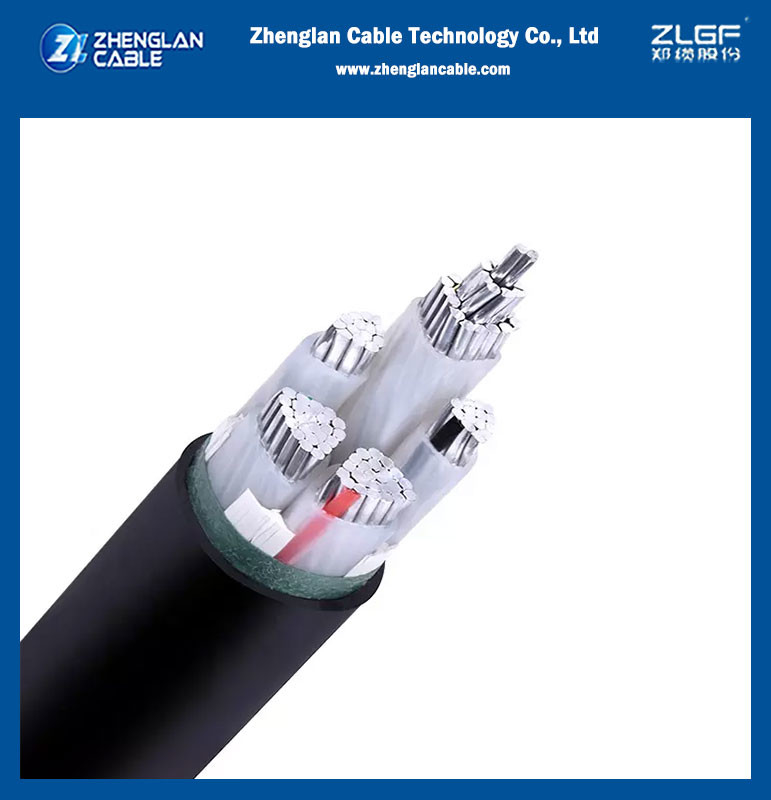

4x70sqmm XLPE Insulated PVC Sheathed Power Cable Transmit Aluminum Conductor

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005,

Model Number: LV UG Cable

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Price: negotiate

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 12 days

Payment Terms: L/C, T/T, Western Union

Get Best Price
High Light:

Aluminum Conductor PVC Sheathed Power Cable

,

4x70sqmm PVC Sheathed Power Cable

,

1000V PVC Sheathed Power Cable

Material:
Al
Application:
Electricity Supply
Insulation:
XLPE
Out Sheath Color:
Black Or Customized
Core:
1,2,3,4,5
Characted:
Unarmoured
Jacket:
Pvc
Voltage:
600/1000V
Material:
Al
Application:
Electricity Supply
Insulation:
XLPE
Out Sheath Color:
Black Or Customized
Core:
1,2,3,4,5
Characted:
Unarmoured
Jacket:
Pvc
Voltage:
600/1000V
4x70sqmm XLPE Insulated PVC Sheathed Power Cable Transmit Aluminum Conductor

LV 4x70sqmm Aluminum conductor,XLPE insulated,PVC sheathed power cable transmit and distribute electrical energy




Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.



Structure
Conductor: Copper/Al
Insulation: XLPE/PVC
Inner sheath:PVC/LSZH/PE
Outer sheath: PVC/LSZH/PE

Operation characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Construction:



Conductors :Soild, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation :XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code

Colour Code (1) :

1 Core : Red or Black

2 Cores : Red, Black

3 Cores : Red, Yellow, Blue

4 Cores : Red, Yellow, Blue, Black

5 Cores : Red, Yellow, Blue, Black, Green Above

5 Cores : Black Cores with White numerals

Colour Code (2) :

1 Core : Brown or Blue

2 Cores : Brown or Blue

3 Cores : Brown, Black, Grey

4 Cores : Blue, Brown, Black, Grey

5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above

5 Cores : Black Cores with White numerals



Assembly /Inner Sheath

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic

fillers and the assembly is bedded with an extruded layer of PVC. In case of non- armoured cables, this layer may be omitted;

Armour

Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346.

Single core cables shall be Aluminium wire armour.

Aluminum/Steel Tapes applied helically over the bedding of multi-core cables

as per IEC 60502.

Outer Sheath

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.



Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to

IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.



Cable Parameters:

Four cores(Galvanized steel wire armoured)

Nominal
Area
Approx Conductor Diameter Nominal Insulation thickness Nominal bedding thickness Nominal Steel Wire dia. Nominal Sheath thickness Approx. Overall Diameter Approx.
Weight
mm² mm mm mm mm mm mm Kg/Km
4x1.5 1.6 0.7 1 0.9 1.8 15 415
4x2.5 2 0.7 1 0.9 1.8 17.5 490
4x4 2.6 0.7 1 0.9 1.8 19 600
4x6 3.1 0.7 1 0.9 1.8 20 730
4x10 4 0.7 1 1.25 1.8 23 970
4x16 5 0.7 1 1.6 1.8 26 1520
4x25 6.3 0.9 1 1.6 1.8 29 2010
4x35 7.4 0.9 1 1.6 1.9 31 2560
4x50 8.8 1 1 1.6 2.1 36 3350
4x70 10.6 1.1 1.2 2 2.2 40 4680
4x95 12.4 1.1 1.2 2 2.4 44 5710
4x120 14 1.2 1.4 2.5 2.5 50 7500
4x150 15.5 1.4 1.4 2.5 2.6 55 9010
4x185 17.4 1.6 1.4 2.5 2.8 61 10820
4x240 20.3 1.7 1.6 2.5 3.1 69 13630
4x300 22.7 1.8 1.6 2.5 3.2 75 16820
4x400 25.4 2 1.8 3.15 3.4 83 22230
