Product Details
Place of Origin: China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Payment & Shipping Terms
Minimum Order Quantity: 500 meters
Packaging Details: Wooden drum, wood and steel drum, as customer's request
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, , Western Union
Model Number: |
YJV |
Number Of Cores: |
5 Cores |
Material: |
CU/AL |
Application: |
Underground |
Certificate:: |
CCC,ISO9001,ISO14001 |
Color: |
Black |
Sheath: |
PVC |
Length: |
As Customer Required |
Insulated: |
XLPE |
Rated Voltage: |
0.6/1KV |
Model Number: |
YJV |
Number Of Cores: |
5 Cores |
Material: |
CU/AL |
Application: |
Underground |
Certificate:: |
CCC,ISO9001,ISO14001 |
Color: |
Black |
Sheath: |
PVC |
Length: |
As Customer Required |
Insulated: |
XLPE |
Rated Voltage: |
0.6/1KV |

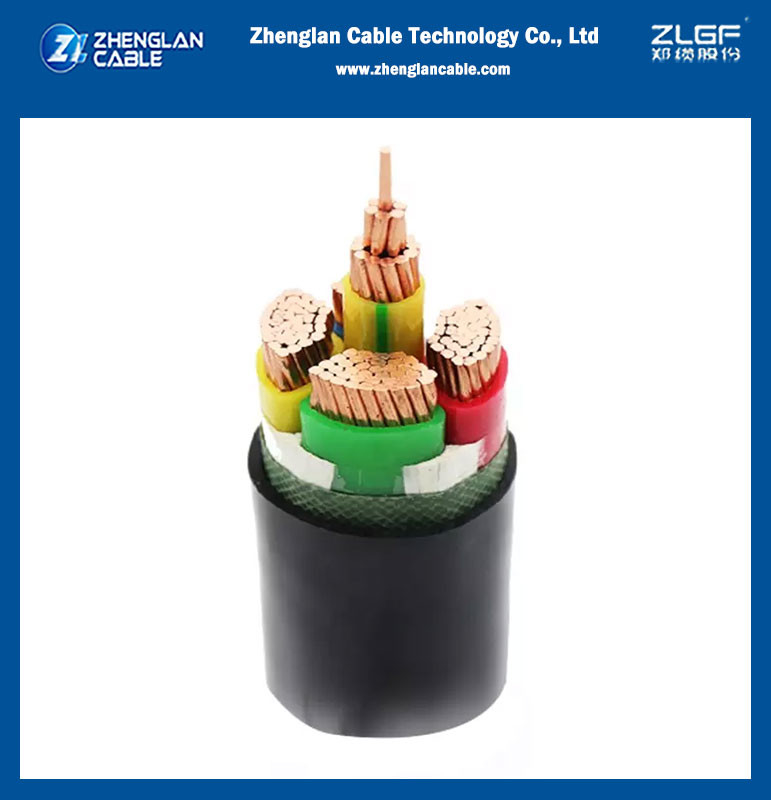

Multi-core underground electrical unarmoured PVC power cable 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm IEC 60502 VDE0276
Application
The unarmoured cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.
Standard
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request
Operating characteristics
1.Cable laying temperature: ≥0°C
2.Cable conductor long-term allowable working temperature:≤90°C
3.Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4.Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable
Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
Insulation
XLPE material and thickness shall be as per IEC 60502-1, rated for 90℃ continuous operation
Colours for core identification
Single core : natural ( black on request )
Two core: red ,black
Three core : red , yellow and blue
Four core : red , yellow , blue and black
Five core : red , yellow , blue , black and yellow / green
Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Fire Resistant Cable Technical parameter
| Nom. Cross-section of conductor | Insulation Thickness | Sheath | Approx. | Approx | Max. D.C. Resistance of Conductor (20°C) | Test Voltage | Current Rating | |
| mm2 | mm | Thickness | O.D. | Weight | Ω/km | A.C | ||
| mm | mm | kg/km | kV/5min | In air(A) | In soil(A) | |||
| 4×1.5 | 0.7 | 1.8 | 14.4 | 241 | 12.1 | 3.5 | 20 | 27 |
| 4×2.5 | 0.7 | 1.8 | 15.4 | 295 | 7.41 | 3.5 | 26 | 35 |
| 4×4 | 0.7 | 1.8 | 16.5 | 369 | 4.61 | 3.5 | 34 | 45 |
| 4×6 | 0.7 | 1.8 | 17.8 | 463 | 3.08 | 3.5 | 43 | 57 |
| 4×10 | 0.7 | 1.8 | 20.9 | 667 | 1.83 | 3.5 | 60 | 77 |
| 4×16 | 0.7 | 1.8 | 23.4 | 930 | 1.15 | 3.5 | 83 | 105 |
| 4×25 | 0.9 | 1.8 | 27.1 | 1351 | 0.727 | 3.5 | 105 | 125 |
| 4×35 | 0.9 | 1.8 | 29.5 | 1772 | 0.524 | 3.5 | 125 | 155 |
| 4×50 | 1 | 1.9 | 38.4 | 2380 | 0.387 | 3.5 | 160 | 185 |
| 4×70 | 1.1 | 2 | 43.2 | 3302 | 0.268 | 3.5 | 200 | 225 |
| 4×95 | 1.1 | 2.2 | 47.3 | 4330 | 0.193 | 3.5 | 245 | 270 |
| 4×120 | 1.2 | 2.3 | 52.5 | 5374 | 0.153 | 3.5 | 285 | 310 |
| 4×150 | 1.4 | 2.5 | 58.3 | 6655 | 0.124 | 3.5 | 325 | 345 |
| 4×185 | 1.6 | 2.7 | 64.7 | 8246 | 0.0991 | 3.5 | 375 | 390 |
| 4×240 | 1.7 | 2.9 | 73.1 | 10569 | 0.0754 | 3.5 | 440 | 450 |
| 4×2.5+1×1.5 | 0.7 | 1.8 | 16.5 | 313 | 7.41 | 3.5 | 26 | 35 |
| 4×4+1×2.5 | 0.7 | 1.8 | 17.7 | 424 | 4.61 | 3.5 | 34 | 45 |
| 4×6+1×4 | 0.7 | 1.8 | 19.1 | 535 | 3.08 | 3.5 | 43 | 57 |
| 4×10+1×6 | 0.7 | 1.8 | 22.1 | 760 | 1.83 | 3.5 | 60 | 77 |
| 4×16+1×10 | 0.7 | 1.8 | 25.1 | 1071 | 1.15 | 3.5 | 83 | 105 |
| 4×25+1×16 | 0.7 | 1.8 | 29 | 1556 | 0.727 | 3.5 | 105 | 125 |
| 4×35+1×16 | 0.9 | 1.9 | 31.4 | 1976 | 0.524 | 3.5 | 125 | 155 |
| 4×50+1×25 | 1 | 2.1 | 36 | 2689 | 0.387 | 3.5 | 160 | 185 |
| 4×70+1×35 | 1.1 | 2.2 | 41.1 | 3719 | 0.268 | 3.5 | 200 | 225 |
| 4×95+1×50 | 1.1 | 2.4 | 46.3 | 4903 | 0.193 | 3.5 | 245 | 270 |
| 4×120+1×70 | 1.2 | 2.5 | 51 | 6165 | 0.153 | 3.5 | 285 | 310 |
| 4×150+1×70 | 1.4 | 2.7 | 55.8 | 7431 | 0.124 | 3.5 | 325 | 345 |
| 4×185+1×95 | 1.6 | 2.9 | 62.1 | 9192 | 0.0991 | 3.5 | 375 | 390 |
| 4×240+1×120 | 1.7 | 3.1 | 68.8 | 11860 | 0.0754 | 3.5 | 440 | 450 |
