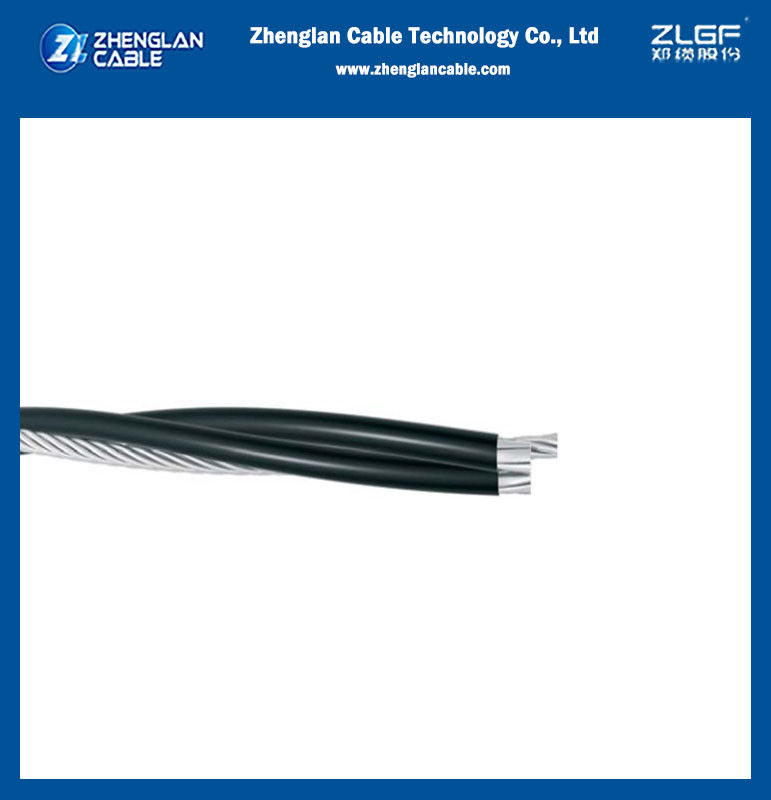

35KV ABC Aerial Bundled Cable Overhead Power Cable

35KV ABC Aerial Bundled Cable Overhead Power Cable
35KV ABC Aerial Bundled Cable Overhead Power Cable 35KV ABC Aerial Bundled Cable Overhead Power Cable

Large Image :  35KV ABC Aerial Bundled Cable Overhead Power Cable

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005;
Model Number: Overhead insulated cable Conductor AL
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 5-15 days
Payment Terms: L/C, T/T
Supply Ability: 15,000 km/Year

35KV ABC Aerial Bundled Cable Overhead Power Cable

Description
Insulation: XLPE Conductor Material: Aluminum
Application: Overhead Insulated Cable Conductor AL Prot. Tricapa 70mm2 35KV Spaced Aerial Cable ICEA S-66-524 Quality: 100% Test
Standard: IEC60502-2, ICEA S-66-524 Structure: AAC/SC/XLPE/XLPE
Voltage: 35KV Color: Black
High Light:

35KV ABC Aerial Bundled Cable

,

35KV Overhead Power Cable

,

ABC Overhead Power Cable

35KV ABC cable Aerial bundled cable Overhead power cable

APPLICATION :
For used in primary aerial cable on pole.
CLASSIFICATION :
Temperature :
- Normal operation 90°C.
- Emergency over load conditions 130°C.
- Short circuit conditions 250°C. Voltage rating :
25 kV phase to phase.
AC TESTING VOLTAGE :
38 kV for 5 minutes
REFERENCE STANDARD :
TIS 2341-2555 / MEA / PEA

35KV ABC cable Aerial bundled cable Overhead power cable structure:
Conductor : Compact stranded hard drawn Aluminium wire. Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)


35KV ABC cable Aerial bundled cable Overhead power cable parameters

Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
mm² No. mm mm mm mm Ω / km MΩ-km A kg / km
50 6 8.0 4.45 3.18 25.5 0.641 2,606 184 517
70 12 9.8 4.45 3.18 27.5 0.443 2,375 227 599
95 15 11.4 4.45 3.18 29.0 0.320 2,144 276 711
120 15 12.9 4.45 3.18 31.0 0.253 1,952 318 831
150 15 14.1 4.45 3.18 32.5 0.206 1,830 367 933
185 30 15.8 4.45 3.18 33.5 0.164 1,694 425 1,073
240 30 18.3 4.45 3.18 36.5 0.125 1,529 515 1,293


35KV ABC cable Aerial bundled cable Overhead power cable Images
35KV ABC Aerial Bundled Cable Overhead Power Cable 035KV ABC Aerial Bundled Cable Overhead Power Cable 1
