Product Details
Place of Origin: Jiaozuo, Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2020, ISO 14001:2020
Model Number: Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor
Payment & Shipping Terms
Minimum Order Quantity: 500-5000 meters
Price: 0.1-70usd/m
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80ton/week
Material: |
Aluminum, Galvanized Steel Wire |
Standard: |
IEC61089, En50182, ASTM B232/232M |
Nominal Cross S150ectional Area: |
Pigeon |
Characted: |
Bare Conductor |
Application: |
Overhead Transmission Use |
Port: |
Qingdao/Shanghai |
Material: |
Aluminum, Galvanized Steel Wire |
Standard: |
IEC61089, En50182, ASTM B232/232M |
Nominal Cross S150ectional Area: |
Pigeon |
Characted: |
Bare Conductor |
Application: |
Overhead Transmission Use |
Port: |
Qingdao/Shanghai |

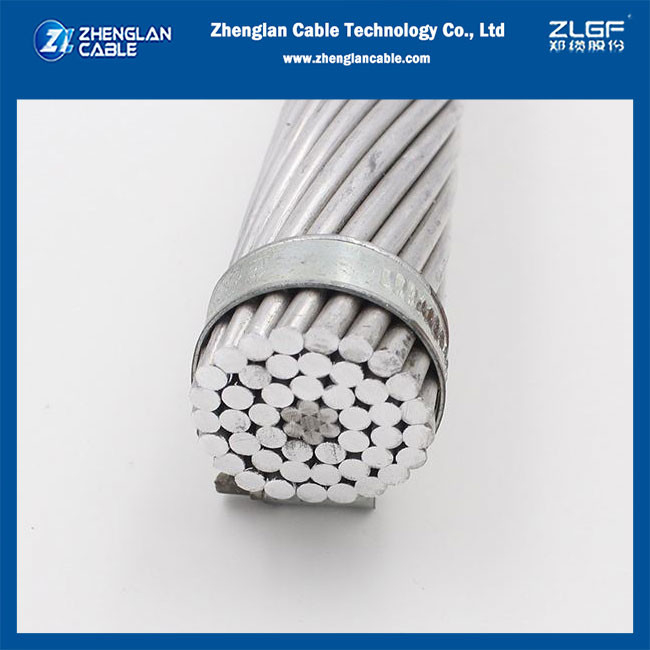

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor
Application:
Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor Electrical properties:
density@20ºC | Aluminium: 2.703 kg/dm |
Galvanised Steel: 7.80 kg/dm | |
Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
resistivity@20°C | Aluminium: Should not exceed 0.028264 |
linear Expansivity
|
Aluminium: 23 x10 (°C) |
Galvanised Steel: 11.5 x10 (1/°C) |
Service conditions:
Ambient Temperature | -5°C - 50°C |
Wind Pressure | 80 – 130kg/m |
Seismic Acceleration | 0.12 - 0.05g |
Isokeraunic level | 10 – 18 |
relative Humidity | 5 – 100% |
Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor other features:
Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA coductor CONSTRUCTION PARAMETERS
Code | Gage AWG or MCM |
Nominal Cross Section (mm²) |
Threading: N° of wires x Nominal Diameter (mm) |
Nominal External Diameter (mm) |
Nominal Net Weight (kg/km) |
Load Before Rupture (kN) |
Current Carryng Capacity |
Maximum Electrical Resistance 20ºC (Ohm/km) |
||||||
Aluminun | Total | Aluminun | Steel | Aluminun | Steel | Total | ||||||||
Turkey | 6 | 1,330 | 1,552 | 6x1,68 | 1x1,68 | 504 | 365 | 172 | 537 | 528 | 95 | 215,699 | ||
Thrush | 5 | 1,677 | 1,957 | 6x1,89 | 1x1,89 | 566 | 460 | 218 | 678 | 671 | 115 | 171,067 | ||
Swan | 4 | 2,115 | 2,471 | 6x2,12 | 1x2,12 | 636 | 581 | 275 | 856 | 839 | 130 | 135,640 | ||
Swanate | 4 | 2,115 | 2,647 | 7x1,96 | 1x2,61 | 653 | 580 | 416 | 996 | 1,052 | 130 | 135,640 | ||
Swallow | 3 | 2,667 | 3,112 | 6x2,38 | 1x2,38 | 714 | 732 | 346 | 1,078 | 1,022 | 150 | 107,566 | ||
Sparrow | 2 | 3,359 | 3,919 | 6x2,67 | 1x2,67 | 801 | 922 | 436 | 1,358 | 1,268 | 175 | 85,406 | ||
Sparete | 2 | 3,359 | 4,209 | 7x2,47 | 1x3,30 | 824 | 920 | 665 | 1,585 | 1,613 | 175 | 85,406 | ||
Robin | 1 | 4,241 | 4,948 | 6x3,00 | 1x3,00 | 900 | 1,164 | 550 | 1,714 | 1,581 | 200 | 67,644 | ||
Raven | 1/0 | 5,352 | 6,244 | 6x3,37 | 1x3,37 | 1,011 | 1,468 | 694 | 2,162 | 1,935 | 230 | 53,602 | ||
Quail | 2/0 | 6,733 | 7,855 | 6x3,78 | 1x3,78 | 1,134 | 1,847 | 873 | 2,720 | 2,359 | 265 | 42,608 | ||
Pigeon | 3/0 | 8,512 | 9,930 | 6x4,25 | 1x4,25 | 1,275 | 2,335 | 1,103 | 3,438 | 2,941 | 310 | 33,703 | ||
Penguin | 4/0 | 10,720 | 1,251 | 6x4,77 | 1x4,77 | 1,431 | 2,941 | 1,393 | 4,334 | 3,709 | 350 | 26,761 | ||
Waxwing | 2,668 | 13,519 | 1,425 | 18x3,09 | 1x3,09 | 1,545 | 3,722 | 584 | 4,306 | 3,027 | 430 | 21,325 | ||
Partridge | 2,668 | 13,519 | 1,569 | 26x2,57 | 7x2,00 | 1,628 | 3,738 | 1,718 | 5,456 | 5,025 | 440 | 21,430 |
