Darien Bare Aluminum Alloy Conductor CABO DE ALUMÍNIO NU CAL Overhead

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: Bare aluminum alloy conductor Darien CABO DE ALUMÍNIO NU CAL (AAAC) overhead bare conductor

Payment & Shipping Terms

Minimum Order Quantity: 3tons

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 100KM/Month

Get Best Price
High Light:

Darien Bare Aluminum Alloy Conductor

,

559.5 MCM Bare Aluminum Alloy Conductor

,

AWG Overhead Bare Aluminum Alloy Conductor

Material:
Aluminum Alloy
Size:
559.5MCM
Quality:
100% Test
Standard::
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B399,CSA C49
Insulated:
No
Certificated:
3C,ISO 9001:2015,ISO 14001:2005, CE
Material:
Aluminum Alloy
Size:
559.5MCM
Quality:
100% Test
Standard::
Construction As Per DIN 48201,BS 215 ,IEC 60189,ASTM-B399,CSA C49
Insulated:
No
Certificated:
3C,ISO 9001:2015,ISO 14001:2005, CE
Darien Bare Aluminum Alloy Conductor CABO DE ALUMÍNIO NU CAL Overhead

Bare aluminum alloy conductor Darien CABO DE ALUMÍNIO NU CAL (AAAC) overhead bare conductor



Application

Bare aluminum alloy conductor Darien CABO DE ALUMÍNIO NU CAL (AAAC) overhead bare conductor are normally used in overhead power transmission lines.
Bare aluminum alloy conductor Darien CABO DE ALUMÍNIO NU CAL (AAAC) overhead bare conductor is a concentrically stranded conductor composed of one or more layers (crowns) of 6201-T81 aluminum alloy wires.
It was developed to fill the need for an economical conductor for aerial application, where greater mechanical strength is required than that obtained with CA aluminum conductor and greater corrosion resistance than aluminum cable with CAA steel core.
6201-T81 alloy conductors are harder, therefore, have greater abrasion resistance than 1350-H19 aluminum conductors.
However, the same precautions taken when handling AC and AC conductors must be observed when handling CAL conductors.
The stringing combinations of CAL cables are similar to those of AC cables.



Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized



Bare aluminum alloy conductor Darien CABO DE ALUMÍNIO NU CAL (AAAC) overhead bare conductor ​ Technical parameters



Código Bitola AWG ou MCM Encordoamento: n° de fios x diâmetro nominal Diâmetro Externo Nominal (mm²) Peso Líquido Nominal (kg/km) Carga de Ruptura (kN) Capacidade de Corrente Resistência Elétrica Max. a 20ºC (Ohm/km)
Akron 30,58 7 x 1,68 5,04 42,7 4,91 96 215,878
Altron 48,69 7 x 2,12 6,36 68 7,82 130 135,568
Ames 77,47 7 X 2,67 8,01 108,2 12,45 175 0,85468
Azusa 123,3 7 X 3,37 10,11 172,2 19,82 237 0,5365
Anaheim 155,4 7 X 3,78 11,34 217,1 23,95 275 0,42643
Amherst 195,7 7 X 4,25 12,75 273,4 30,16 320 0,33733
Alliance 246,9 7 X 4,77 14,31 344,9 38,05 371 0,26779
Butte 312,8 19 X 3,26 16,3 436,9 48,72 433 0,21252
Canton 394,5 19 x 3,66 18,3 551,1 58,9 504 0,16758
Cairo 465,4 19 x 3,98 19,9 650,2 69,48 560 0,14243
Darien 559,5 19 x 4,36 21,8 781,6 83,54 630 0,11863
Elgin 652,4 19 x 4,71 23,55 911,4 97,41 697 0,10162
Flint 740,8 37 x 3,59 25,13 1034,9 108,24 754 0,08944



Bare aluminum alloy conductor Darien CABO DE ALUMÍNIO NU CAL (AAAC) overhead bare conductor product Images

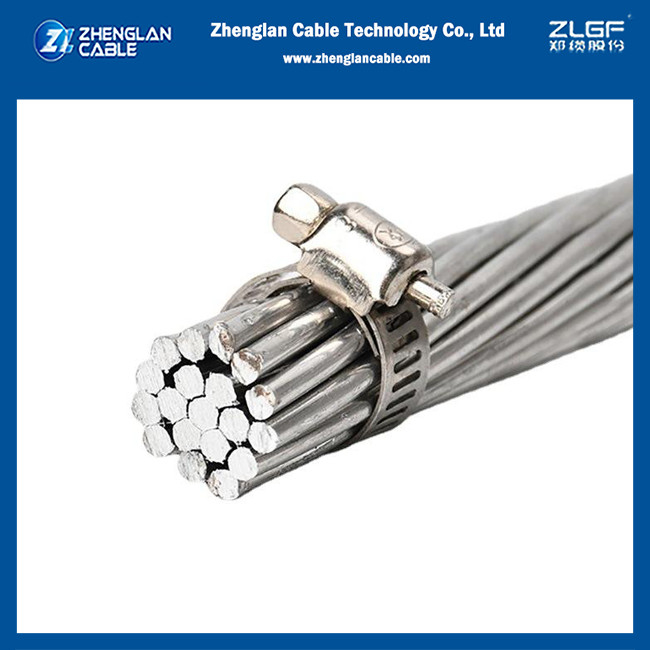

AAAC, CAL

Darien Bare Aluminum Alloy Conductor CABO DE ALUMÍNIO NU CAL Overhead 1



Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
