AAC Tulip Bare Aluminum Conductor H1350 Overhead Bare 336.4MCM

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C，ISO 9001:2015，ISO 14001:2005

Model Number: AAC Tulip Bare Aluminum conductor H1350 Overhead Bare conductor 336.4MCM

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 20,000 ton/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                AAC Tulip Bare Aluminum conductor, H1350 Bare Aluminum conductor, Bare Aluminum conductor 336.4 MCM


Material:	Aluminium	Size:	336.4MCM
Quality:	100% IEC Standards Test	Standard::	ASTM231/231M
Brand:	Zhenglan Cable	Stranding:	19/3.38mm

Material:	Aluminium
Size:	336.4MCM
Quality:	100% IEC Standards Test
Standard::	ASTM231/231M
Brand:	Zhenglan Cable
Stranding:	19/3.38mm

AAC Tulip Bare Aluminum Conductor H1350 Overhead Bare 336.4MCM

AAC Tulip Bare Aluminum conductor H1350 Overhead Bare conductor 336.4MCM

Application

Bare AAC cable Aluminum conductor All aluminum conductor Bare ASC conductor ASTM 231/231M is a type of stranded 1350 aluminum conductors and is primarily used for overhead transmission and distribution services, where strength of standard ACSR cables is not required. Class AA for bare conductors used in overhead lines. Class A for conductors to be covered with weatherresistant materials and for bare conductors where greater flexibility is required.

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum
Jacket: none
Product name: Aluminum Conductor
Quality: 100% test
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

STANDARD

Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

AAC Tulip Bare Aluminum conductor H1350 Overhead Bare conductor 336.4MCM Technical data sheet

Código	Bitola AWG ou MCM	Seção Nominal (mm²)	Encordoamento: N° de fios x Diâmetro Nominal (mm)	Diâmetro Externo Nominal (mm)	Peso Líquido Nominal (kg/km)	Carga de Ruptura (kN)	Capacidade de Corrente	Resistência Elétrica Max. a 20ºC (Ohm/km)
Peachbell	6	13.30	7 x 1,55	4.65	36.5	2.47	95	2.16762
Rose	4	21.15	7 x1,96	5.88	58.2	3.94	130	1.36309
Iris	2	33.62	7 x 2,47	7.41	92.5	5.95	175	0.85750
Pansy	1	42.41	7 x 2,78	8.34	117.1	7.01	200	0.697977
	1/0	53.52	7 x 3,12	9.36	147.6	8.73	235	0.53866
Aster	2/0	67.44	7 x 3,50	10.50	185.7	10.99	270	0.42748
Phlox	3/0	85.02	7 x 3,93	11.79	234.1	13.45	315	0.33909
Oxlip	4/0	107.22	7 x 4,41	13.23	294.7	16.92	365	0.26888
Sneezewort	250.0	126.68	7 x 4,80	14.40	349.3	20.06	405	0.22757
Valerian	250.0	126.68	19 x 2,91	14.55	348.5	20.57	405	0.22757
Daisy	266.8	135.19	7 x 4,96	14.88	373.0	21.43	420	0.21325
Laurel	266.8	135.19	19 x 3,01	15.06	372.8	22.00	425	0.21325
Peony	300.0	152.01	19 x 3,19	15.95	418.8	24.02	455	0.18965
Tulip	336.4	170.45	19 x 3,38	16.90	470.1	26.97	495	0.16914
Daffodil	350.0	177.34	19 x 3,45	17.25	489.7	28.08	506	0.16256
Canna	397.5	201.41	19 x 3,68	18.40	557.2	31.95	550	0.14314
Goldentuft	450.0	228.02	19 x 3,91	19.55	628.9	35.00	545	0.12643
Cosmos	477.0	241.69	19 x 4,02	20.10	665.0	37.01	615	0.11928
Syringa	477.0	241.69	37 x 2,88	20.16	664.5	38.38	615	0.11928
Zinnia	500.0	253.35	19 x 4,12	20.60	698.4	38.87	635	0.11379
Hyacinth	500.0	253.35	37 x 2,95	20.65	697.3	40.27	635	0.11379

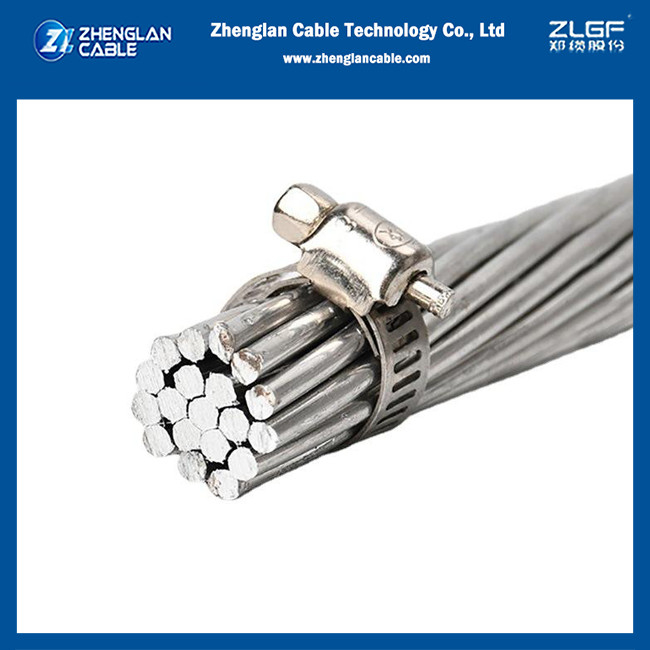

AAC Tulip Bare Aluminum conductor H1350 Overhead Bare conductor 336.4MCM product image

AAC Tulip Bare Aluminum Conductor H1350 Overhead Bare 336.4MCM 0

bare conductor packing

Why you choose us?

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
