Product Details
Place of Origin: China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 4mm2 H1Z2Z2-K
Payment & Shipping Terms
Minimum Order Quantity: 5000meters
Price: 0.1-80USD/M
Packaging Details: 200M/ROLL
Delivery Time: 7-15DAY
Payment Terms: T/T, L/C, ,Western Union
Supply Ability: 60000M/DAY
Material: |
Cu |
Insulation: |
XLPO |
Outer Sheath: |
XLPO |
Size: |
4mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV |
Material: |
Cu |
Insulation: |
XLPO |
Outer Sheath: |
XLPO |
Size: |
4mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV |
Solar cable RED 4mm2 DC1.5KV PV Cable 200m/roll Solar panel cable general infor
Solar cables are designed to be used in photovoltaic power supply systems (cable interconnections between the solar panels and the other components of the photovoltaic system) and similar applications for free hanging, movable, fixed installation and buried in ground in constructional covered systems. These cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture.
Cable Construction
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
Solar cable RED 4mm2 DC1.5KV PV Cable 200m/roll Solar panel cable CHARACTERISTICS
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
Solar cable RED 4mm2 DC1.5KV PV Cable 200m/roll Solar panel cable specification
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1x16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1x25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1x35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |

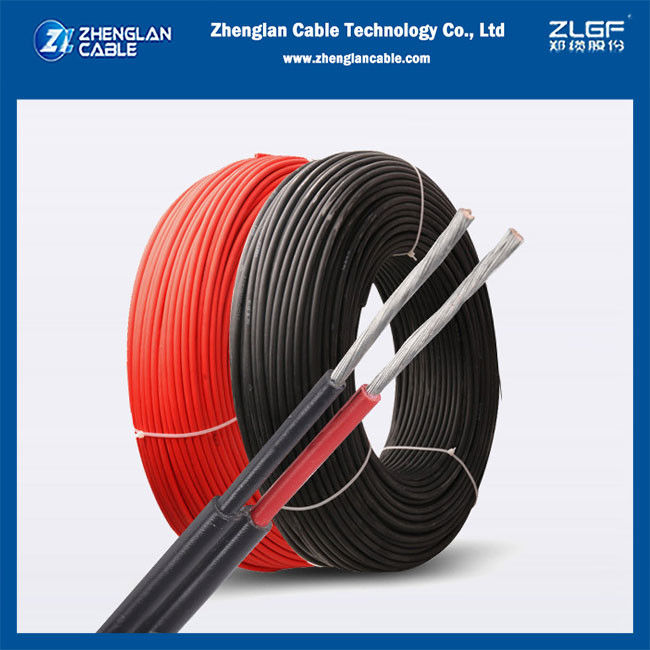

Solar cable RED 4mm2 DC1.5KV PV Cable 200m/roll Solar panel cable images
